S18-2 Series: Fixed Field (S18-2VNFF50-2M-808492)

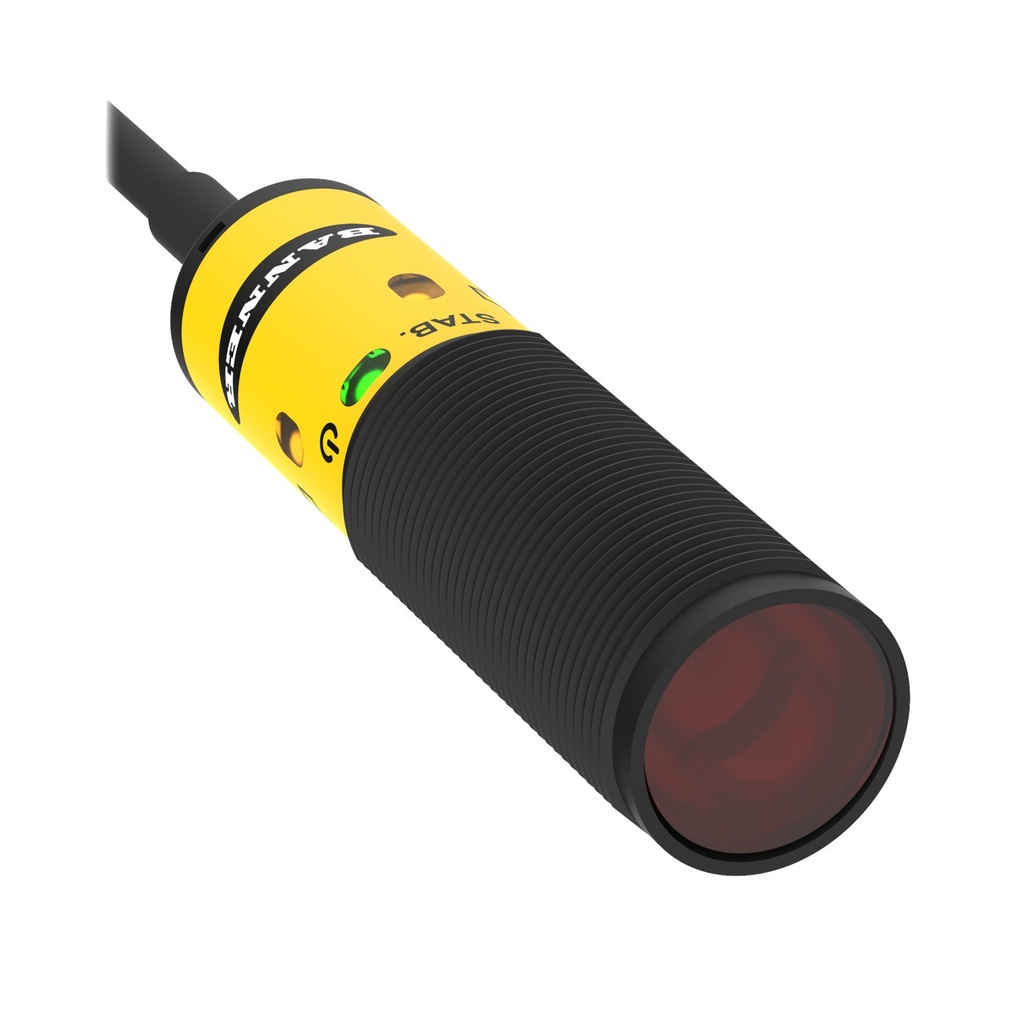

Representative photo. Please check item description for details.

S18-2 Series: Fixed Field (S18-2VNFF50-2M-808492)

https://www.branom.com/web/image/product.template/204408/image_1920?unique=c26756c
(0 review)

Features:

    S18-2 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Outputs: Complementary NPN; Connection: 4-pin Euro 4-conductor 2 m PVC Pigtail
    • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam Wavelength: 624
  • Housing Style: Barrel
  • Max Sensing Distance: 50 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • Indicator Type: LED

$ 250.00 250.0 USD $ 250.00

$ 250.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
