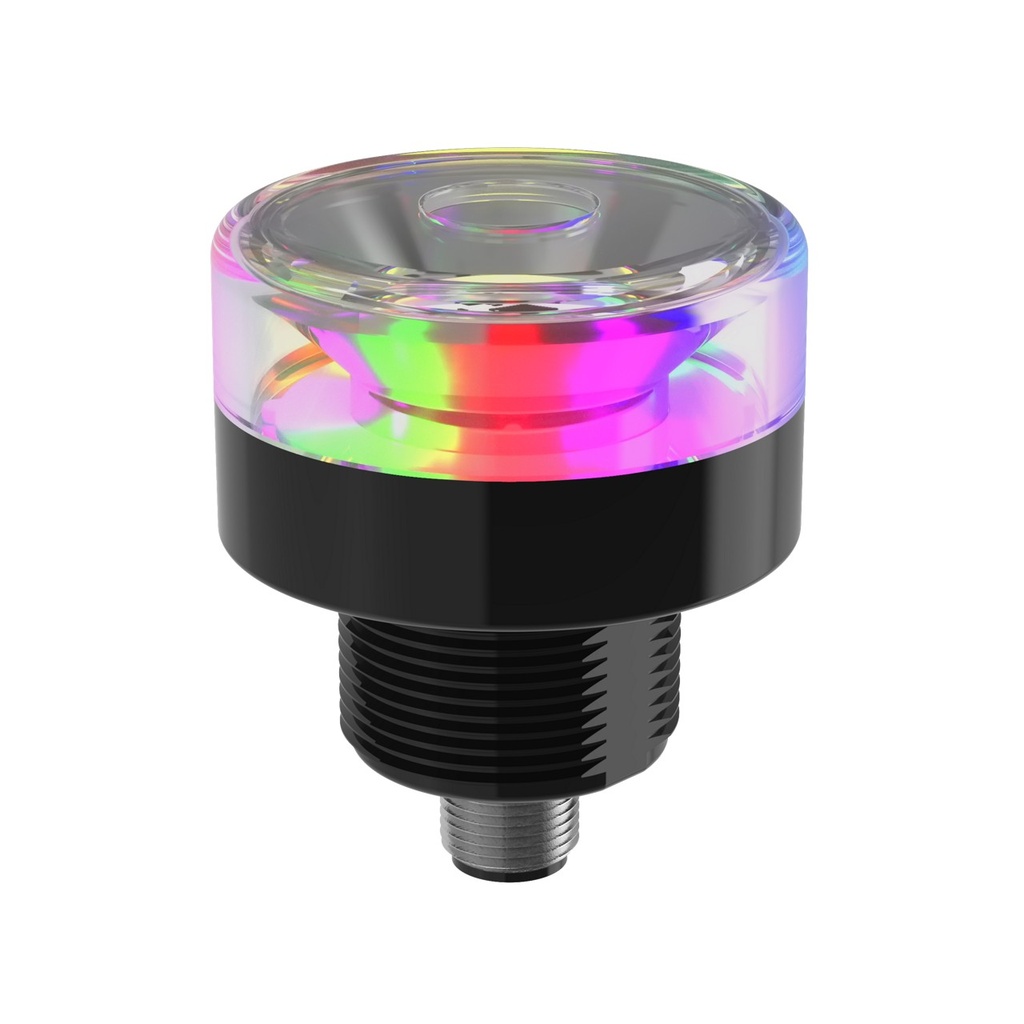

K50 Pro Series: Beacon Light (K50PBLRGB7Q)
Representative photo. Please check item description for details.

K50 Pro Series: Beacon Light (K50PBLRGB7Q)

https://www.branom.com/web/image/product.template/203645/image_1920?unique=c26756c
(0 review)

Features:

    K50 Pro Series: Beacon Light; 7-color RGB Indicator; Voltage: 10
  • 30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; Colors: Multicolor; Euro 5-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 220 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Flat Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 59.8 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Color Option 3: Blue
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 6.8
  • Animation Option 3: Programmable
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Color Option 7: Cyan
  • Color Option 1: Red
  • Animation Option 2: Programmable
  • Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
  • Housing Color: Black
  • Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Programmable
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 14
  • Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
  • Lumens Color 2: 15.3
  • Lumens Color 3: 3.3
  • Product Size (mm): 50 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 530 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 0.469, 0.466
  • Color 6 - Wavelength/Color Temp/Coordinates: 0.399, 0.189
  • Color Option 5: White
  • Color 5 - Wavelength/Color Temp/Coordinates: 5950K
  • Lumens Color 5: 20.9
  • Color 7 - Wavelength/Color Temp/Coordinates: 0.159, 0.337
  • Lumens Color 4: 17.2
  • Lumens Color 6: 8.6
  • Lumens Color 7: 17
  • Wire Selectable Function: Programmable
  • Color Option 6: Magenta
  • Feature: I/O Block Compatible: Yes
  • Dimming Option: Programmable
  • Indication Intensity: High Brightness & Daylight Visible
  • Animation Option 5: Programmable
  • Animation Option 4: Programmable
  • Animation Option 6: Programmable
  • Animation Option 7: Programmable
  • Connection Type: Integral QD
  • NEMA / UL: UL 4X/13

$ 125.00 125.0 USD $ 125.00

$ 125.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
