World-Beam Qs18 Series: 13 Beam Sensor Array (SAB-998RB1LP13-Q5E)
Representative photo. Please check item description for details.

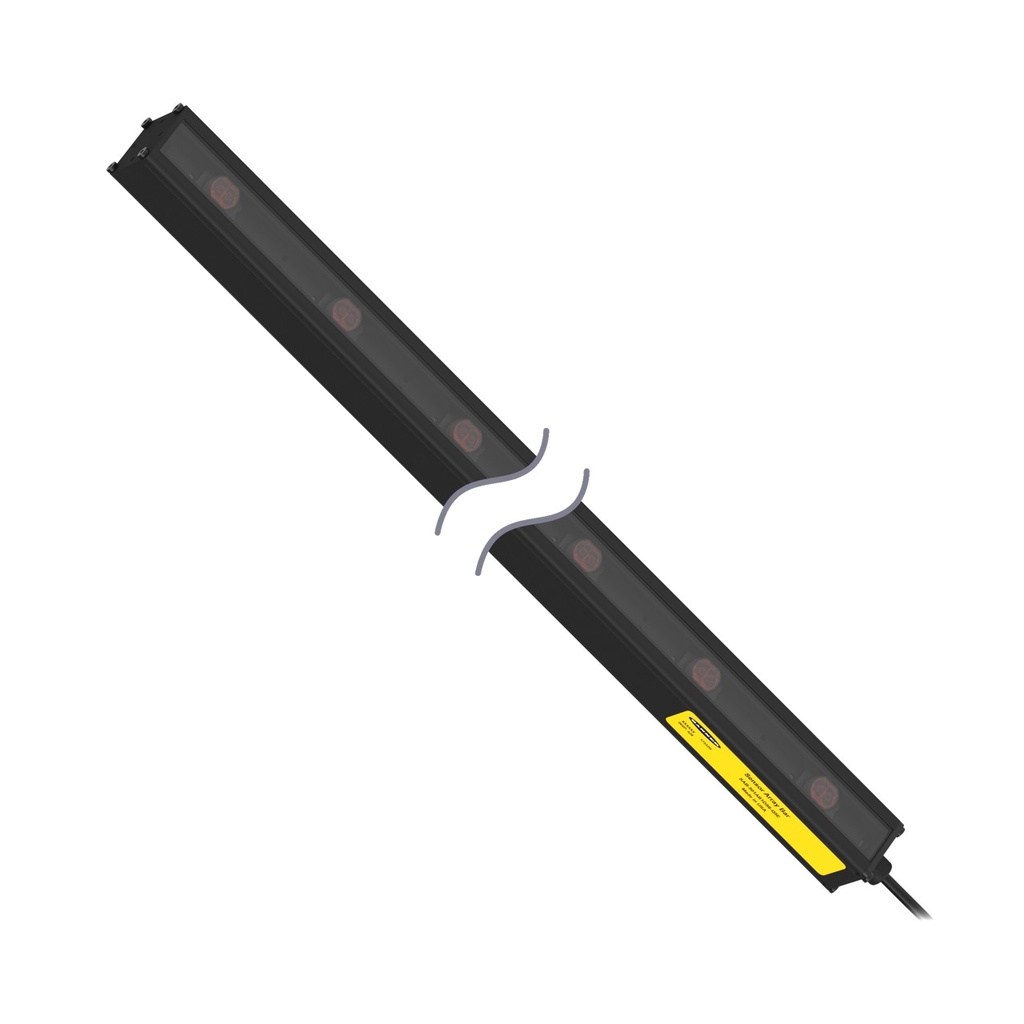

World-Beam Qs18 Series: 13 Beam Sensor Array (SAB-998RB1LP13-Q5E)

https://www.branom.com/web/image/product.template/204472/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: 13 Beam Sensor Array; Polarized Retro; Range: 1m; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Dark Operate; Euro 150 mm (6 in) 4-pin Quick-Disconnect Pigtail
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP50
  • Housing Style: Sensing Array Bar
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Polarized Retro
  • Beam Spacing: 76.2 mm
  • Max Relative Humidity: 95% @ 50 °C
  • Number of Beams: 13
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: Bipolar (NPN & PNP)
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Distance to First Beam: 42.0 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.2 m
  • Indicator Type: Indicator LED
  • Max Sensing Range: 1000 mm
  • Slot Depth/Array Length (mm): 998 mm
  • Slot Overall Depth (mm): 38 mm

$ 1,137.00 1137.0 USD $ 1,137.00

$ 1,137.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
