8.5Ft Cable (T18-2NAES-808380)

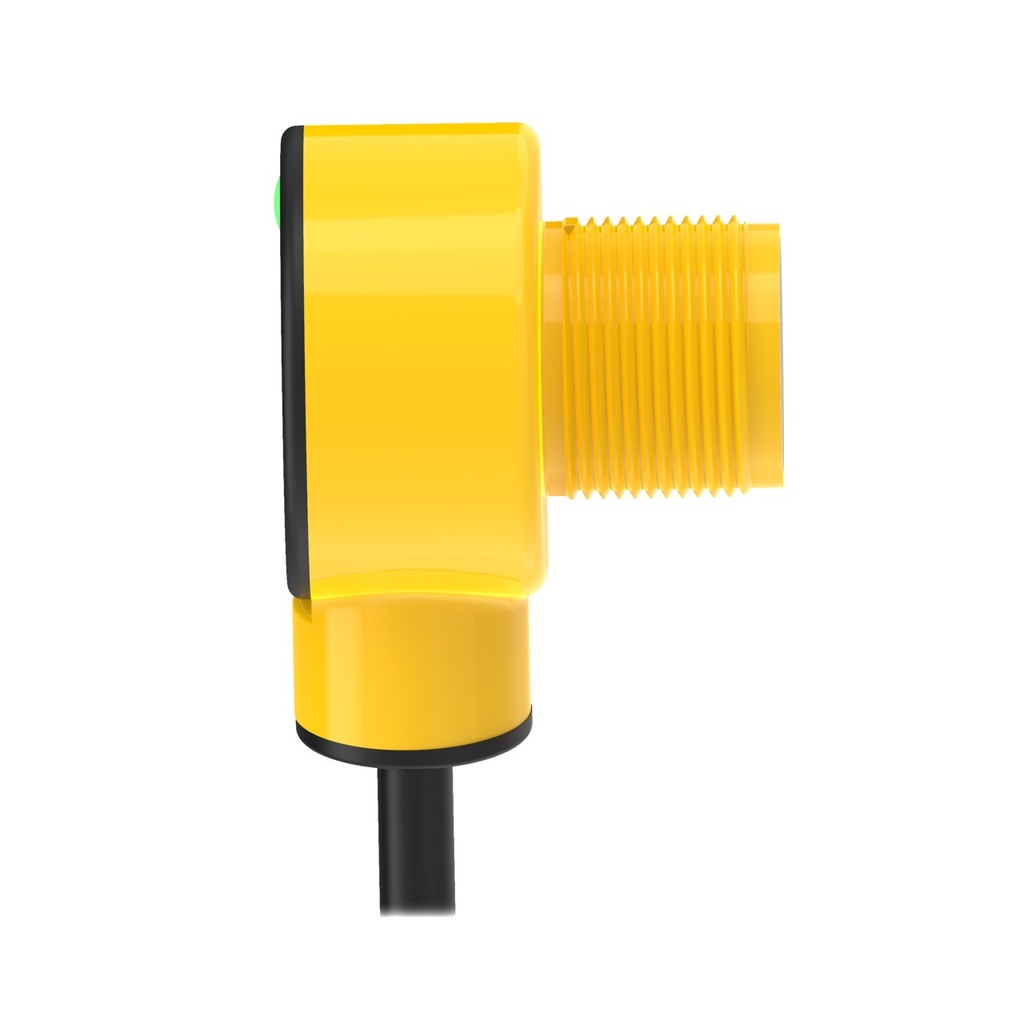

Representative photo. Please check item description for details.

8.5Ft Cable (T18-2NAES-808380)

https://www.branom.com/web/image/product.template/204630/image_1920?unique=c26756c
(0 review)

Features:

    T18-2NAES-808380 8.5FT CABLE
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Ingress Protection: IP67/68/69
  • Repeatability (µs): 170
  • Sensing Beam Wavelength: 624
  • Housing Style: Barrel
  • Max Sensing Distance: 25000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Other
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED
