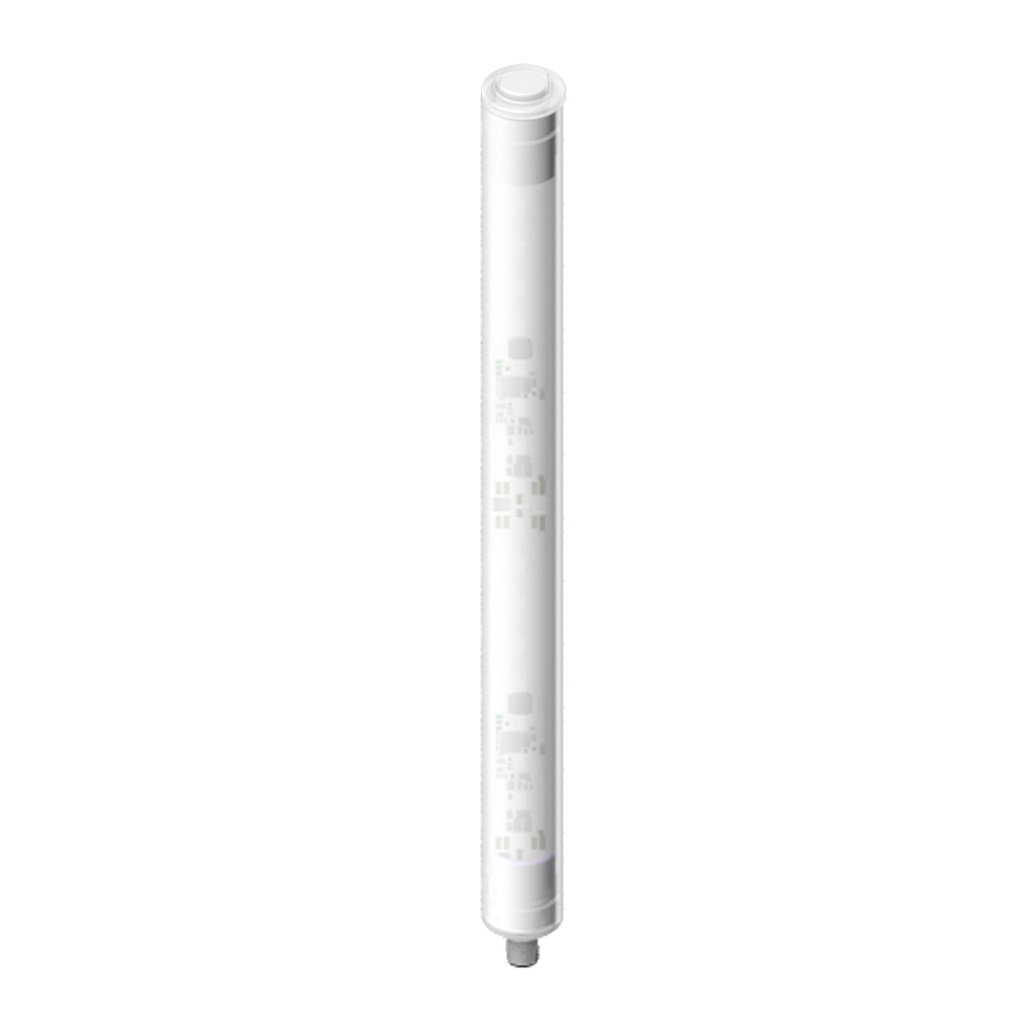

Wls27 Two Segment Light Strip (WLS27XWBX2S-0285DS24Q)
Representative photo. Please check item description for details.

Wls27 Two Segment Light Strip (WLS27XWBX2S-0285DS24Q)

https://www.branom.com/web/image/product.template/205787/image_1920?unique=c26756c
(0 review)

Features:

    WLS27 Two Segment Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White Blue; Non-Cascadable; Euro 4-pin Integral Connector
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 400 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67/69K
  • Housing Style: Linear Strip - Segmented
  • Housing Material_: FDA Copolyester
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 27.0 x 351.5 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 24 VDC
  • Color Option 2: Blue
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Daylight White
  • Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 2
  • Product Size (mm): 27 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 2
  • Illuminated Length (LxWxH): 285.0 mm
  • Connection Type: Integral QD
  • Cord/Cable Length: 2 m
