Representative photo. Please check item description for details.

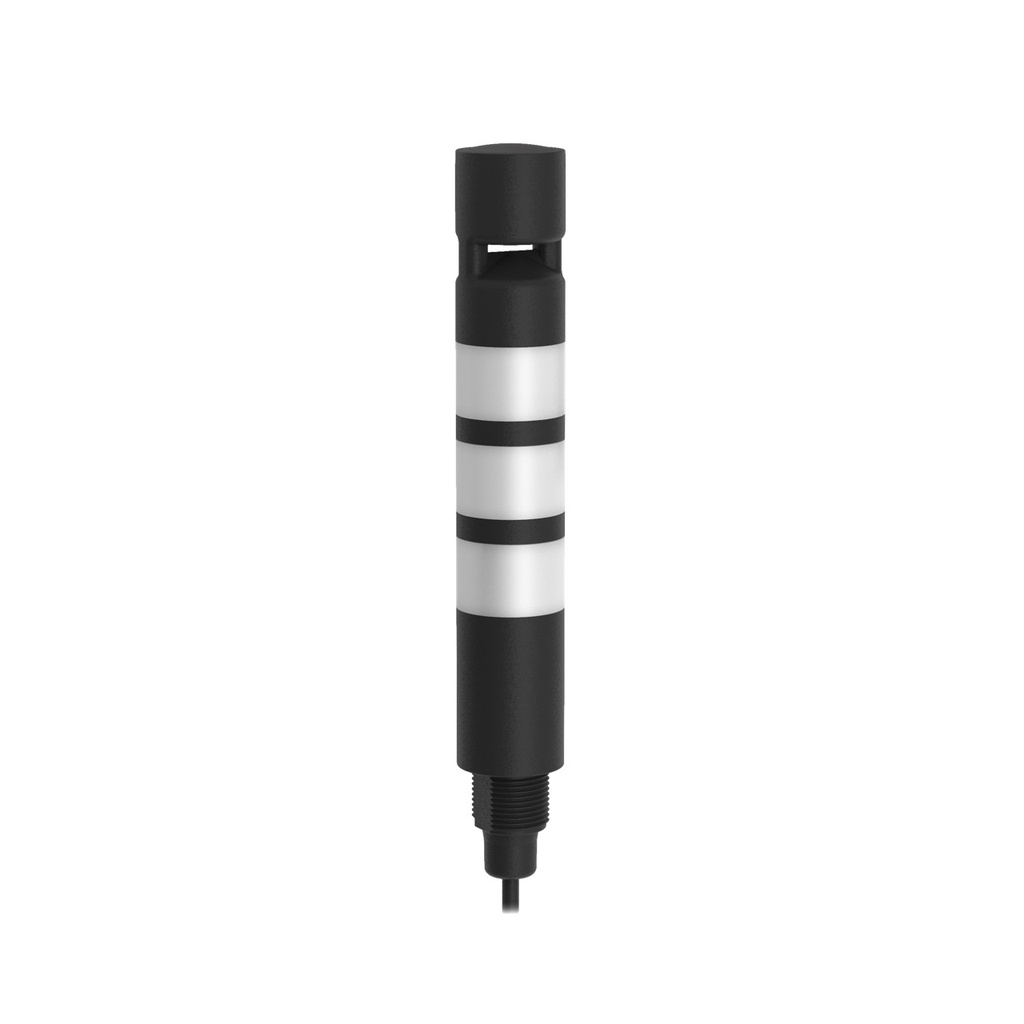

Tl30 Basic Tower Light (TL30BWYGXXAXC1)
Features:
- TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: White Yellow Green; 1.2 m (4 ft) Cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 40 mA
- Max Current - Audible Alarm (mA): 20 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP65
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 90% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 30.0 x 190.6 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Green
- Max Audible Intensity: 90 dB @ 1 m
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: No
- Lumens Color 1: 7.5
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Cool White
- Color 1 - Wavelength/Color Temp/Coordinates: 5500K
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Audible Operating Frequency (kHz): 2.8
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 525 nm
- Lumens Color 2: 6.5
- Lumens Color 3: 7.5
- Product Size (mm): 30 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 592 nm
- Number of Input Pins/Conductors: 5
- Input Type: Bimodal (PNP/NPN)
- Max Op. Relative NC Humidity: 90% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M22 x 1.5
- Max Input Response Time (ms): 1 ms
- Feature: Chemical Resistant: No
- Audible Alarm Type: Continuous
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 4
- Connection Type: Cable
- NEMA / UL: UL 4X
- Cord/Cable Length: 1.2 m
