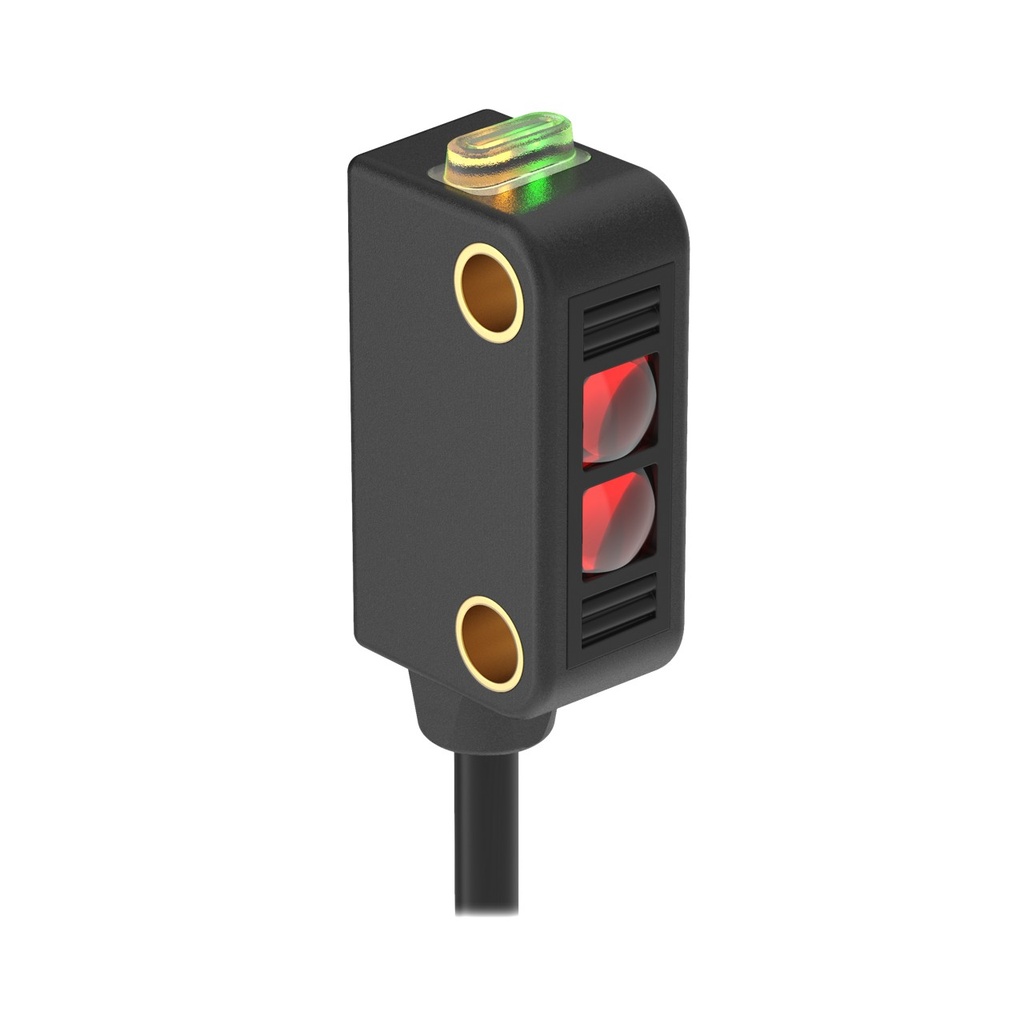

World-Beam Dq12 Series: Emitter (DQ126EQ3)
Representative photo. Please check item description for details.

World-Beam Dq12 Series: Emitter (DQ126EQ3)

https://www.branom.com/web/image/product.template/202054/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM DQ12 Series: Emitter; Range: 3 m; Input 10-30 V dc; Output: Not Applicable
  • No Outputs; Pico(M8) 3-pin 150 mm (6 in) Pigtail QD;Black Housing
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 120 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 125
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Polyamide
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Output Response Time: 1.3 ms ON/0.7 ms OFF
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 70.00 70.0 USD $ 70.00

$ 70.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM DQ12 Series: Emitter; Range: 3 m; Input 10-30 V dc; Output: Not Applicable
    • No Outputs; Pico(M8) 3-pin 150 mm (6 in) Pigtail QD;Black Housing
      • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 55 °C
    • Lens Material: Polycarbonate
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 120 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 125
    • Sensing Beam: Visible Red LED
    • Sensing Beam Wavelength: 645
    • Housing Style: Rectangular
    • Max Sensing Distance: 3000 mm
    • Sensing Mode (Detailed): Emitter
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: Polyamide
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M8
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Emitter
    • Feature: Water Detection: No
    • Number of Pins: 2
    • Output Response Time: 1.3 ms ON/0.7 ms OFF
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • Cord/Cable Length: 0.15 m
    • Indicator Type: LED
