Q2X Series: Adjustable Field Sensor (Q2XAPAF150-2M)

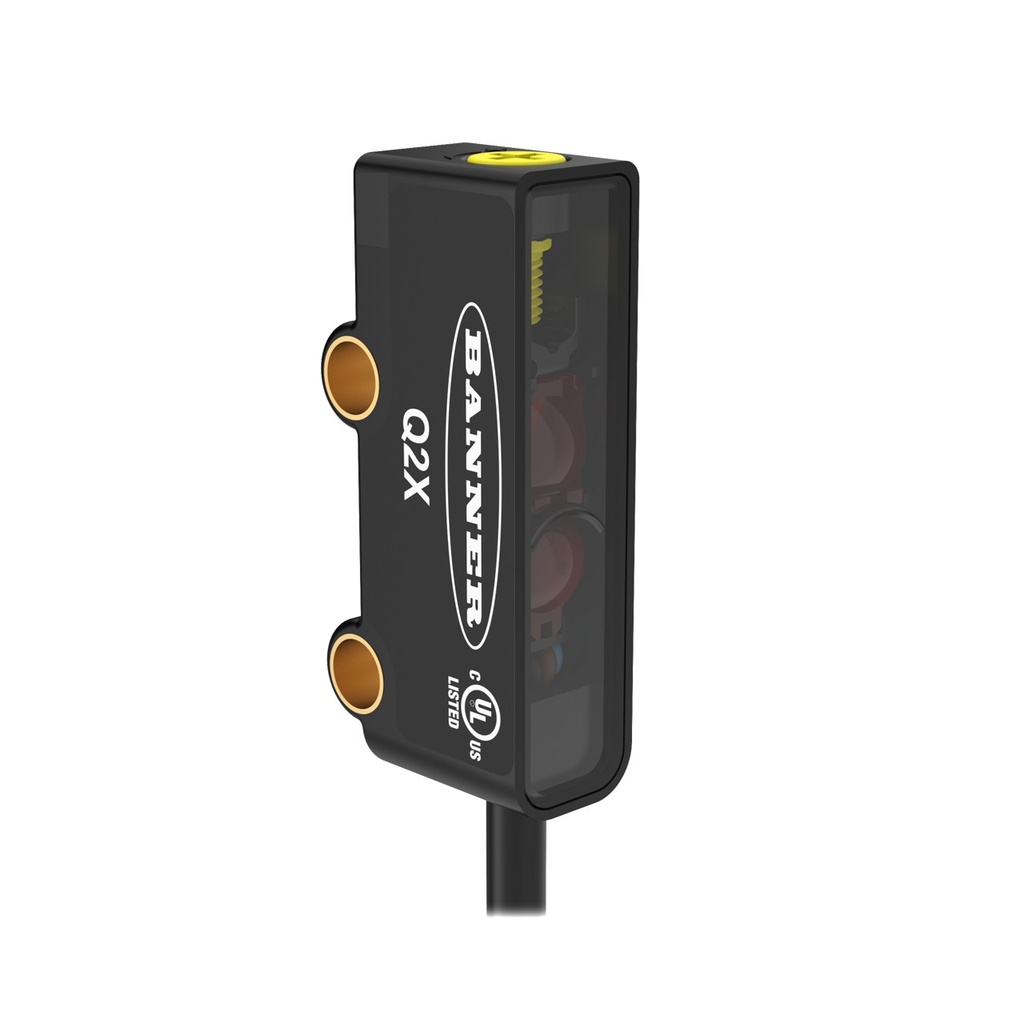

Representative photo. Please check item description for details.

Q2X Series: Adjustable Field Sensor (Q2XAPAF150-2M)

https://www.branom.com/web/image/product.template/204091/image_1920?unique=c26756c
(0 review)

Features:

    Q2X Series: Adjustable Field Sensor ; Range: 18-150 mm, Input 10-30 V dc; Output: LO (Light Operate), 1 PNP; 2 m (6.5 ft) Cable
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 120 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 125
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 150 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS/Polycarbonate
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 0.85 ms
  • Operation: Light Operate
  • Adjustments: Mechanical Screw
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 146.00 146.0 USD $ 146.00

$ 146.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
