World-Beam Qs18 Series: Receiver (QS18EK6RVQ8)

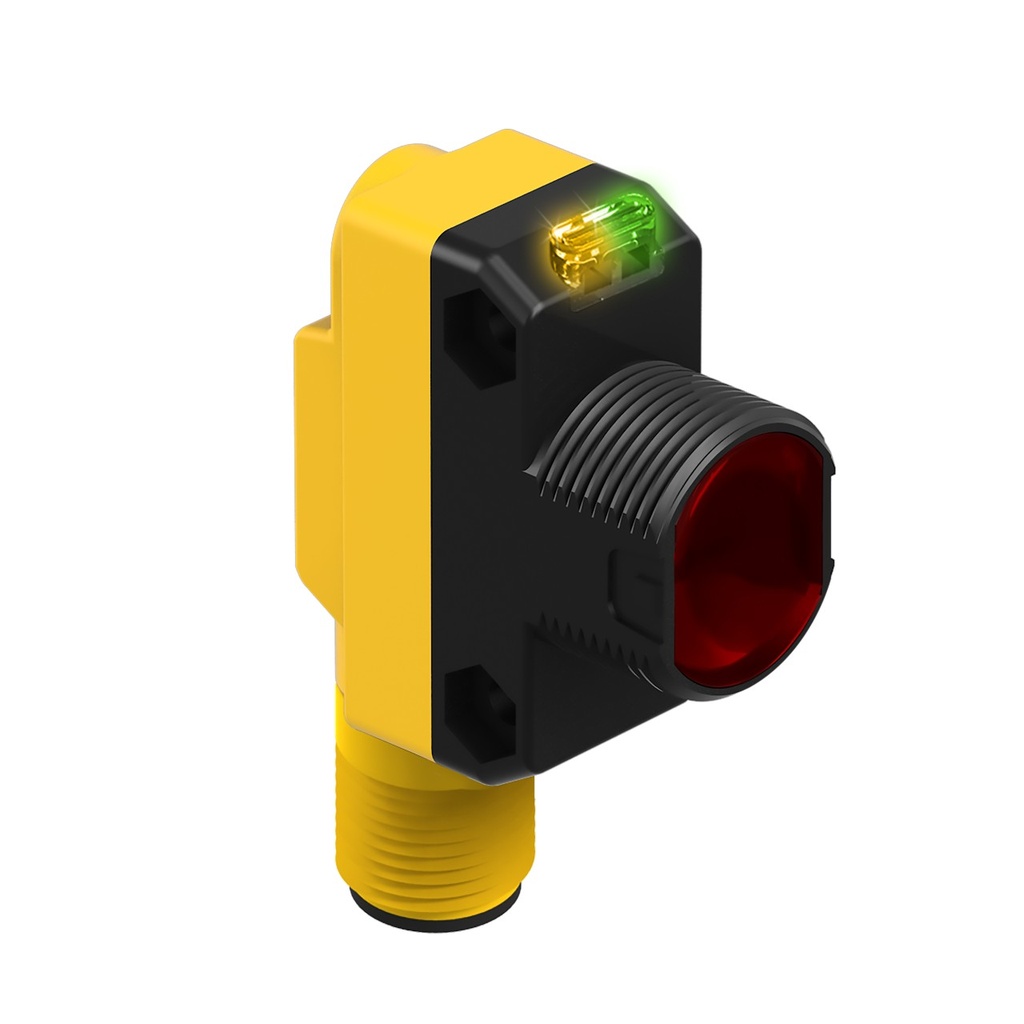

Representative photo. Please check item description for details.

World-Beam Qs18 Series: Receiver (QS18EK6RVQ8)

https://www.branom.com/web/image/product.template/204308/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: Receiver; Range: 20m; Input: 10-30V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; Integral M12 Euro-style Quick-Disconnect
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam: Visible Red LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1 ms ON/1 ms OFF
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete & Serial
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 105.00 105.0 USD $ 105.00

$ 105.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM QS18 Series: Receiver; Range: 20m; Input: 10-30V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; Integral M12 Euro-style Quick-Disconnect
      • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 100
    • Sensing Beam: Visible Red LED
    • Housing Style: Rectangular w/M18 Mount
    • Max Sensing Distance: 20000 mm
    • Sensing Mode (Detailed): Receiver
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: ABS
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: Yes
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Receiver
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 1 ms ON/1 ms OFF
    • Operation: Light/Dark Operate
    • Adjustments: Teach Button
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete & Serial
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
