World-Beam Qs18 Series: Diffuse (QS18VP6DL-RJ11-150)

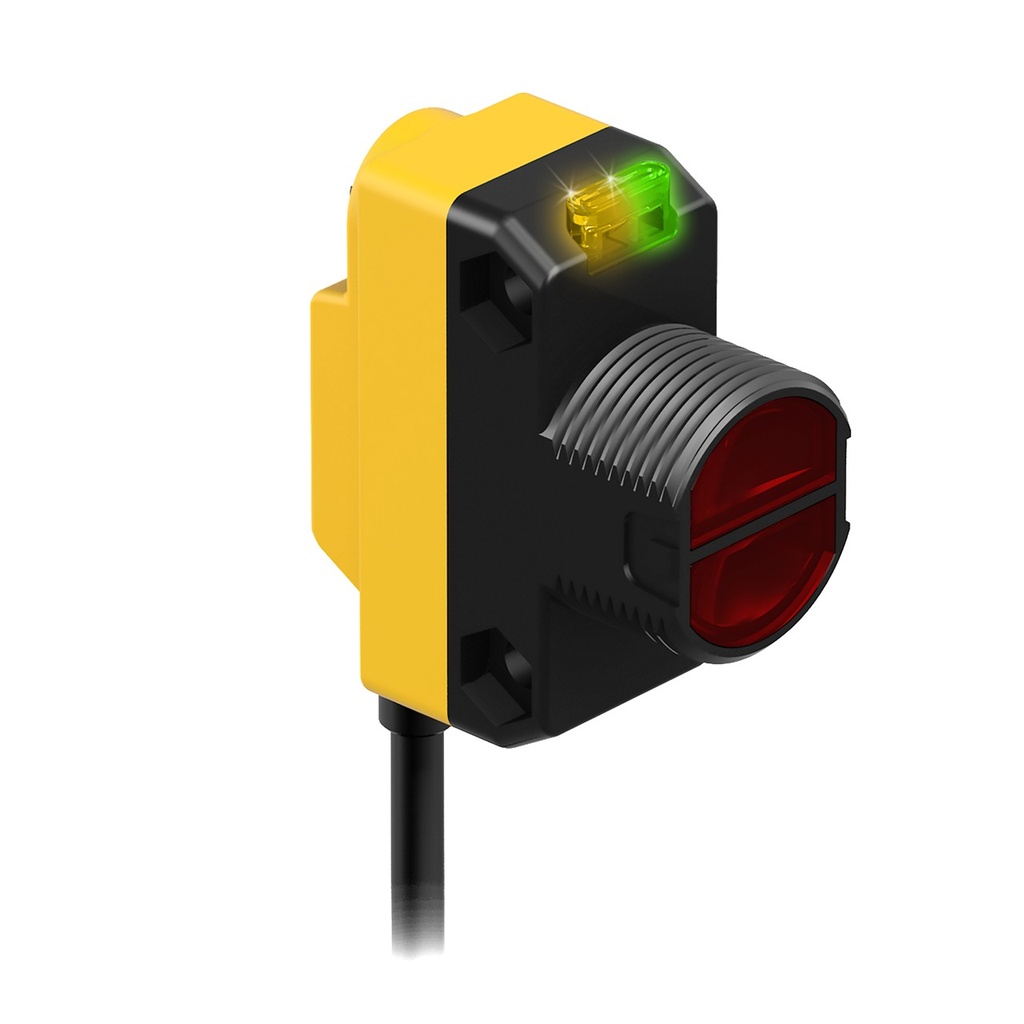

Representative photo. Please check item description for details.

World-Beam Qs18 Series: Diffuse (QS18VP6DL-RJ11-150)

https://www.branom.com/web/image/product.template/204303/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid State PNP; 150 mm (6 inch) Pigtail with RJ11 Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 90
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 940
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 600 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: RJ11
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.85 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED
