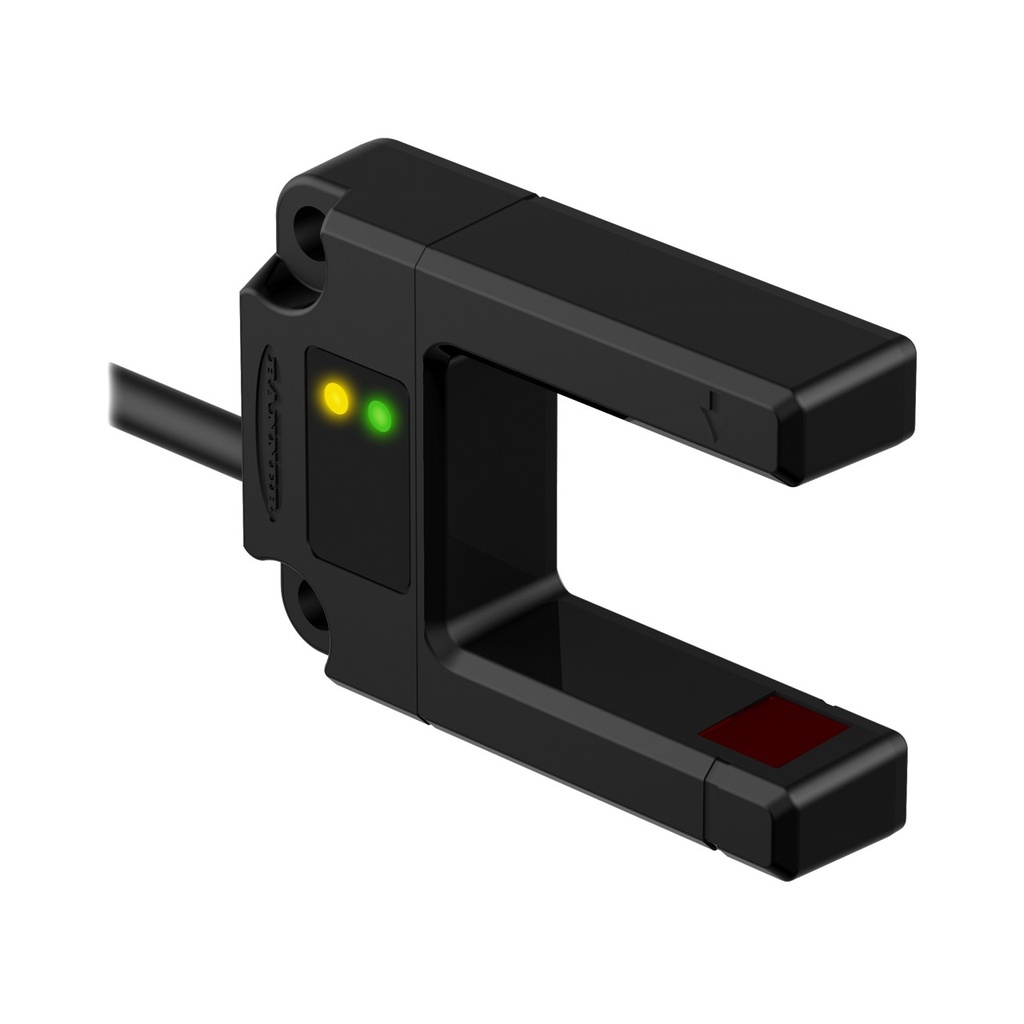

Representative photo. Please check item description for details.

SLO Series Slot Sensor Slot Width: 30.2mm (1.19in) (SLO30VP6YQPMADO)

https://www.branom.com/web/image/product.template/50885/image_1920?unique=c26756c
(0 review)

Features:

  • SLO30VP6YQPMADO SLO Series Slot Sensor Slot Width: 30.2mm (1.19in)
  • Input: 10-30V dc
  • Output: PNP Only Dark Operate
  • 4-Pin 6in PUR Male Euro Pigtail QD
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Housing Style: Slot
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12 (Euro)
  • Number of Pins: 4
  • Output Response Time: 0.3 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Remote Teach: No
  • Connection: Pigtail PUR QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 200 mm
  • Indicator Type: LED
  • Max Sensing Range: 30 mm
  • Slot Depth/Array Length (mm): 45
  • Slot Overall Depth (mm): #REF!
