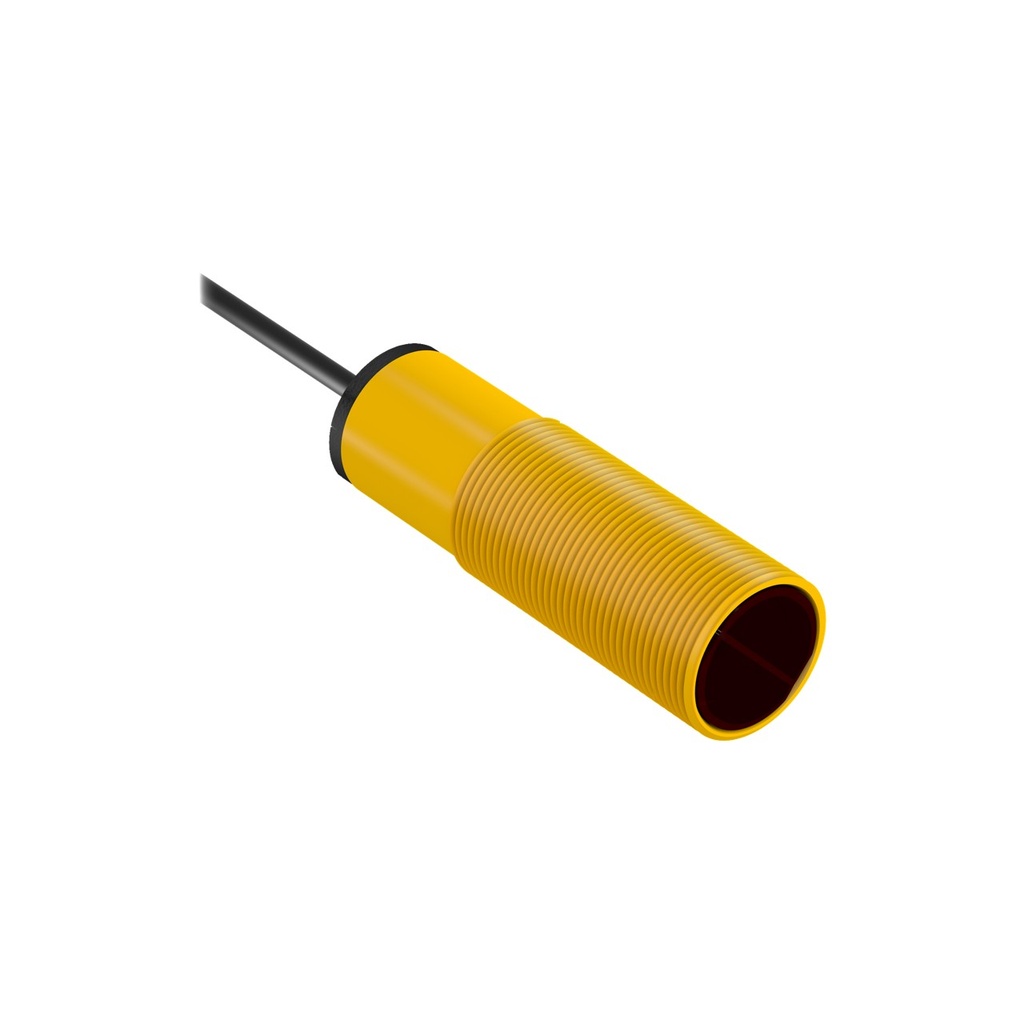

Ez-Beam S18 Series: Emitter (S186E-806910)
Representative photo. Please check item description for details.

Ez-Beam S18 Series: Emitter (S186E-806910)

https://www.branom.com/web/image/product.template/204393/image_1920?unique=c26756c
(0 review)

Features:

    EZ-BEAM S18 Series: Emitter; Low Power; Input: 10-30 V dc; Output: Not AppliCable
  • No Outputs; 2 m (6.5 ft) Cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 375
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Ecolab Certified: Yes
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
