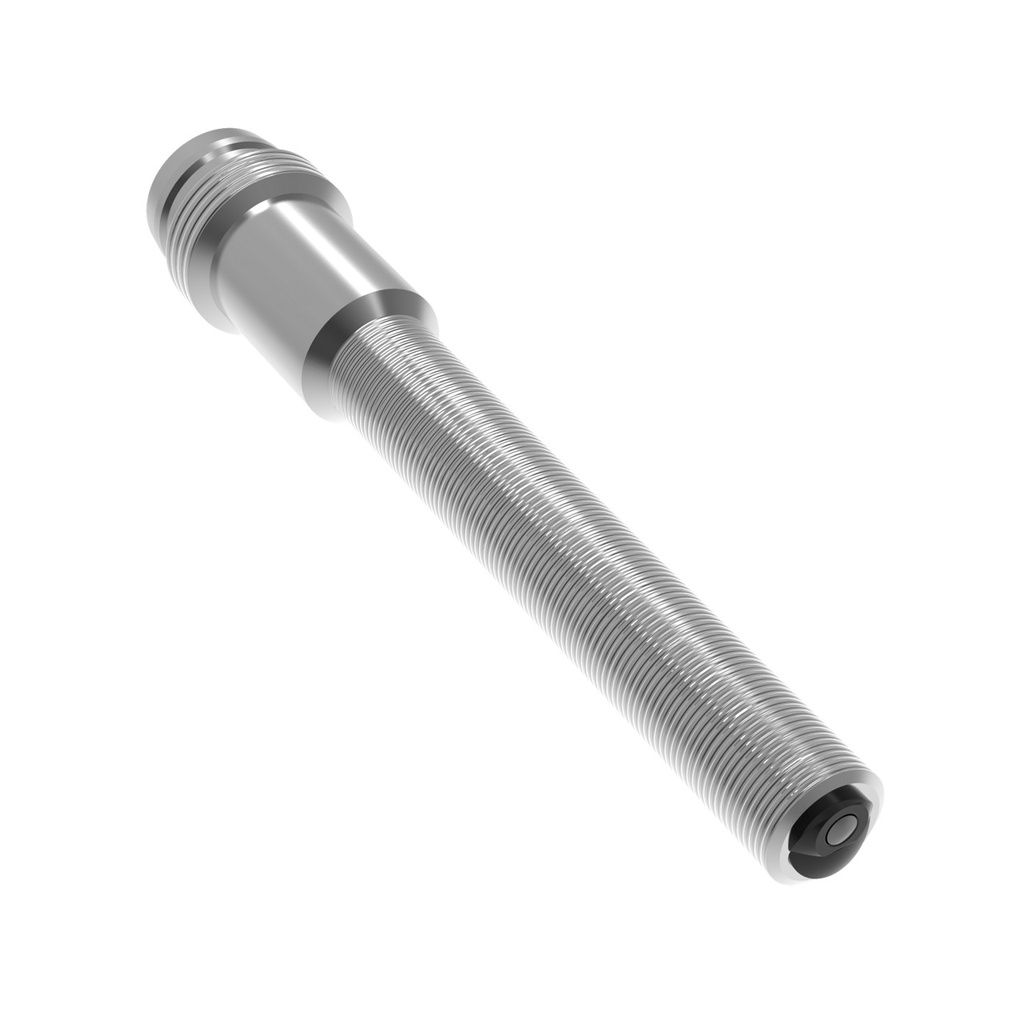

Representative photo. Please check item description for details.

VSM-2 Series: 5 mm Threaded Barrel Diffuse (VSM-2M5APD20-Q7)

https://www.branom.com/web/image/product.template/196838/image_1920?unique=c26756c
(0 review)

Features:

  • VSM-2 Series: 5 mm Threaded Barrel Diffuse
  • Range: 20 mm
  • Input 10-30 V dc
  • Output: 1 PNP with IO-Link Communication
  • LO (Light Operate)
  • Integral Pico M8 3-pin
  • Comes with (2) M5 nuts and (2) lock washers
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 65 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 20 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel - Threaded
  • Max Sensing Distance: 20 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Housing Material_: SS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: Yes
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 0.5 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 5 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Indicator Type: LED

$ 241.00 241.0 USD $ 241.00

$ 241.00

Not Available For Sale

    This combination does not exist.
