Vsm-2 Series: 4 Mm Smooth Barrel Receiver (VSM-2S4RPR500-Q7)

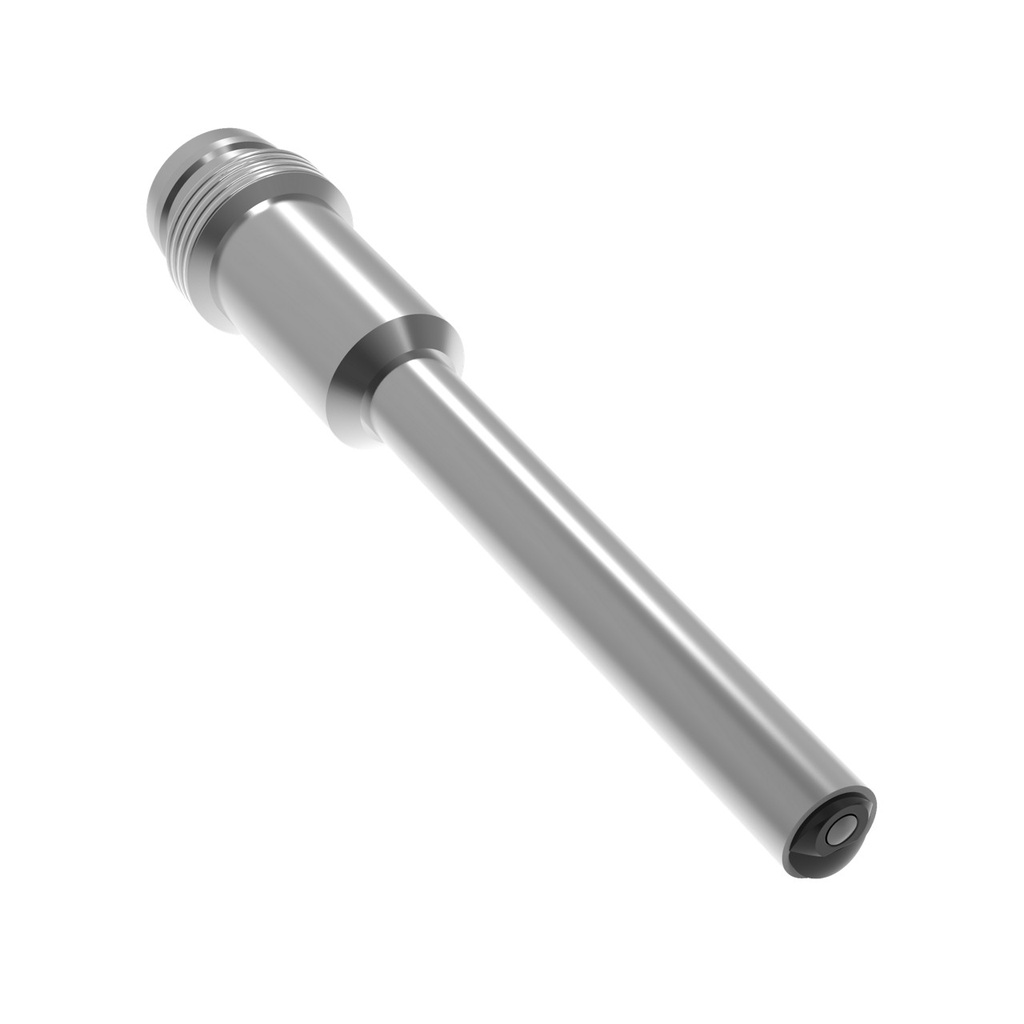

Representative photo. Please check item description for details.

Vsm-2 Series: 4 Mm Smooth Barrel Receiver (VSM-2S4RPR500-Q7)

https://www.branom.com/web/image/product.template/205548/image_1920?unique=c26756c
(0 review)

Features:

    VSM-2 Series: 4 mm Smooth Barrel Receiver; Range: 500 mm; Input 10-30 V dc; Output: 1 PNP with IO-Link Communication; DO (Dark Operate); Integral Pico M8 3-pin
    • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 65 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 20 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel - Smooth
  • Max Sensing Distance: 500 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Housing Material_: SS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: Yes
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 0.5 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 4 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Indicator Type: LED

$ 125.00 125.0 USD $ 125.00

$ 125.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      VSM-2 Series: 4 mm Smooth Barrel Receiver; Range: 500 mm; Input 10-30 V dc; Output: 1 PNP with IO-Link Communication; DO (Dark Operate); Integral Pico M8 3-pin
      • Min Operating Temperature: -25 °C
    • Max Operating Temperature: 65 °C
    • Lens Material: PMMA
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 20 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 1000
    • Sensing Beam: Visible Red LED
    • Housing Style: Barrel - Smooth
    • Max Sensing Distance: 500 mm
    • Sensing Mode (Detailed): Receiver
    • Sensing Mode (General): Opposed
    • Housing Material_: SS
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: Yes
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M8
    • Feature: Chemical Resistant: Yes
    • Opposed Mode Emitter/Receiver: Receiver
    • Feature: Water Detection: No
    • Number of Pins: 3
    • Output Response Time: 0.5 ms
    • Operation: Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Small Visible Spot: LED
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Barrel Diameter: 4 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • Indicator Type: LED
