  3. Tl50 Pro Tower Light With Audible, Standard Black Housing: 2 Lighted Segments (TL50P2A)
Public Pricelist (v2)
Tl50 Pro Tower Light With Audible, Standard Black Housing: 2 Lighted Segments (TL50P2A)
Representative photo. Please check item description for details.

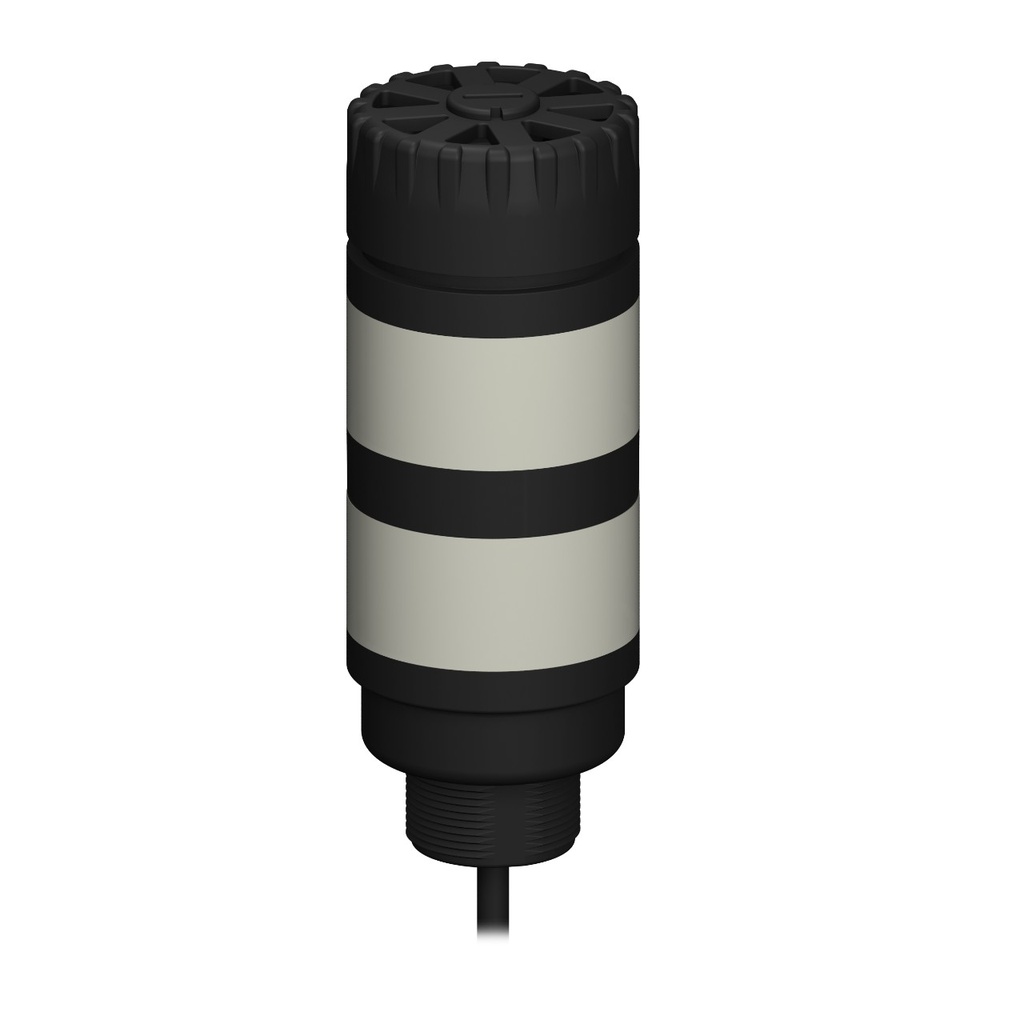

Tl50 Pro Tower Light With Audible, Standard Black Housing: 2 Lighted Segments (TL50P2A)

https://www.branom.com/web/image/product.template/205175/image_1920?unique=c26756c
(0 review)

Features:

    TL50 Pro Tower Light with Audible, Standard Black Housing: 2 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP50; Colors: Multicolor; 2 m (6.5 ft) Cable
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 220 mA
  • Max Current - Audible Alarm (mA): 25 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP50
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Max Audible Intensity: 92 dB @ 1 m
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 17.5
  • Min Audible Intensity @ 1m: 62 dB
  • Color Technology: RGB Configurable
  • Feature: Audible: Yes
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 522 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Audible Operating Frequency (kHz): 2.7
  • Number of Colors / Segments: 2
  • Lumens Color 2: 7.2
  • Color 2 - Wavelength/Color Temp/Coordinates: 620 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Audible Alarm Type: Continuous
  • Number of Tower Light Segments: 3
  • Feature: PFM Input: Yes
  • Connection Type: Cable
  • NEMA / UL: NEMA/UL 13
  • Cord/Cable Length: 2 m

$ 303.00 303.0 USD $ 303.00

$ 303.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
