Tl50 Pro Tower Light, Compact Black Housing: 3 Segment (TL50PC3Q)

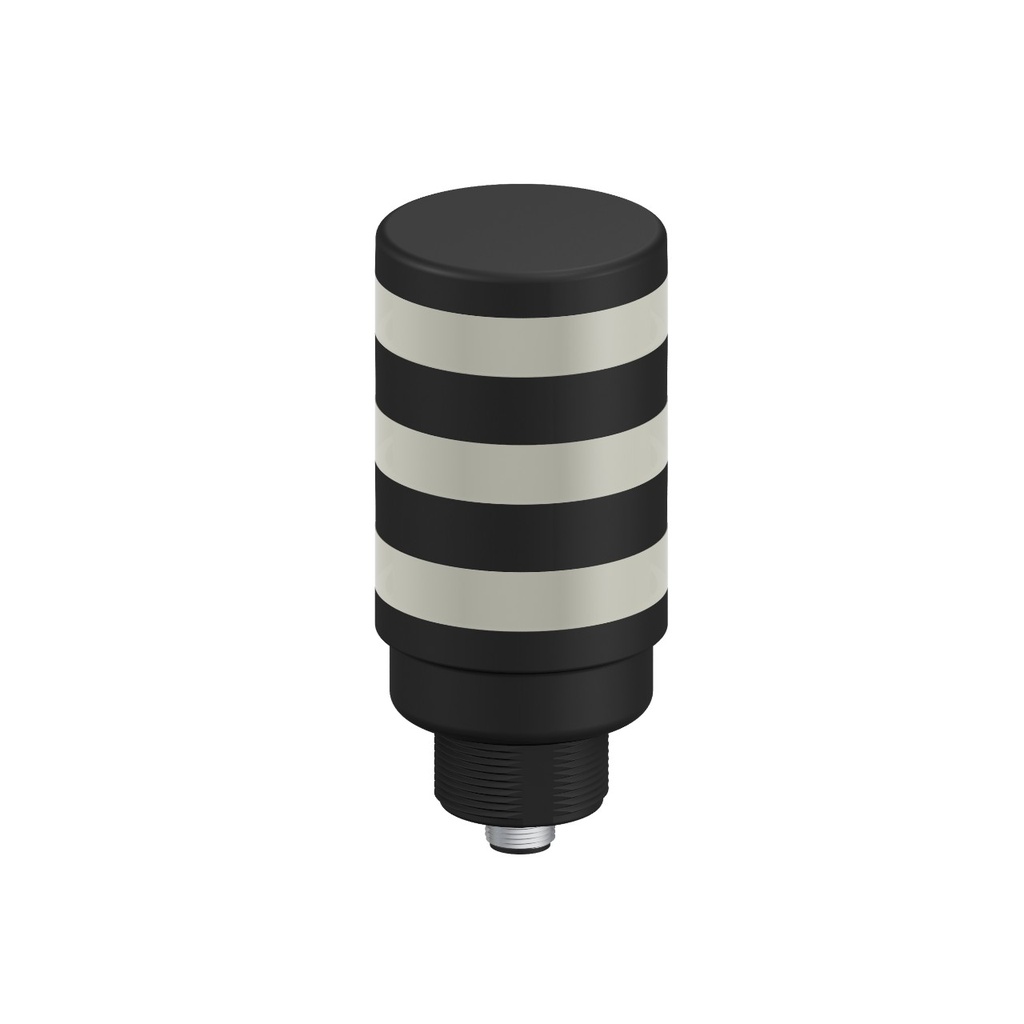

Representative photo. Please check item description for details.

Tl50 Pro Tower Light, Compact Black Housing: 3 Segment (TL50PC3Q)

https://www.branom.com/web/image/product.template/205162/image_1920?unique=c26756c
(0 review)

Features:

    TL50 Pro Tower Light, Compact Black Housing: 3 Segment; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; Euro 5-Pin Quick Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 220 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Color Option 3: Red
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Yellow
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 14.1
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 522 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 620 nm
  • Lumens Color 2: 18.9
  • Lumens Color 3: 6.3
  • Color 2 - Wavelength/Color Temp/Coordinates: 576 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Number of Tower Light Segments: 3
  • Feature: PFM Input: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13

$ 318.00 318.0 USD $ 318.00

$ 318.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
