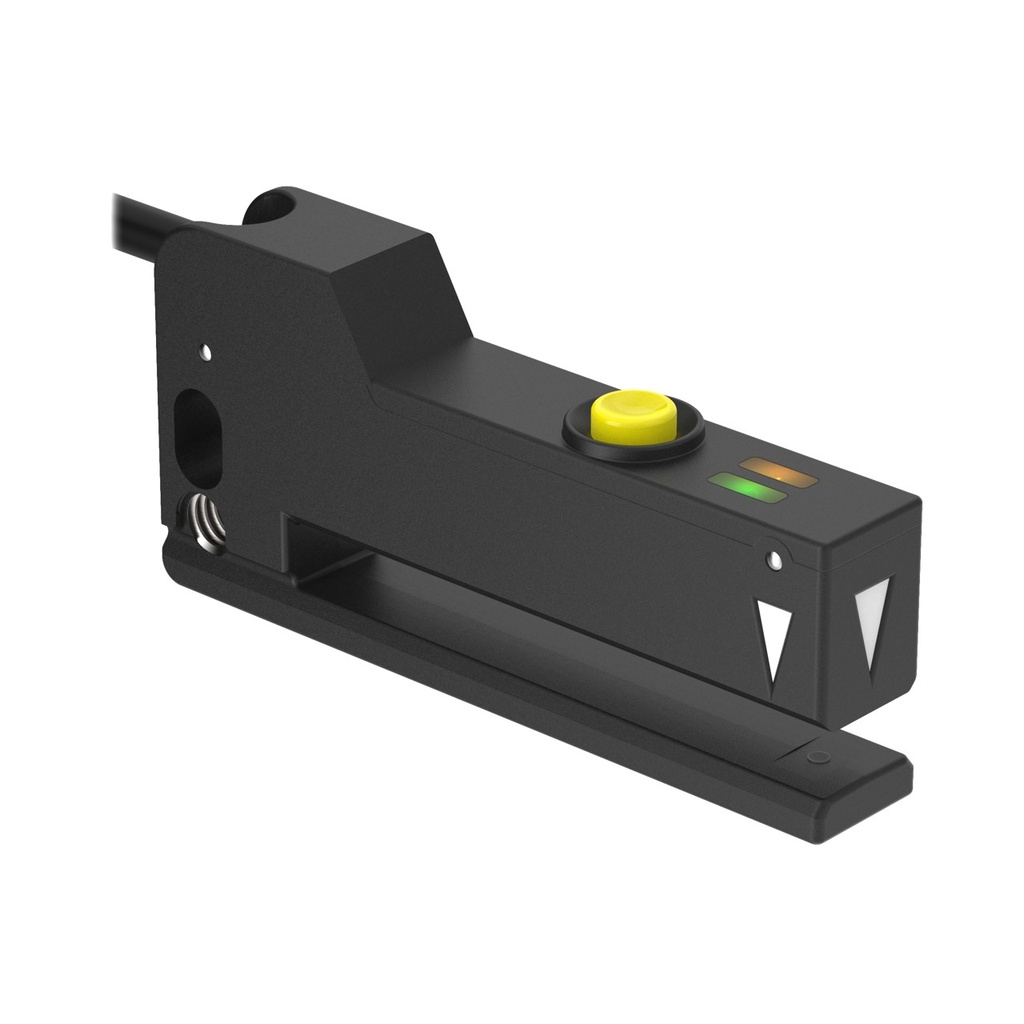

Sle5 Series: Label Sensor (SLE5-NIR-2M)
Features:
- SLE5 Series: Label Sensor; Slot width: 5 mm; Input: 10-30 V dc; Output: NPN; 2 m (6.5 ft) Cable
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 55 °C
- Power Supply: 10-30 VDC
- Ingress Protection: IP65
- Housing Style: Label
- Max Sensing Distance: 5 mm
- Sensing Mode (Detailed): Emitter/Receiver Pair
- Number of Beams: 1
- Housing Material_: Zinc Alloy Die-Cast
- Feature: Quick Disconnect: No
- Output: NPN
- Number of Pins: 5
- Output Response Time: 0.04 ms
- Operation: Light/Dark Operate
- Adjustments: Teach Button
- Feature: Remote Teach: Yes
- Connection Type: Cable
- Cord/Cable Length: 2 m
- Indicator Type: LED
- Max Sensing Range: 5 mm
- Slot Depth/Array Length (mm): 50 mm
- Slot Overall Depth (mm): 5 mm
Features:
- SLE5 Series: Label Sensor; Slot width: 5 mm; Input: 10-30 V dc; Output: NPN; 2 m (6.5 ft) Cable
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 55 °C
- Power Supply: 10-30 VDC
- Ingress Protection: IP65
- Housing Style: Label
- Max Sensing Distance: 5 mm
- Sensing Mode (Detailed): Emitter/Receiver Pair
- Number of Beams: 1
- Housing Material_: Zinc Alloy Die-Cast
- Feature: Quick Disconnect: No
- Output: NPN
- Number of Pins: 5
- Output Response Time: 0.04 ms
- Operation: Light/Dark Operate
- Adjustments: Teach Button
- Feature: Remote Teach: Yes
- Connection Type: Cable
- Cord/Cable Length: 2 m
- Indicator Type: LED
- Max Sensing Range: 5 mm
- Slot Depth/Array Length (mm): 50 mm
- Slot Overall Depth (mm): 5 mm
