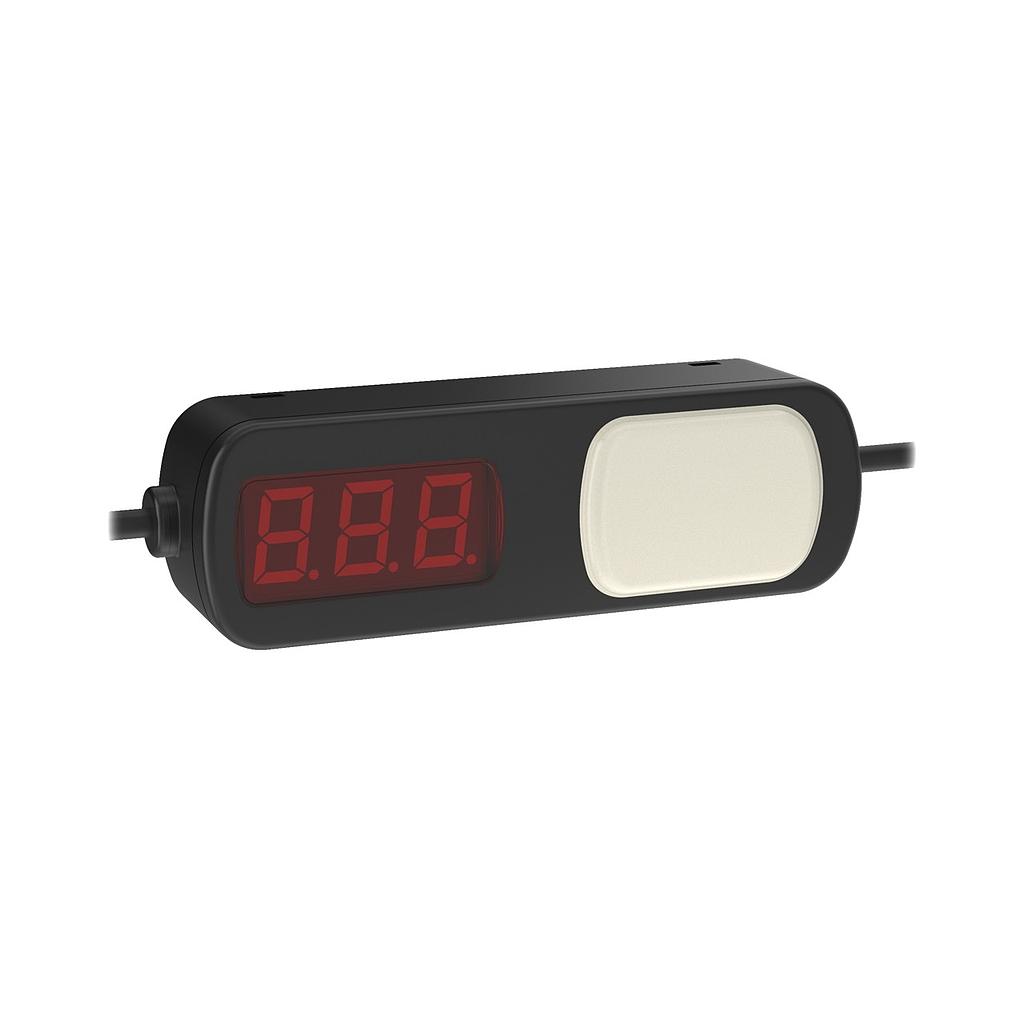

PTL110 Node (PTL110S-LD3-QP150)

https://www.branom.com/web/image/product.template/50749/image_1920?unique=c26756c
(0 review)

Features:

  • PTL110 Node
  • Voltage:10-30 V dc
  • Environmental Rating: IP54
  • Indicator only
  • 3 Digit 7 Segment LED Display
  • 150 mm (6 in) PVC Euro Pigtails
  • Power: DC
  • Feature: Display: Yes
  • Feature: Display Lighting: No
  • Max Current Color: 155 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP54
  • Housing Style: Flat Mount - Flat Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: ABS
  • Light Color: Programmable
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: Yes
  • Physical Dimensions: 110.0 x 35.0 x 33.1 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 10-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Single Color On
  • Animation Option 1: Modbus Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 14
  • Product Size (mm): 110 mm
  • Number of Input Pins/Conductors: 4
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Output: Communication Protocol
  • Pick-to-Light Function: Programmable
  • Mis-Pick Light: Programmable
  • Acknowledge (Sense) Light: Programmable
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m
  • Feature: PICK-IQ (Modbus RTU): Yes
