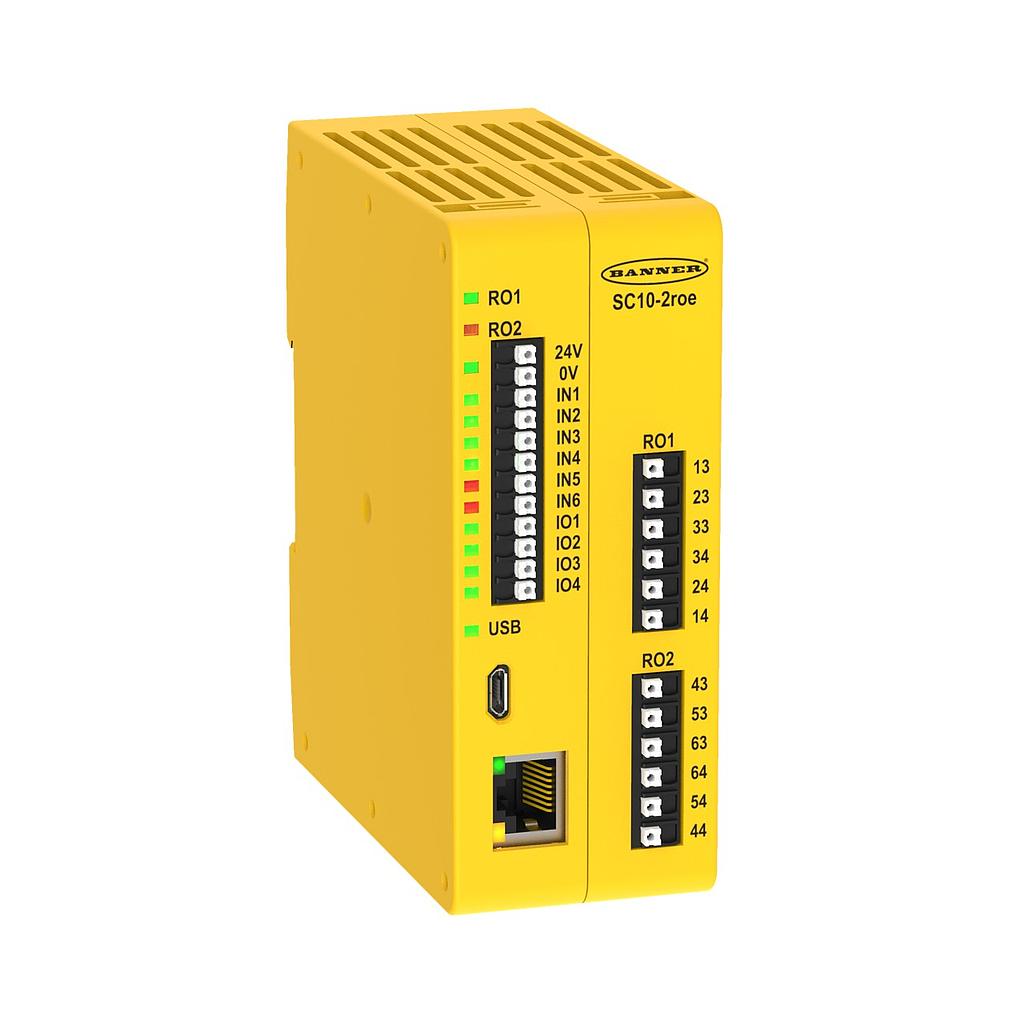

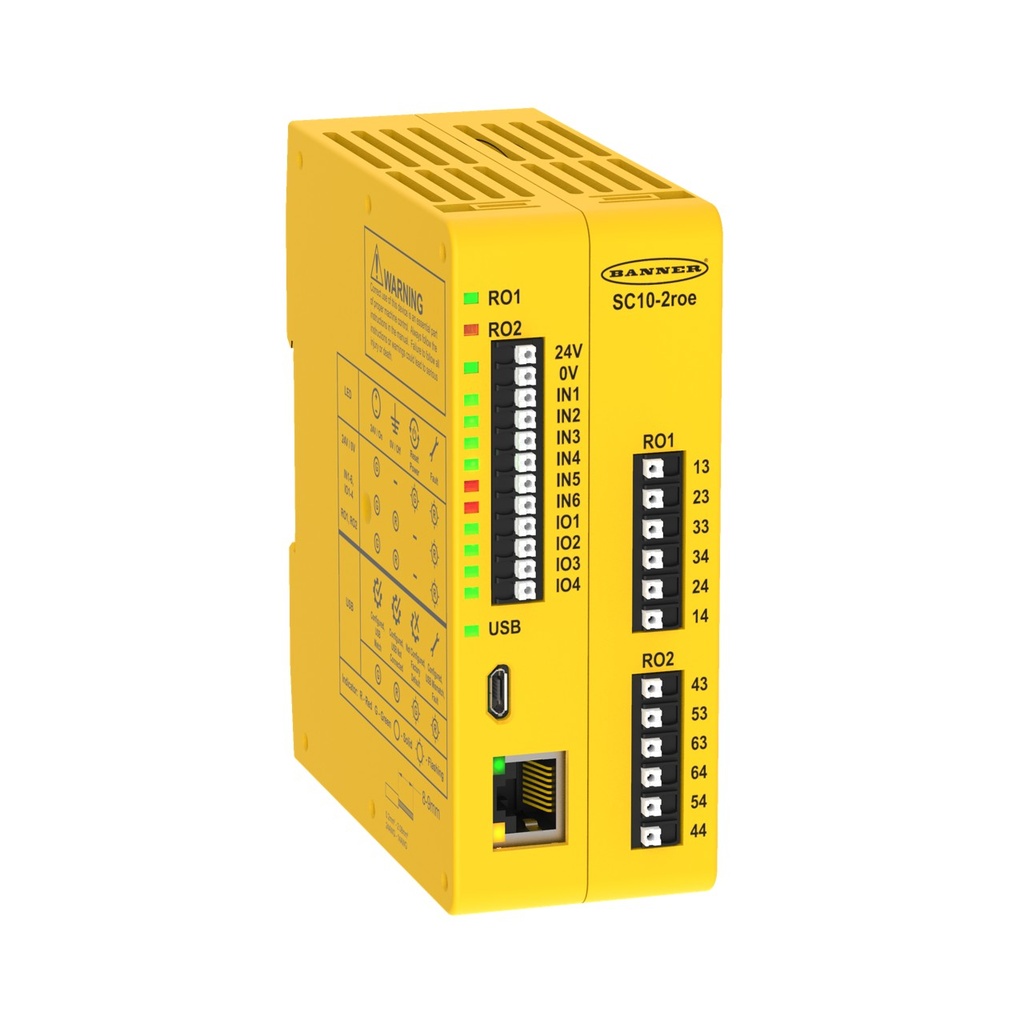

Safety Controller, SC10-2ROE

https://www.branom.com/web/image/product.template/176707/image_1920?unique=c26756c
(0 review)

Features:

  • SC10-2ROE Safety Controller
  • ISD Compatible (2 ISD Chains)10 Inputs 2 Relay Outputs (3 NO, 6 Amp each)
  • Terminal LEDs4 Convertible Inputs
  • Push-in Spring Clamp Terminals24 V dc
  • 240 to 580 mA
  • Max Operating Temperature: 55 °C
  • Power Consumption: 0.24 A (no load, relays on), 0.53 A (full load, relays on)
  • Ingress Protection: IP20
  • Device Type: Safety Controller
  • Feature: PCCC: Yes
  • Feature: Has EtherNet/IP: Yes
  • Feature: Modbus/TCP: Yes
  • Supply Voltage: 24 VDC +/- 20%
  • Safety Module Type: Base Controller
  • Feature: Two-Hand Controls: Yes
  • Independently Controlled Safe Outputs: 2
  • PL Rating: e
  • THC Rating: IIIC
  • Non Safe Output Rating: 80 mA @ 24 V dc (individual) maximum; overcurrent protected
  • Safety Input - Dual Channel (Solid-State): 50 mA @ 15 - 30 VDC
  • SISTEMA: PFHd = 5.0 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 9-150 Hz at 1g occasional/0.5g continuous
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: Configurable
  • Terminal Type: Spring Clamp
  • Input Operation: Simultaneous or Concurrent
  • Number of Safe Inputs: 10
  • Safety Input - Reset: 5-50 mA @ 24 VDC
  • Safety Mat: Yes
  • Input Resistance: 150 Ω max. per lead
  • Recovery Time: 250 ms (typical) / 400 ms (max)
  • Response Time: Other
  • Non Safe Output Configuration: Up to 4 PNP
  • Number of Stored Colors: 10
  • Safety Input - Single Channel: 5-50 mA @ 24 VDC
  • Number of Convertible Inputs: 4
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 50,000 @ full resistive load
  • Feature: E-Stops/Rope Pulls: Yes
  • Feature: Expandable: No
  • Feature: Removable Terminals: No
  • Feature: Gate Switch (NC/NC) Input: Yes
  • Feature: Gate Switch (NC/NO) Input: Yes
  • Feature: Gate Switch (OSSD) Input: Yes
  • Feature: Light Curtains/Scanner with EDM Input: Yes
  • Feature: Light Curtains/Scanner without EDM Input: Yes
  • Feature: Motor Speed: No
  • Feature: Muting: Yes
  • Safety Input - Dual Channel (Dry Contact): 5-50 mA @ 24 VDC
  • Feature: Safety Mat: Yes
  • Feature: In-Series Diagnostics: Yes
  • Mechanical Life: 20 mil

$ 594.00 594.0 USD $ 594.00

$ 594.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
