Wls15 Work Light Strip (WLS15XRD0500DSQP)
Representative photo. Please check item description for details.

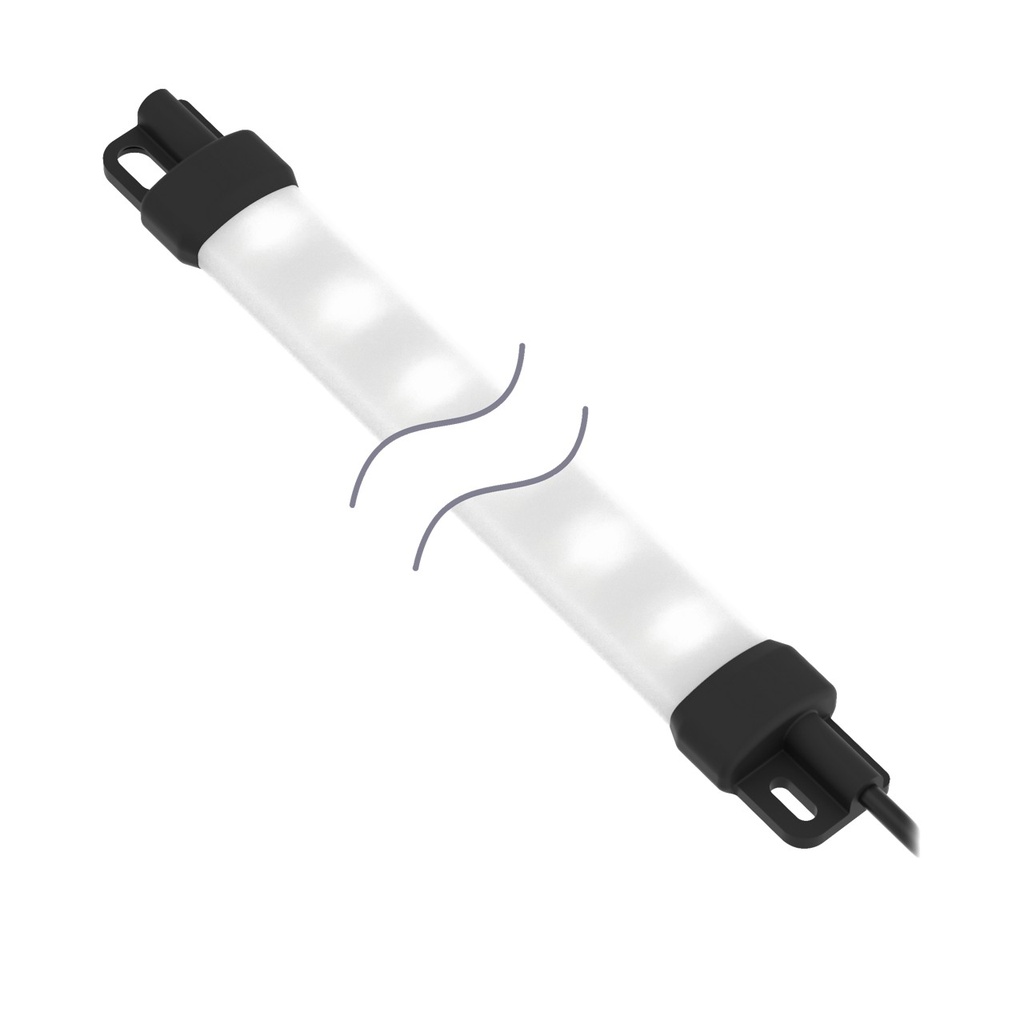

Wls15 Work Light Strip (WLS15XRD0500DSQP)

https://www.branom.com/web/image/product.template/205655/image_1920?unique=c26756c
(0 review)

Features:

    WLS15 Work Light Strip; Diffused Window; Length: 500 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Red; Euro 4-pin 150 mm (6 in) PVC Pigtail
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 720 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Ingress Protection: IP66/67
  • Housing Style: Linear Strip
  • Housing Material_: Polycarbonate
  • Supply Voltage: 12/24 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 165
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Number of Input Pins/Conductors: 4
  • Mounting Thread: No Thread
  • Storage Temp: -40 to 70 °C
  • Dimming Option: PWM
  • Secondary Material: Polyamide
  • Illuminated Length (LxWxH): 426.4 mm
  • Feature: Illumination: Yes
  • Connection Type: Pigtail QD

$ 121.00 121.0 USD $ 121.00

$ 121.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
