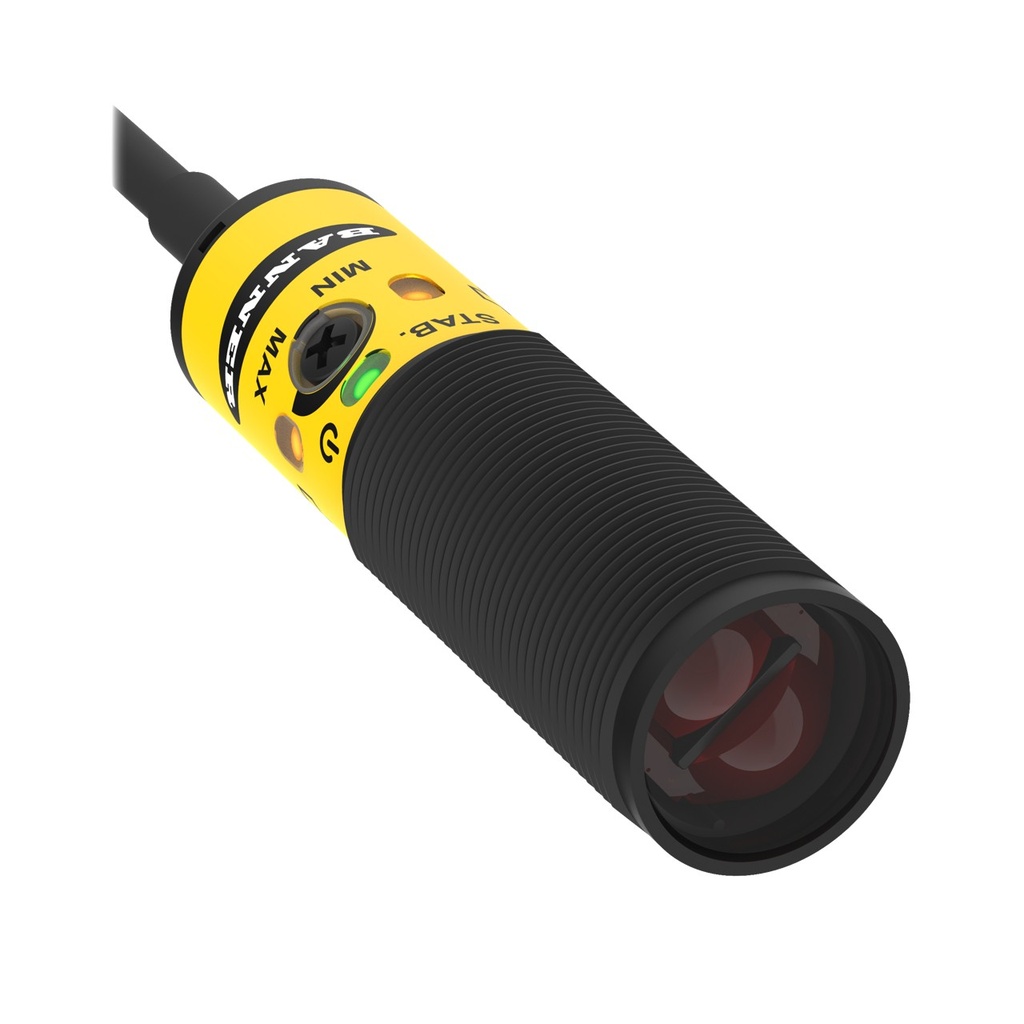

Representative photo. Please check item description for details.

S18-2 Series: Diffuse Reflective (S18-2VNDL-2M-806075)

https://www.branom.com/web/image/product.template/50527/image_1920?unique=c26756c
(0 review)

Features:

  • S18-2 Series: Diffuse Reflective
  • Range: 750 mm
  • Input: 10-30 V dc
  • Outputs: Complementary NPN
  • Connection: 4-pin Euro 4 Conductor 2 m PVC Pigtail Black and White Output Reversed
  • Lens Material: Acrylic
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam Wavelength: 624
  • Housing Style: Barrel
  • Max Sensing Distance: 750 mm
  • Sensing Mode (Detailed): Diffuse
  • Max Relative Humidity: 95% @ 50 °C
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Intrinsically Safe: No
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
