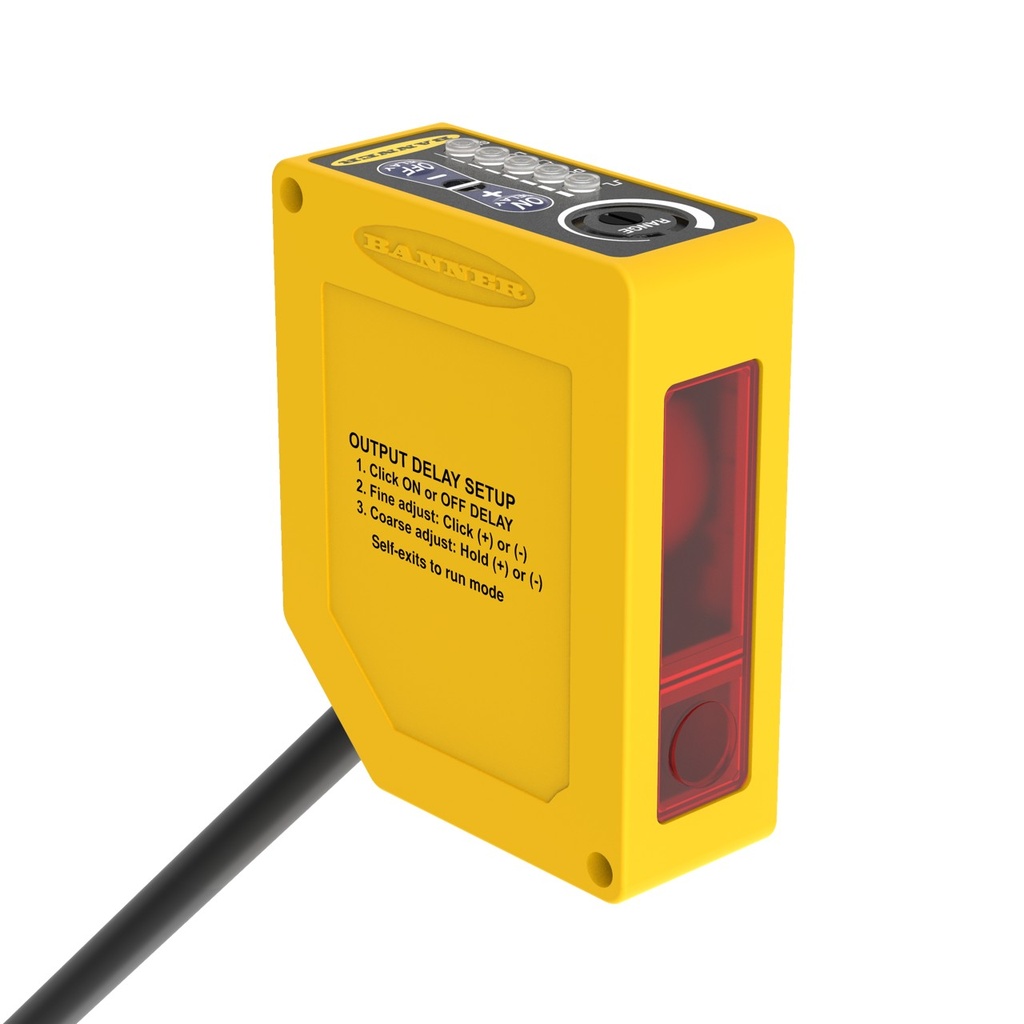

Q60 Series: Adjustable-Field Infrared (Q60BB6AF2000Q-806018)
Representative photo. Please check item description for details.

Q60 Series: Adjustable-Field Infrared (Q60BB6AF2000Q-806018)

https://www.branom.com/web/image/product.template/204206/image_1920?unique=c26756c
(0 review)

Features:

    Q60 Series: Adjustable-Field Infrared; Range: 200-2000 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; Euro-Style Quick-Disconnect 5-pin Connector; Improved Fluorescent Light Immunity
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 6 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 290.00 290.0 USD $ 290.00

$ 290.00

Not Available For Sale
