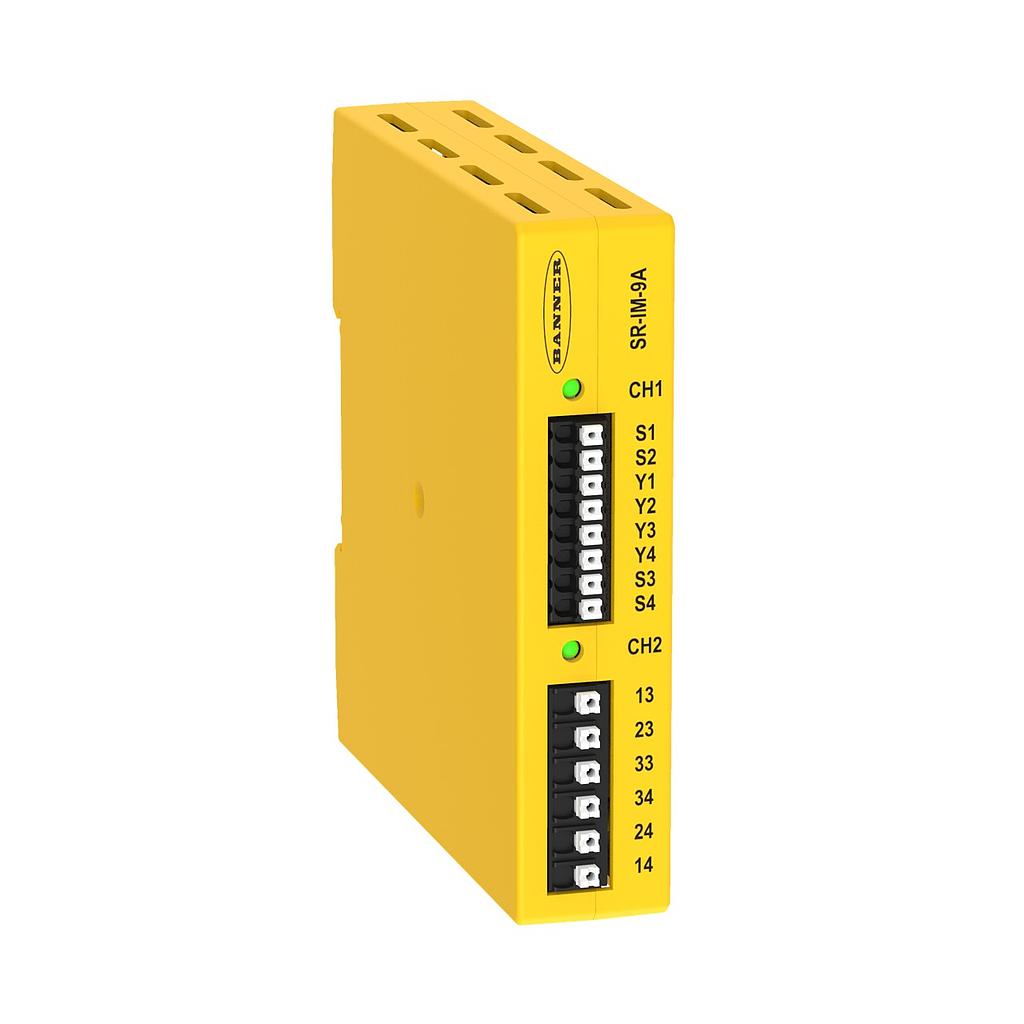

Relay Module for Safety Light Curtain/Control with EDM (SR-IM-9A)

https://www.branom.com/web/image/product.template/50335/image_1920?unique=c26756c
(0 review)

Features:

  • Relay Module for Safety Light Curtain/Control with EDM
  • Supply Voltage: 24 V dc
  • Safety Input: 1 Dual/Single Channel
  • Safety Output: 3 NO, 6 Amp
  • Aux Output: None
  • Spring Clamp Terminals
  • Width: 22.5mm
  • Max Operating Temperature: 50 °C
  • Power Consumption: 0.1 A
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Safe Output Rating: Relay - 6 A
  • Supply Voltage: 24 VDC +/- 15%
  • Safety Module Type: Interface Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • Safety Input - Dual Channel (Solid-State): 50 mA @ 24 VDC +/- 15%
  • SISTEMA: PFHd = 2.1 x 10-10
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 2 OSSD
  • Terminal Type: Spring Clamp
  • Input Operation: Simultaneous or Concurrent
  • Number of Safe Inputs: 1
  • Output Configuration: 3 NO
  • Safety Mat: No
  • Response Time: ≤20 ms
  • Number of Stored Colors: 1
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 1,000,000 @ 450 VA
  • Feature: E-Stops/Rope Pulls: No
  • Feature: Expandable: No
  • Feature: Removable Terminals: No
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: Yes
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: No
  • Feature: Muting: No
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 20 mil

$ 153.00 153.0 USD $ 153.00

$ 153.00

Not Available For Sale

    This combination does not exist.
