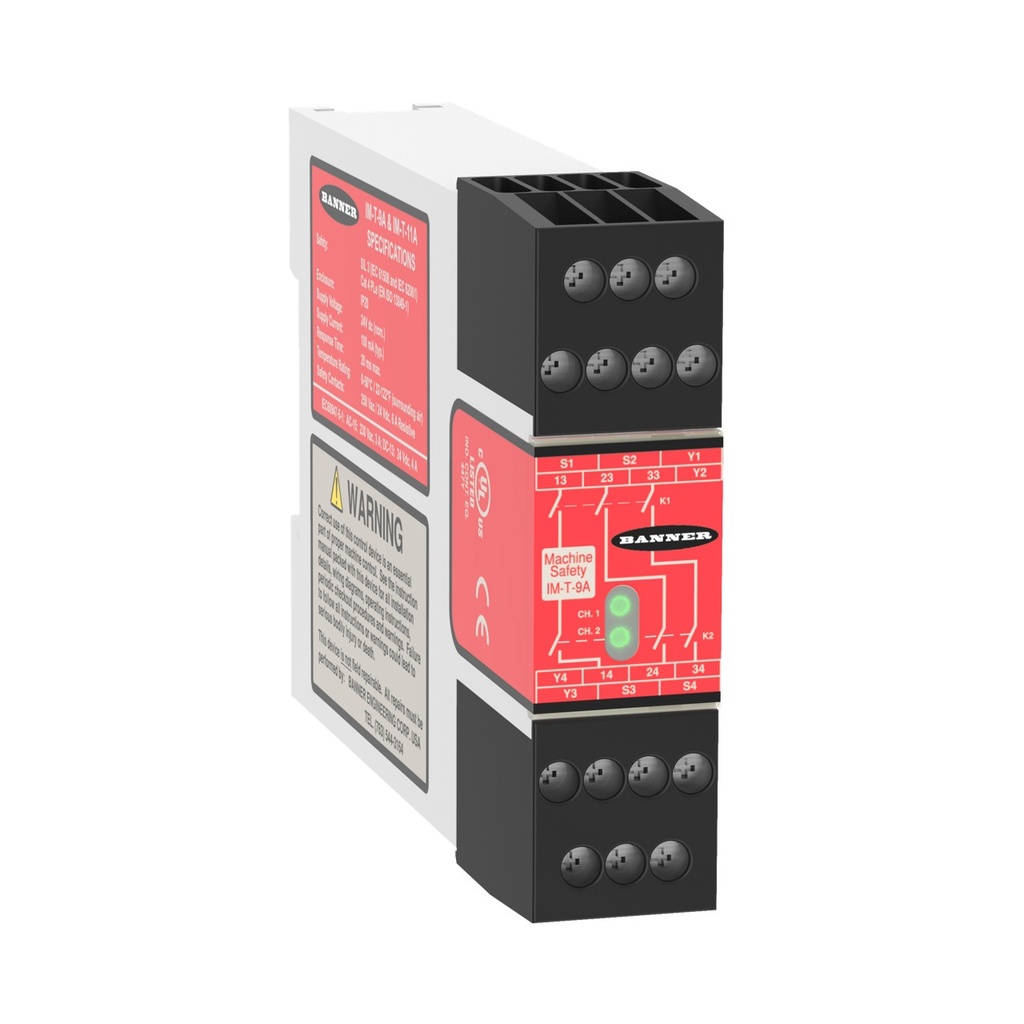

Relay Module For Safety Light Curtain/Control W Edm (IM-T-9A -805569)
Representative photo. Please check item description for details.

Relay Module For Safety Light Curtain/Control W Edm (IM-T-9A -805569)

https://www.branom.com/web/image/product.template/204466/image_1920?unique=c26756c
(0 review)

Features:

    Relay Module for Safety Light Curtain/Control w EDM; Supply Voltage: 24 V dc; Safety Input: 1 Dual/Single Channel; Safety Output: 3 NO, 6 Amp; Aux Output: None; Terminal Block: Removable; Width: 22.5mm, 3 Added Pigtails M12M-8, M12M-4, M12F-4
    • Max Operating Temperature: 50 °C
  • Power Consumption: 0.1 A
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Safe Output Rating: Relay - 6 A
  • Supply Voltage: 24 VDC +/- 15%
  • Safety Module Type: Interface Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • Safety Input - Dual Channel (Solid-State): 50 mA @ 24 VDC +/- 15%
  • SISTEMA: B10d = 1 x 107
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 2 OSSD
  • Terminal Type: Screw
  • Input Operation: Simultaneous or Concurrent
  • Number of Safe Inputs: 1
  • Output Configuration: 3 NO
  • Safety Mat: No
  • Response Time: ≤20 ms
  • Number of Stored Colors: 1
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 1,000,000 @ 450 VA
  • Feature: E-Stops/Rope Pulls: No
  • Feature: Expandable: No
  • Feature: Removable Terminals: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: Yes
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: No
  • Feature: Muting: No
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 20 mil
