Work Light-50Mm 316Ss Spot Light (WL50SGSSGL11Q)

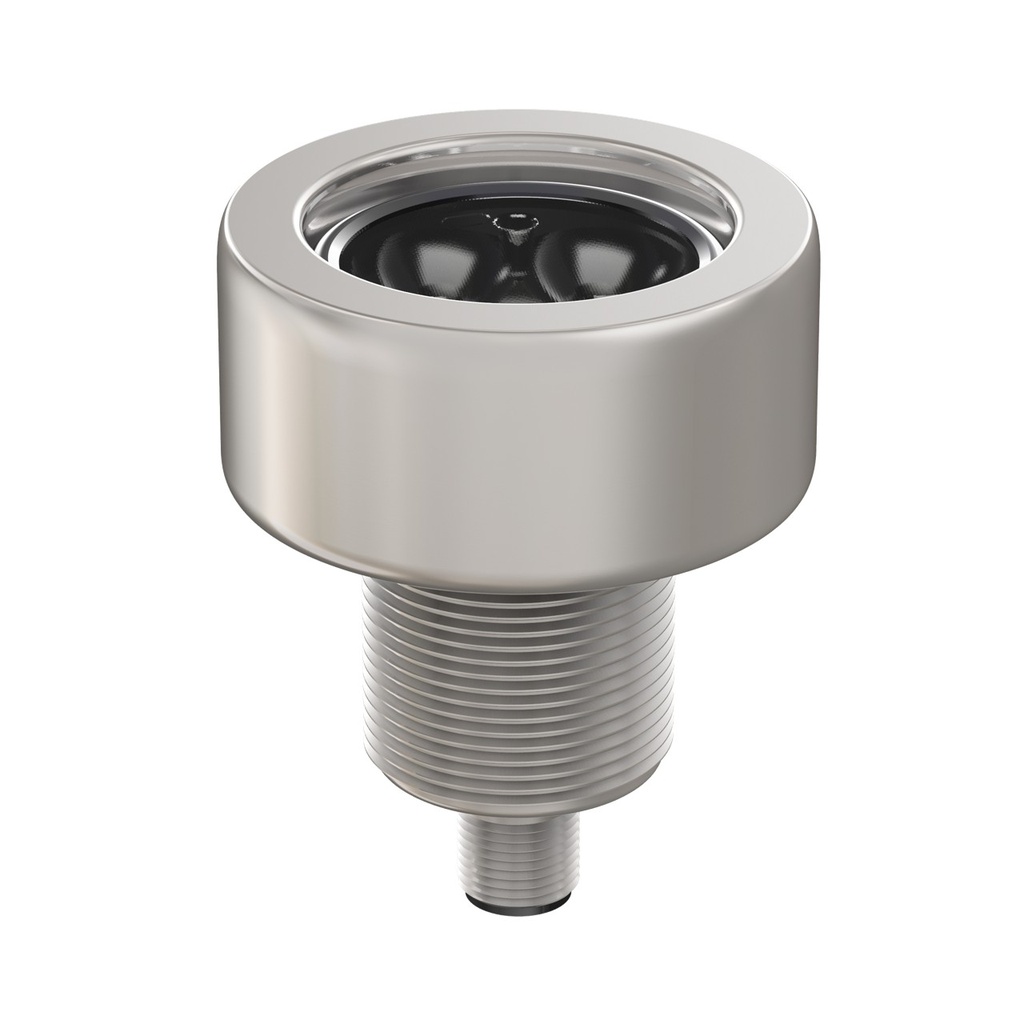

Representative photo. Please check item description for details.

Work Light-50Mm 316Ss Spot Light (WL50SGSSGL11Q)

https://www.branom.com/web/image/product.template/205591/image_1920?unique=c26756c
(0 review)

Features:

    Work Light-50mm 316SS Spot Light;; Voltage: 12-30Vdc; Environmental Rating: IP69K ; Color: Green; 11 Deg Lens; Glass Window; Euro 5-pin Integral Connector
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67/69K
  • Housing Style: Base Mount - Flat Window
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: SS
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 56.0 x 71.1 mm
  • Feature: Wireless: No
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 5
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -40 to 70 °C
  • Lens Focusing Angle/Field of View: 11°
  • Feature: Illumination: Yes
  • Connection Type: Integral QD
  • Lens Focusing Angle (°)/Field of View: 11°

$ 496.00 496.0 USD $ 496.00

$ 496.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
