Hls27 Hazardous Location Strip Light (HLS27DW1130CQP)
Representative photo. Please check item description for details.

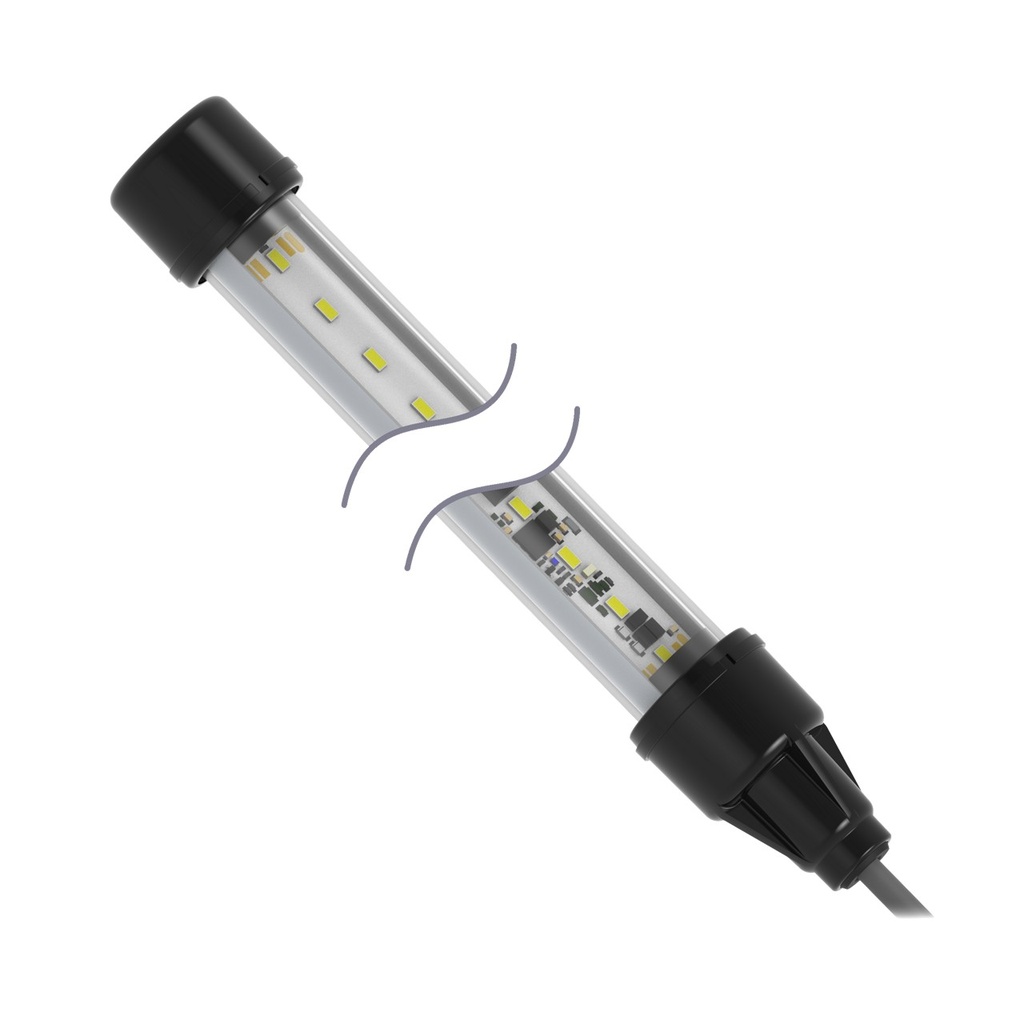

Hls27 Hazardous Location Strip Light (HLS27DW1130CQP)

https://www.branom.com/web/image/product.template/202568/image_1920?unique=c26756c
(0 review)

Features:

    HLS27 Hazardous Location Strip Light; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; ; Color: White; ; 150mm ITC-ER cable with 4-pin male 7/8 Minifast
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 3200 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67
  • Housing Style: Linear Strip
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: Yes
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 38.1 x 1216.0 mm
  • Feature: Wireless: No
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 850
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Warm White
  • Color 1 - Wavelength/Color Temp/Coordinates: 3000K (Warm)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Number of Colors / Segments: 1
  • Product Size (mm): 27 mm
  • Number of Input Pins/Conductors: 4
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -40 to 70 °C
  • Dimming Option: High-Low-Off
  • Illuminated Length (LxWxH): 1128.0 mm
  • Feature: Illumination: Yes
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m
