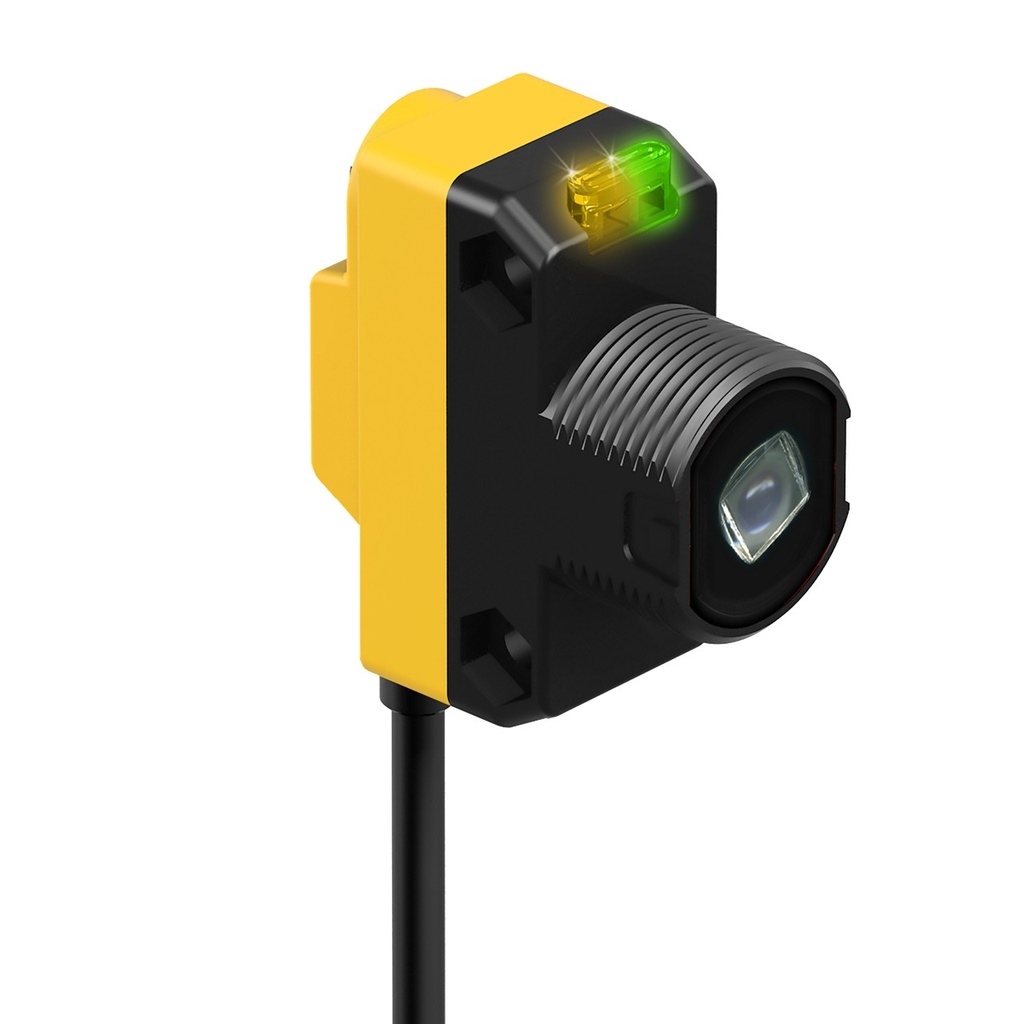

World-Beam Qs18 Series: Laser Class 2 (QS186LE214Q5-IOB)
Representative photo. Please check item description for details.

World-Beam Qs18 Series: Laser Class 2 (QS186LE214Q5-IOB)

https://www.branom.com/web/image/product.template/204291/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: Laser Class 2; Cross; Range: 15 m; Input: 10-30 V dc; Output: Not Applicable; Euro 150 mm Quick-Disconnect Pigtail, Special Customer Wiring
    • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 250 ms
  • Ingress Protection: IP67
  • Sensing Beam: Laser
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 15000 mm
  • Sensing Mode (Detailed): Laser Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Laser Classification: Class 2
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 199.00 199.0 USD $ 199.00

$ 199.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
