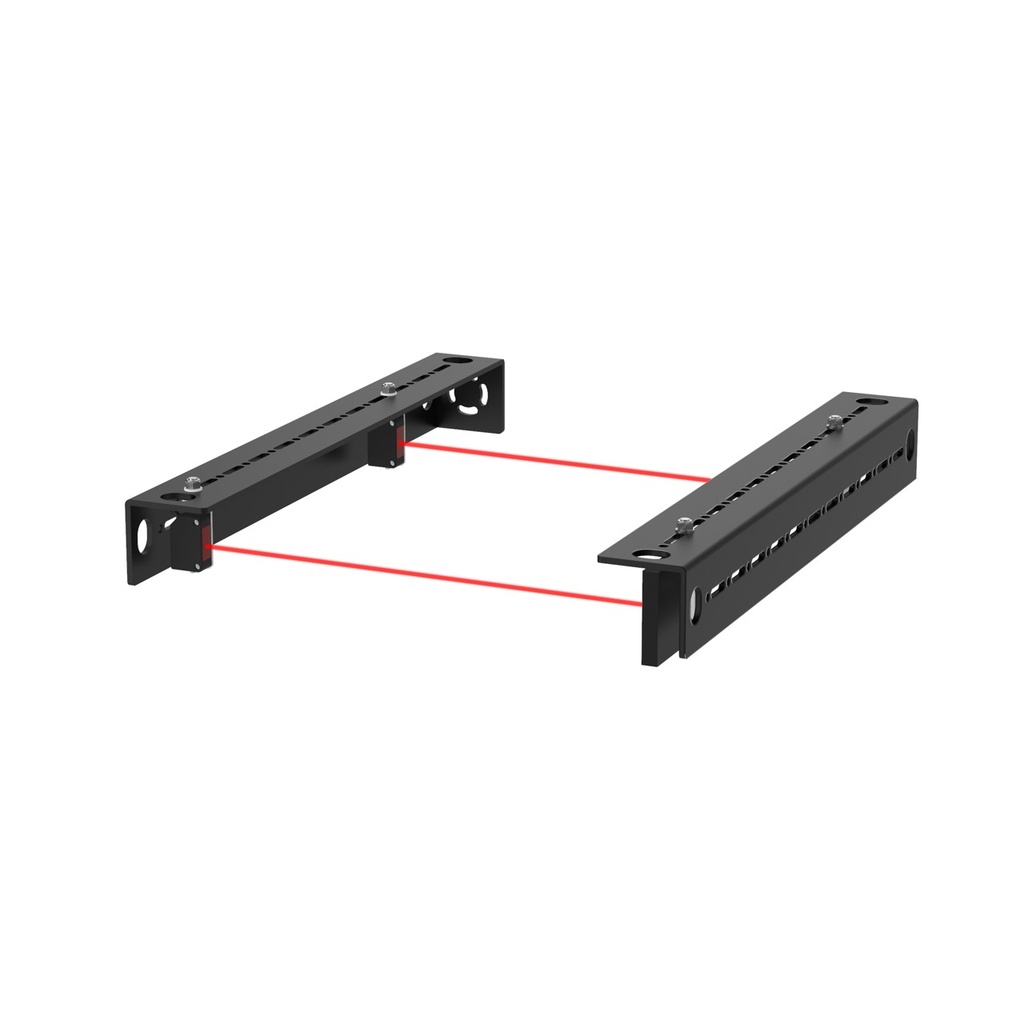

Representative photo. Please check item description for details.

Safety Grid System and LS Light Curtain, Accessory (SGSA-ML-L-LPQ20)

https://www.branom.com/web/image/product.template/48001/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Grid System and LS Light Curtain, Accessory
  • Mute Arm Kit: L Configuration Left Side
  • Includes: One Sensor Arm with Two Q20PLPQ5 Sensors Installed
  • One Reflector Arm with Two Reflectors Installed, and Mounting Hardware
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Visible Red LED
  • Max Sensing Distance: 4000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Feature: Hazardous Area: No
  • Physical Dimensions: 50 x 50 x 400 mm
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Vibration: 0.35 mm
  • Shock: 10..55 Hz
  • Feature: Remote Teach: No
  • QD Type/Cable Length: M12
  • SF-Remote Teach: No
  • Feature: Alarm/Health Output: No
  • Number of Sensor Arms: 1
  • Number of Reflectors: 2
  • Configuration: L Configuration Left Side
  • Feature: Intrinsically Safe: No
  • Number of Sensors: 2
  • SF-Water Detection: No
  • Number of Reflector Arms: 1
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 496.00 496.0 USD $ 496.00

$ 496.00

Not Available For Sale

    This combination does not exist.
