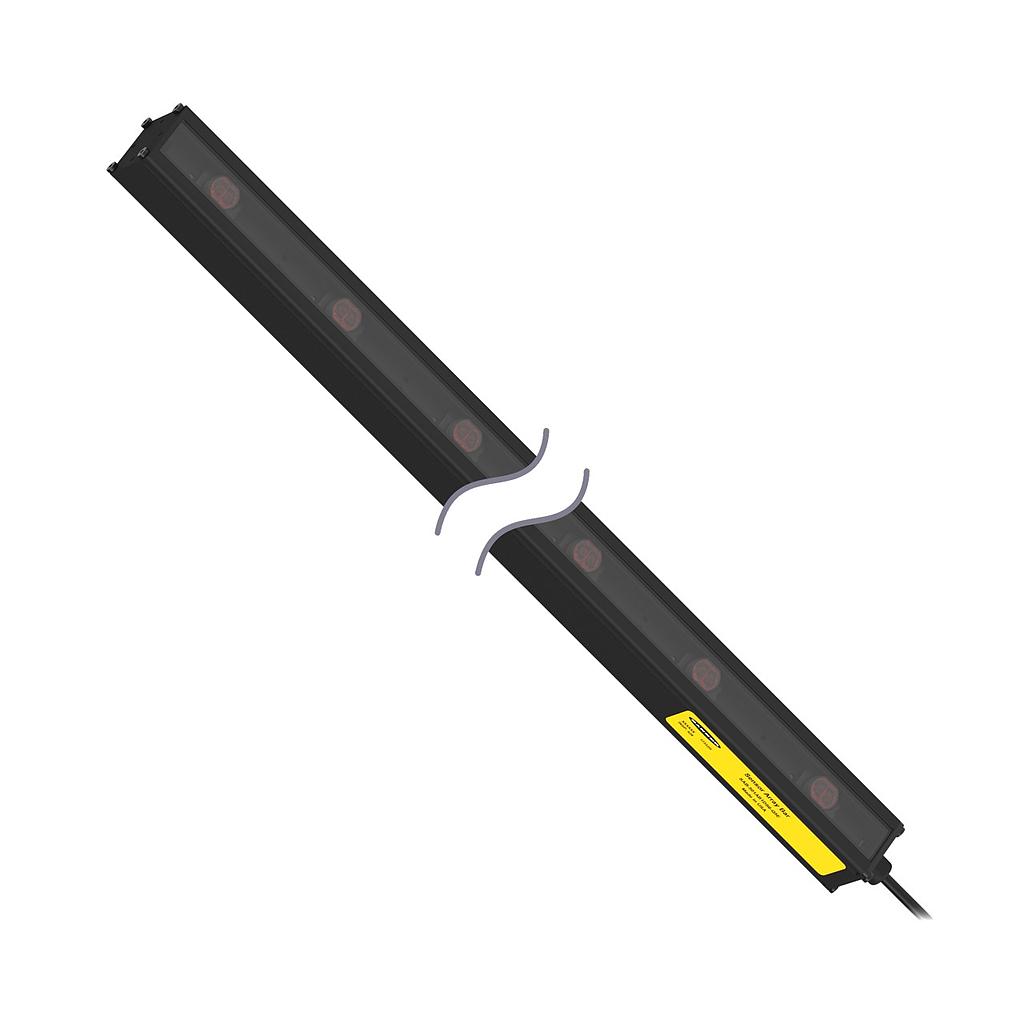

Representative photo. Please check item description for details.

WORLD-BEAM QS18 Series: 6 Beam Sensor Array (SAB-497RB1LP6-Q5E)

https://www.branom.com/web/image/product.template/47996/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Series: 6 Beam Sensor Array
  • Polarized Retro
  • Range: 1m
  • Input: 10-30 V dc
  • Outputs: Bipolar NPN and PNP Dark Operate
  • Euro 150 mm (6 in) 4-pin Quick-Disconnect Pigtail
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP50
  • Housing Style: Sensing Array Bar
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Polarized Retro
  • Sensing Mode (General): Proximity
  • Beam Spacing: 82.55 mm
  • Max Relative Humidity: 95% @ 50 °C
  • Number of Beams: 6
  • Housing Material_: Black Anodized Aluminum
  • Feature: Hazardous Area: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Distance to First Beam: 42.0 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.2 m
  • Indicator Type: Indicator LED
  • Max Sensing Range: 1000 mm
  • Slot Depth/Array Length (mm): 497 mm
  • Slot Overall Depth (mm): 38 mm

$ 710.00 710.0 USD $ 710.00

$ 710.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • WORLD-BEAM QS18 Series: 6 Beam Sensor Array
    • Polarized Retro
    • Range: 1m
    • Input: 10-30 V dc
    • Outputs: Bipolar NPN and PNP Dark Operate
    • Euro 150 mm (6 in) 4-pin Quick-Disconnect Pigtail
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 55 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Ingress Protection: IP50
    • Housing Style: Sensing Array Bar
    • Max Sensing Distance: 1000 mm
    • Sensing Mode (Detailed): Polarized Retro
    • Sensing Mode (General): Proximity
    • Beam Spacing: 82.55 mm
    • Max Relative Humidity: 95% @ 50 °C
    • Number of Beams: 6
    • Housing Material_: Black Anodized Aluminum
    • Feature: Hazardous Area: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Number of Pins: 4
    • Output Response Time: 1.5 ms
    • Operation: Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Distance to First Beam: 42.0 mm
    • Connection Type: Pigtail QD
    • Cord/Cable Length: 0.2 m
    • Indicator Type: Indicator LED
    • Max Sensing Range: 1000 mm
    • Slot Depth/Array Length (mm): 497 mm
    • Slot Overall Depth (mm): 38 mm
