Q4X Series: Laser Adjustable Field (Q4XTKLAF600-Q8-805040)

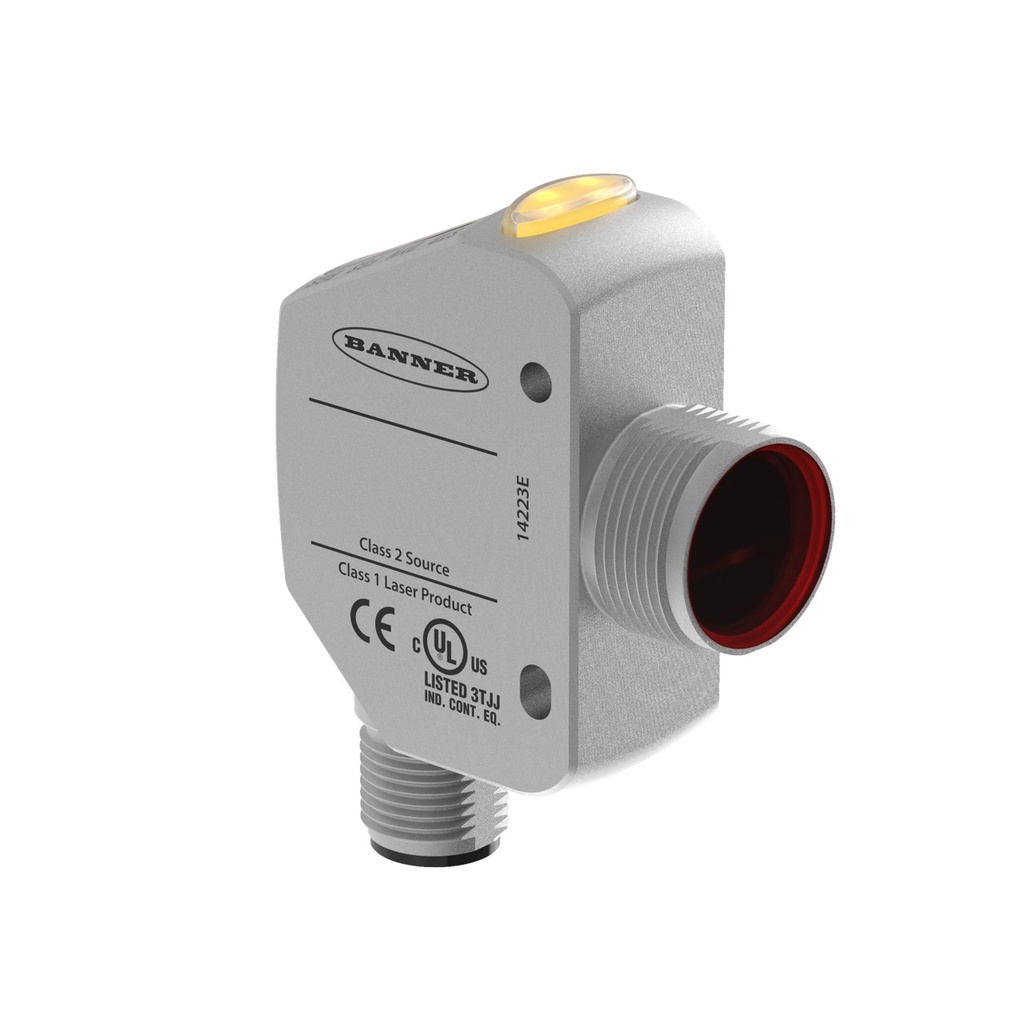

Representative photo. Please check item description for details.

Q4X Series: Laser Adjustable Field (Q4XTKLAF600-Q8-805040)

https://www.branom.com/web/image/product.template/204194/image_1920?unique=c26756c
(0 review)

Features:

    Q4X Series: Laser Adjustable Field; Range 600 mm; Input 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP; Connection: Euro M12 4-pin Integral Connector; Threaded Barrel Housing; Customer FGS Window
    • Max Off-State Leakage Current (µA): <50 µA @ 30 VDC (PNP) / Push/Pull: N/A
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power/Current Consumption (exclusive of load): < 700 mW
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): #ERROR!
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP67/68/69
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular w/ Threaded Mount
  • Max Sensing Distance: 600 mm
  • Sensing Mode (Detailed): Background/Foreground Suppression
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: SS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 1
  • Feature: IO Link: Yes
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 55 °C
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -25 to 75 °C
  • Number of Pins: 4
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18
  • Min Response Time: 2 ms
  • Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Output Saturation Voltage PNP Outputs: <2 V
  • Analog Resolution/Discrete Repeatability: 25 mm to 100 mm: +/-0.5; 100 mm to 600 mm: +/- 0.5% of range
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 25 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 0.4 mm
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable; 1 PNP
  • Max Measurement Range: 500-1000 mm
  • Output Protection: Protected against continuous overload and short circuit
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Spot Size (@ Reference Distance): 1.9 mm x 1.0 mm @ 600 mm
  • Connection Type: Integral QD
  • Barrel Thread: M18
  • Feature: Common Ethernet Protocol: No
  • Feature: Laser Control: Yes
  • Feature: PC Configurable: No
  • Feature: PFM Output: Yes
  • Indicator Type: LED
  • Max Ambient Light: 5000 lux
  • Warm-Up Time: 10 min
  • Discrete Output Hysteresis: Auto Adjust
  • Alarm Output (mA): 100

$ 566.00 566.0 USD $ 566.00

$ 566.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
