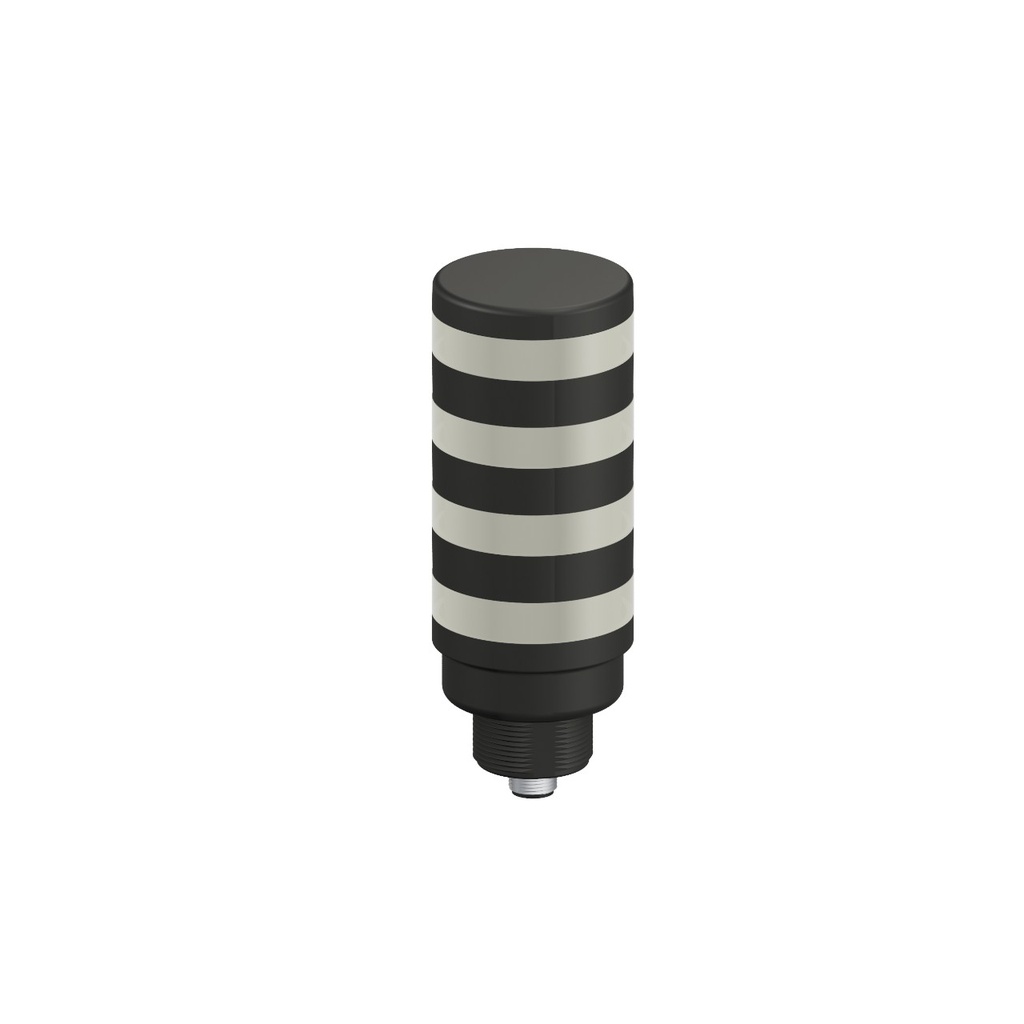

Representative photo. Please check item description for details.

TL50 Pro Tower Light with IO-Link, Compact Black Housing: 4-Segment (TL50C4KQ)

https://www.branom.com/web/image/product.template/47864/image_1920?unique=c26756c
(0 review)

Features:

  • TL50 Pro Tower Light with IO-Link, Compact Black Housing: 4-Segment
  • Voltage: 18-30 V dc
  • Environmental Rating: IP67
  • Colors: Multicolor
  • Euro 4-pin Quick-Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 100 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: IO Link: Yes
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Programmable
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 4
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 20 ms
  • Dimming Option: Programmable
  • Number of Tower Light Segments: 4
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13

$ 393.00 393.0 USD $ 393.00

$ 393.00

Not Available For Sale
