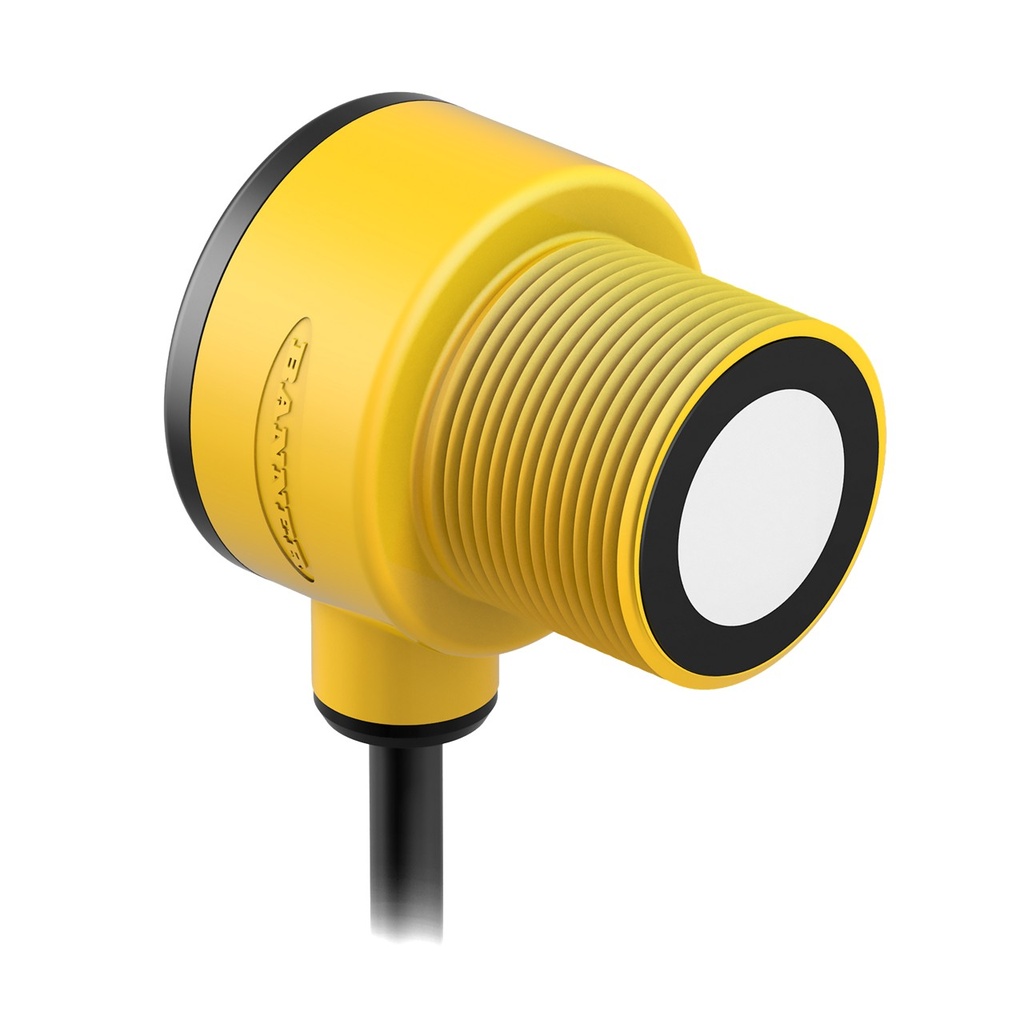

Representative photo. Please check item description for details.

T30UX Series w/ Analog Output (T30UXIC)

https://www.branom.com/web/image/product.template/47834/image_1920?unique=c26756c
(0 review)

Features:

  • T30UX Series w/ Analog Output
  • Range: 300 mm to 3 m
  • Input: 10 to 30V dc
  • Analog Output: 4 to 20 mA
  • 2 m (6.5 ft) Cable
  • Max Off-State Leakage Current (µA): <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
  • Analog Current Output Rating: 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 40 mA
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): 0.02% of sensing distance/°C
  • Delay at Power-Up: 500 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Barrel
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 4 to 20 mA
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Chemical Resistant: No
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Barrel Diameter: 30
  • Min Response Time: 135 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Output Saturation Voltage PNP Outputs: < 3 V @ 100 mA
  • Analog Resolution/Discrete Repeatability: 0.1% of distance (1.5 min)
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 300 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 10 mm
  • Remote Teach and Laser Control Input Impedence: 55 kΩ
  • Max Measurement Range: 1-20 m
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Barrel Thread: M30
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Rep Rate: 45 ms
  • Ultrasonic Frequency: 114 kHz
  • Analog Linearity: 0.25% of Distance

$ 523.00 523.0 USD $ 523.00

$ 523.00

Not Available For Sale
