Vs2 Series: Vs2Rn5R (VS2RN5REV-804452)

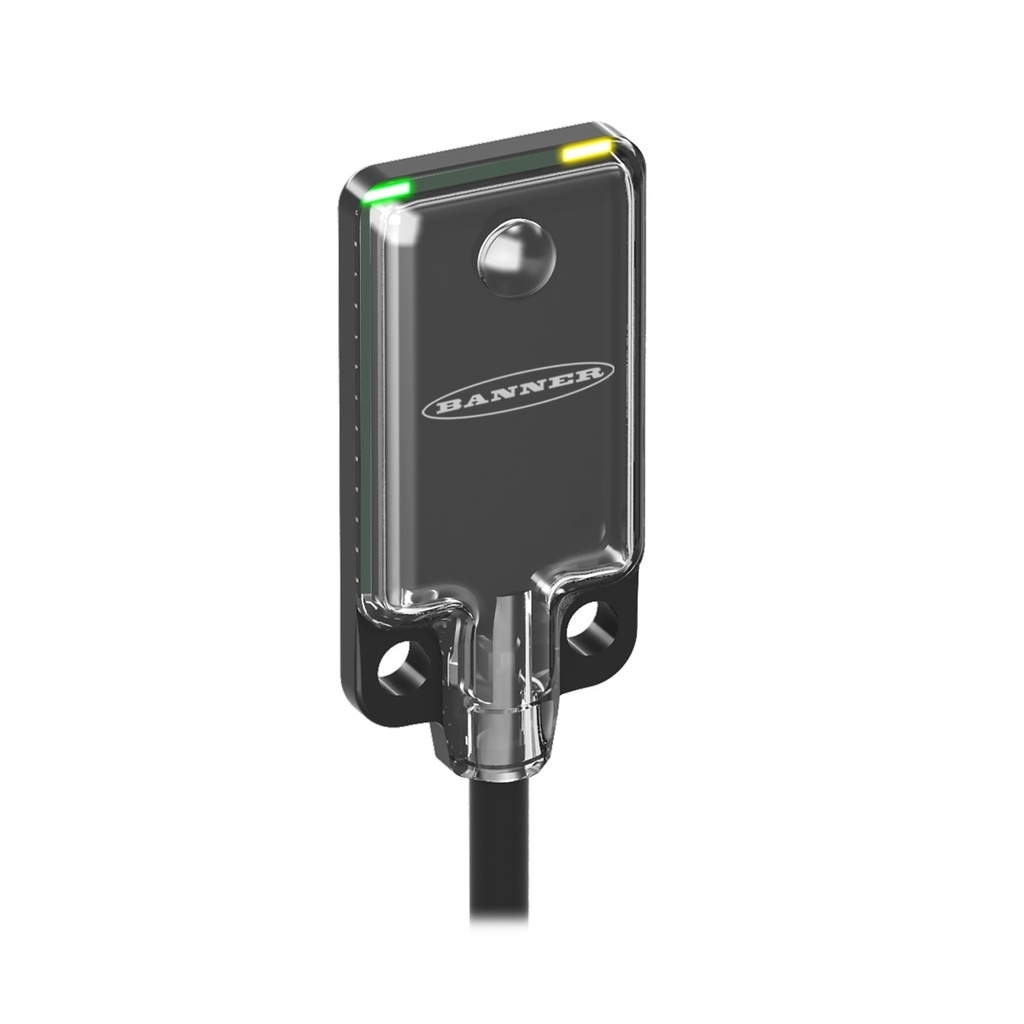

Representative photo. Please check item description for details.

Vs2 Series: Vs2Rn5R (VS2RN5REV-804452)

https://www.branom.com/web/image/product.template/205524/image_1920?unique=c26756c
(0 review)

Features:

    VS2 Series: VS2RN5R; Molex 3-pin Pigtail 9.0 in; VS25EV: 32.0 in Pigtail; Into 1, 3-pin Molex;
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: MABS
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 940
  • Housing Style: Rectangular
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 80% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: Special
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Pair
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 1 ms ON/0.5 ms OFF
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Other
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 278.00 278.0 USD $ 278.00

$ 278.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
