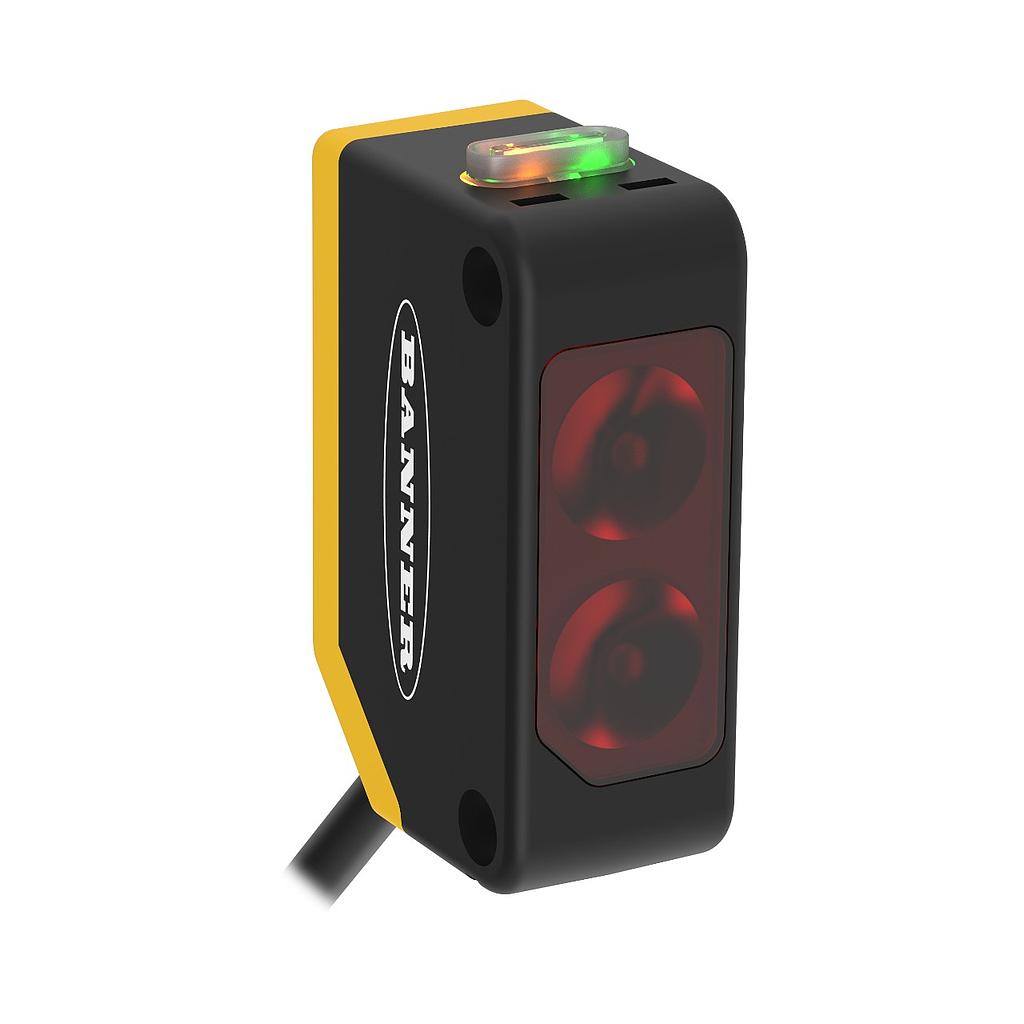

WORLD-BEAM Q20 Series: Polarized Retro (SGSA-Q20PLPQ5)

https://www.branom.com/web/image/product.template/47474/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM Q20 Series: Polarized Retro
  • Range: 4 m
  • Input 10-30 V dc
  • No Gain Pot
  • Output: Complementary Solid State PNP
  • 600 mm Pigtail Euro-style Quick Disconnect Connector
  • Specifically used with SGS Safety Grid System
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 655
  • Housing Style: Rectangular
  • Max Sensing Distance: 4000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Dark Operate
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 130.00 130.0 USD $ 130.00
