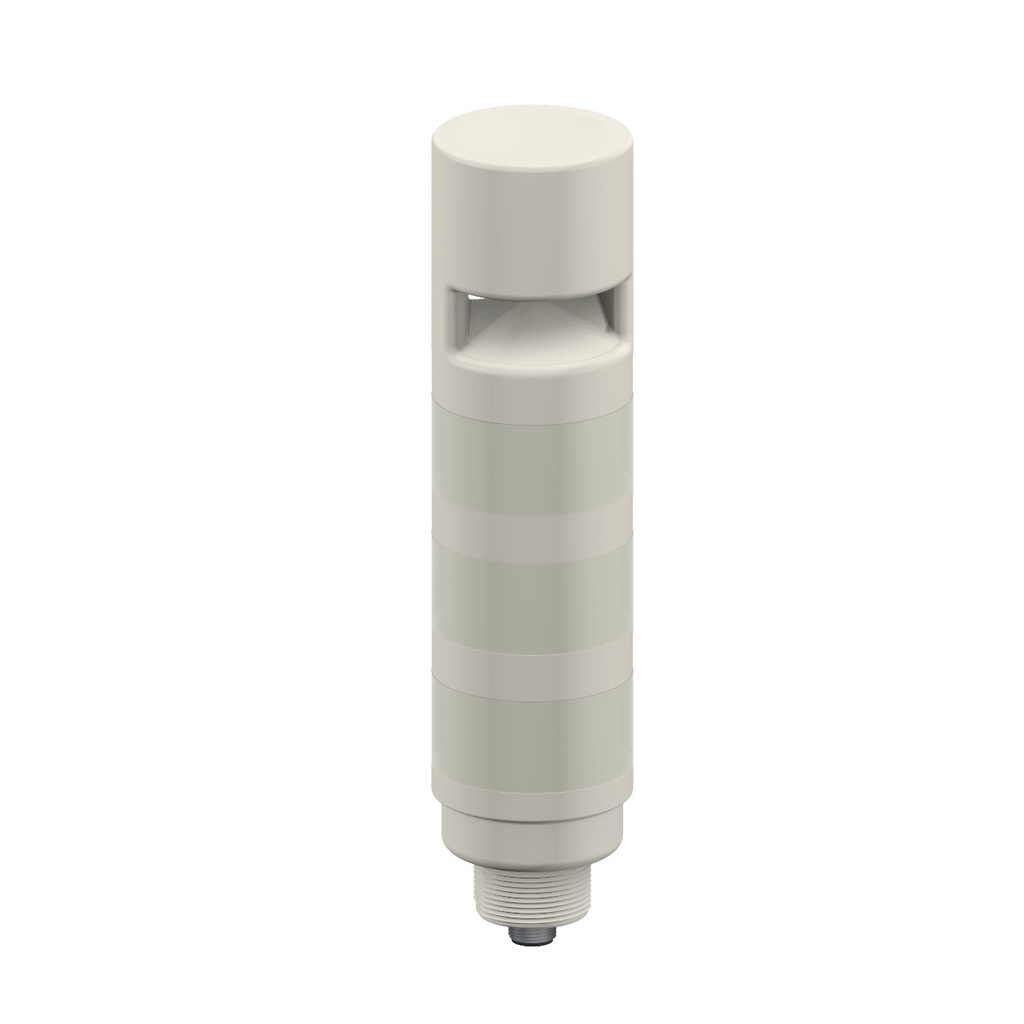

Tower Light IO-Link Series: Gray Housing (TL50GYRAOSKCQ)

Representative photo. Please check item description for details.

Tower Light IO-Link Series: Gray Housing (TL50GYRAOSKCQ)

Features:

Tower Light IO-Link Series: Gray Housing
3-Color Omnidirectional
Audible Indicator
Voltage: 12-30 V dc
Environmental Rating: IP67
Colors: Green Yellow Red
Euro 4-pin Integral Connector

Power: DC

Feature: Display: No
Max Current Color: 70 mA
Max Current - Audible Alarm (mA): 70 mA
Min Operating Temperature: -20 °C
Max Operating Temperature: 50 °C
Ingress Protection: IP67
Housing Style: Base Mount - Tower
Max Relative Humidity: 95% @ 50 °C (NC)
Housing Material_: ABS
Feature: IO Link: Yes
Feature: Indication: Yes
Color Option 3: Red
Max Audible Intensity: 99 dB @ 1 m
Supply Voltage: 12-30 VDC
Color Option 2: Yellow
Feature: Quick Disconnect: Yes
Lumens Color 1: 31
Animation Option 3: Programmable
Min Audible Intensity @ 1m: 99 dB
Color Technology: Standard LED
Feature: Audible: Yes
Color Option 1: Green
Animation Option 2: Programmable
Color 1 - Wavelength/Color Temp/Coordinates: 528 nm
Housing Color: Gray
Color Input Control: Communication Protocol
Multi-Color Device: Simultaneous Colors On
Animation Option 1: Programmable
Quick Disconnect Type: M12
Audible Operating Frequency (kHz): 2.1
Number of Colors / Segments: 3
Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
Lumens Color 2: 32
Lumens Color 3: 13
Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
Number of Input Pins/Conductors: 4
Input Type: Communication Protocol
Mounting Thread: M30 x 1.5
Max Input Response Time (ms): 10 ms
Audible Alarm Type: Continuous
Storage Temp: -40 to 70 °C
Number of Tower Light Segments: 4
Connection Type: Integral QD
NEMA / UL: NEMA/UL 13

$ 462.00 462.0 USD $ 462.00

$ 462.00

This combination does not exist.

Add to cart Buy now
