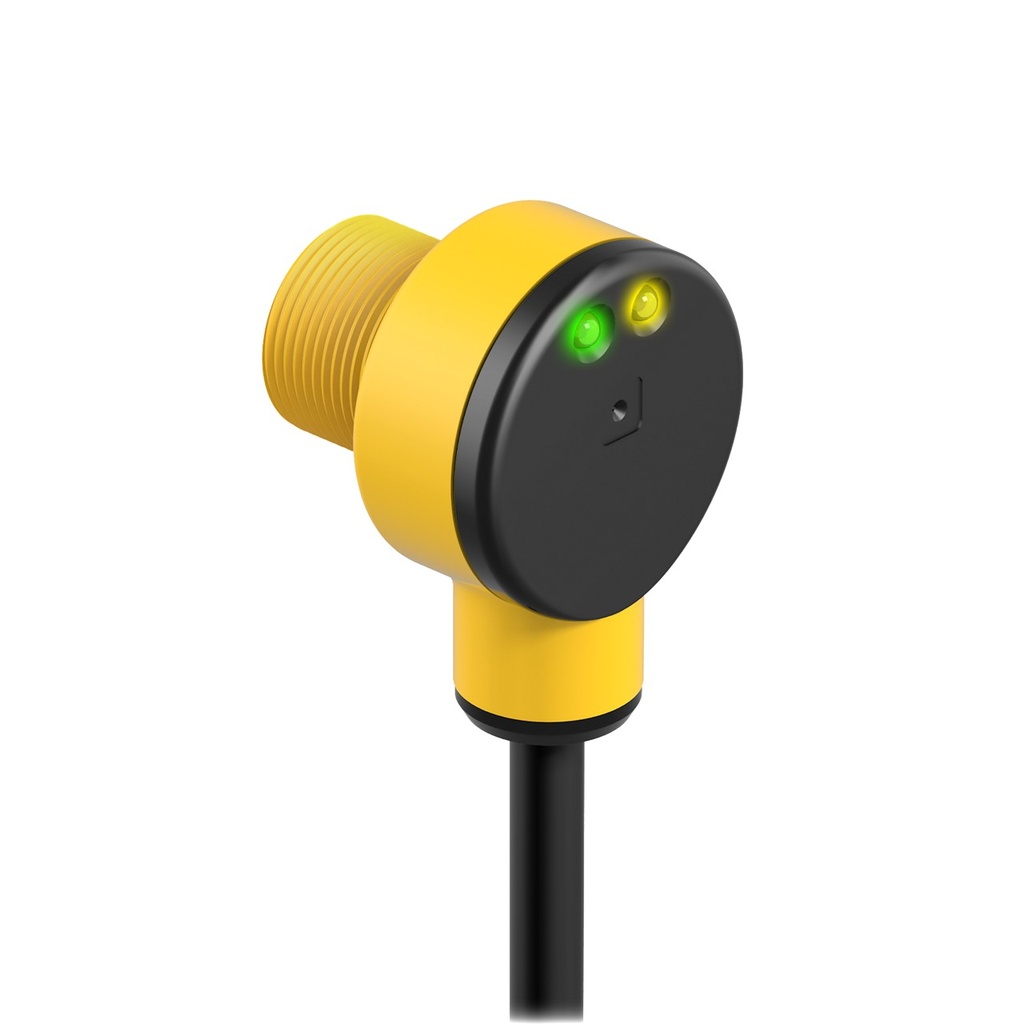

Representative photo. Please check item description for details.

4PIN EURO 6IN PUR (T18SP6RQPMA)

https://www.branom.com/web/image/product.template/47311/image_1920?unique=c26756c
(0 review)

Features:

  • T18SP6RQPMA 4PIN EURO 6IN PUR
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 375
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: Yes
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms ON/1.5 ms OFF
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail PUR QD
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 150 mm
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED

$ 113.00 113.0 USD $ 113.00

$ 113.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • T18SP6RQPMA 4PIN EURO 6IN PUR
    • Lens Material: Polycarbonate
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67/69
    • Repeatability (µs): 375
    • Sensing Beam: Infrared LED
    • Housing Style: Barrel
    • Max Sensing Distance: 20000 mm
    • Sensing Mode (Detailed): Receiver
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 90% @ 50 °C
    • Feature: Washdown Rated: Yes
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12 (Euro)
    • Feature: Chemical Resistant: Yes
    • Opposed Mode Emitter/Receiver: Receiver
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 3 ms ON/1.5 ms OFF
    • Operation: Light/Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: Yes
    • Barrel Diameter: 18
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection: Pigtail PUR QD
    • NEMA / UL: NEMA 6P
    • Cord/Cable Length: 150 mm
    • Feature: Health/Marginal Signal Output: Yes
    • Indicator Type: LED
