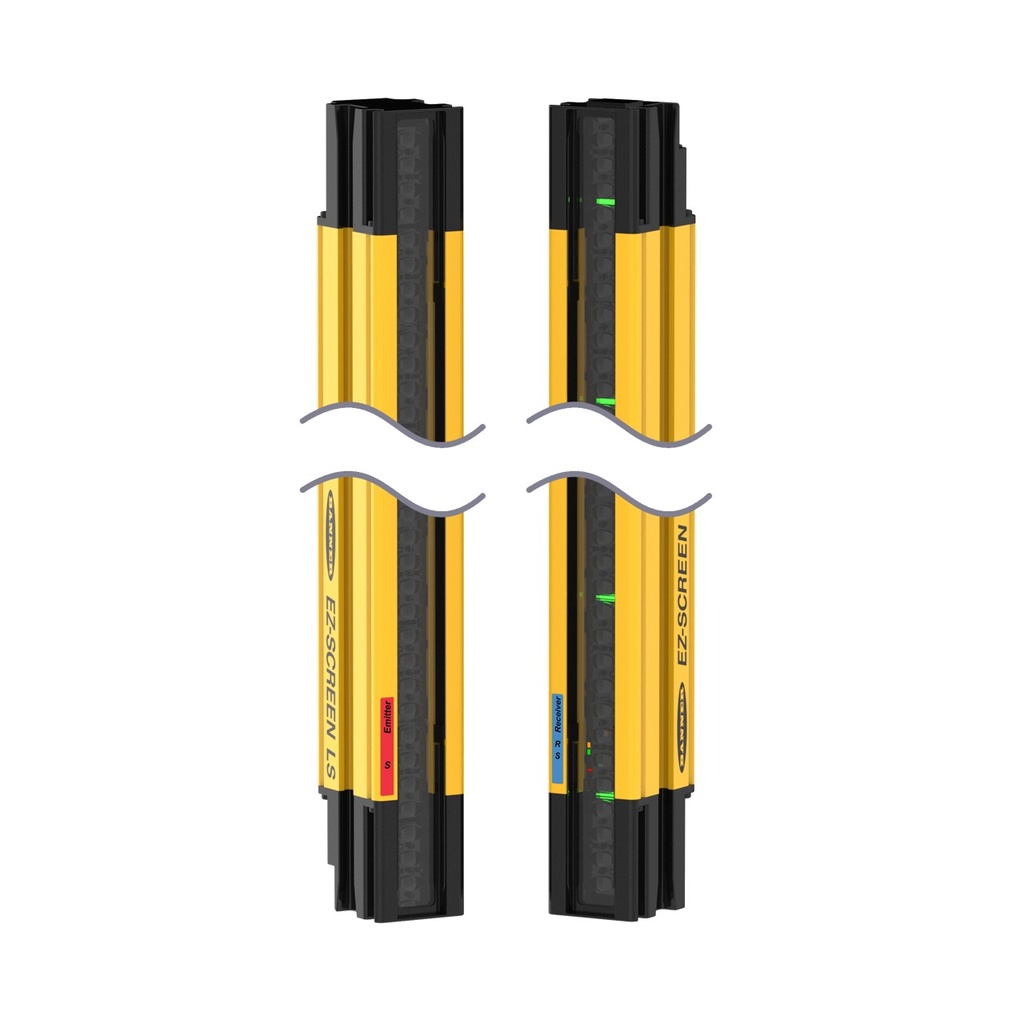

Representative photo. Please check item description for details.

EZ-SCREEN LS Cascade, Pair, SLLCP14-1610-B16

https://www.branom.com/web/image/product.template/47217/image_1920?unique=c26756c
(0 review)

Features:

  • Defined Area Height Range: > 1300 mm
  • Supply Current: 165 mA Typical
  • Min Operating Temperature: 0 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65/67
  • Housing Material_: Aluminum
  • Operating Voltage: 24 VDC +/- 15%
  • Physical Dimensions: 36 x 45 mm
  • Feature: Cascade: Yes
  • PL Rating: e
  • Vibration: 10-55 Hz at 0.35 mm
  • SIL Rating: SIL3; CL3
  • Recovery Time: 191 / 646 ms
  • Feature: ESD Safe: No
  • Feature: Test Input: No
  • OSSD Rating: 24 VDC @ 0.5 A each
  • System Type: Emitter/Receiver Pair
  • Operating Distance: 0.1 - 12 m
  • Response Time: 43.8 ms
  • Effective Aperture Angle: Type 4 Per IEC 61496-2
  • Feature: Reduced Resolution: No
  • Feature: End-to-End Sensing: No
  • Feature: Fault Output: Yes
  • Defined Area Height: 1610 mm
  • Feature: Auxiliary Output: No
  • Electrical Safety Class: III
  • Shock: 10g at 16ms (6000 cycles)
  • Feature: Short Protection: Yes
  • External Monitoring Device: 1 Channel
  • Feature: Fixed Blanking: Yes
  • Safety Level: Type 3
  • Feature: Integral Muting: No
  • Scan Code: Selectable
  • Trip/Latch Output: Trip
  • Housing Finish: Black Anodized
  • Max Operating Range: > 8 to <= 20 m
  • Connector Type: Removable Disconnect
  • Finish Material: Yellow Polyester

    • $ 5,224.00 5224.0 USD $ 5,224.00
