Wlb92 Work Light Bar (WLB92ZC1100ACT-803872)
Representative photo. Please check item description for details.

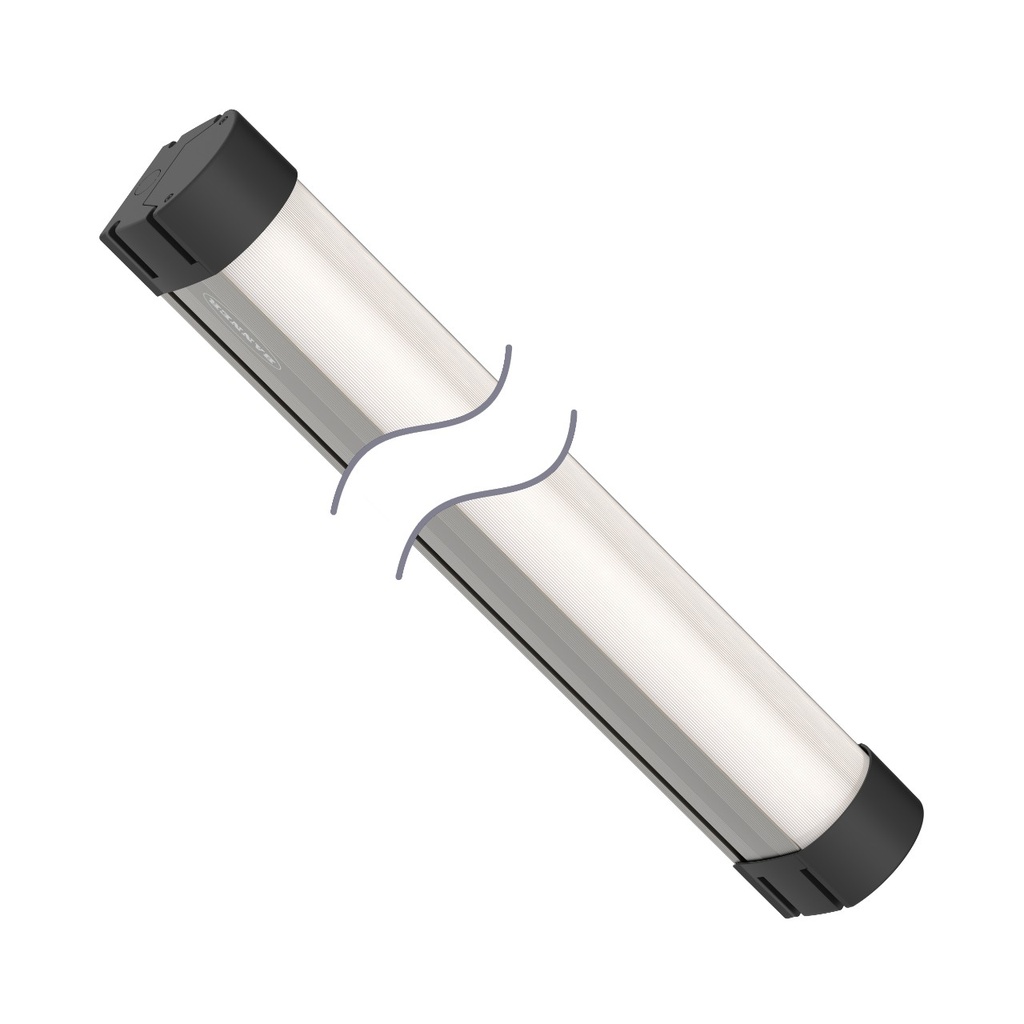

Wlb92 Work Light Bar (WLB92ZC1100ACT-803872)

https://www.branom.com/web/image/product.template/205639/image_1920?unique=c26756c
(0 review)

Features:

    WLB92 Work Light Bar; 0-10 V dc Analog Dimming; Length: 1100 mm; Voltage: 100-277 V ac; Environmental Rating: IP40; Color: White; Cascadable; Integral 277 V ac Locking plug power cord; Diffuse window, LMBWLB92 Bracket
    • Power: AC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 45 °C
  • Ingress Protection: IP40
  • Housing Style: Linear Strip
  • Housing Material_: Aluminum
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 1206.0 x 97.0 x 104.0 mm
  • Feature: Wireless: No
  • Supply Voltage: 100-277 VAC
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 7150
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Daylight White
  • Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Number of Colors / Segments: 1
  • Product Size (mm): 92 mm
  • Number of Input Pins/Conductors: 3
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: 0 to 10 VDC
  • Feature: Cascade: Yes
  • Illuminated Length (LxWxH): 1097.0 mm
  • Feature: Illumination: Yes
  • Connection Type: Pigtail QD
