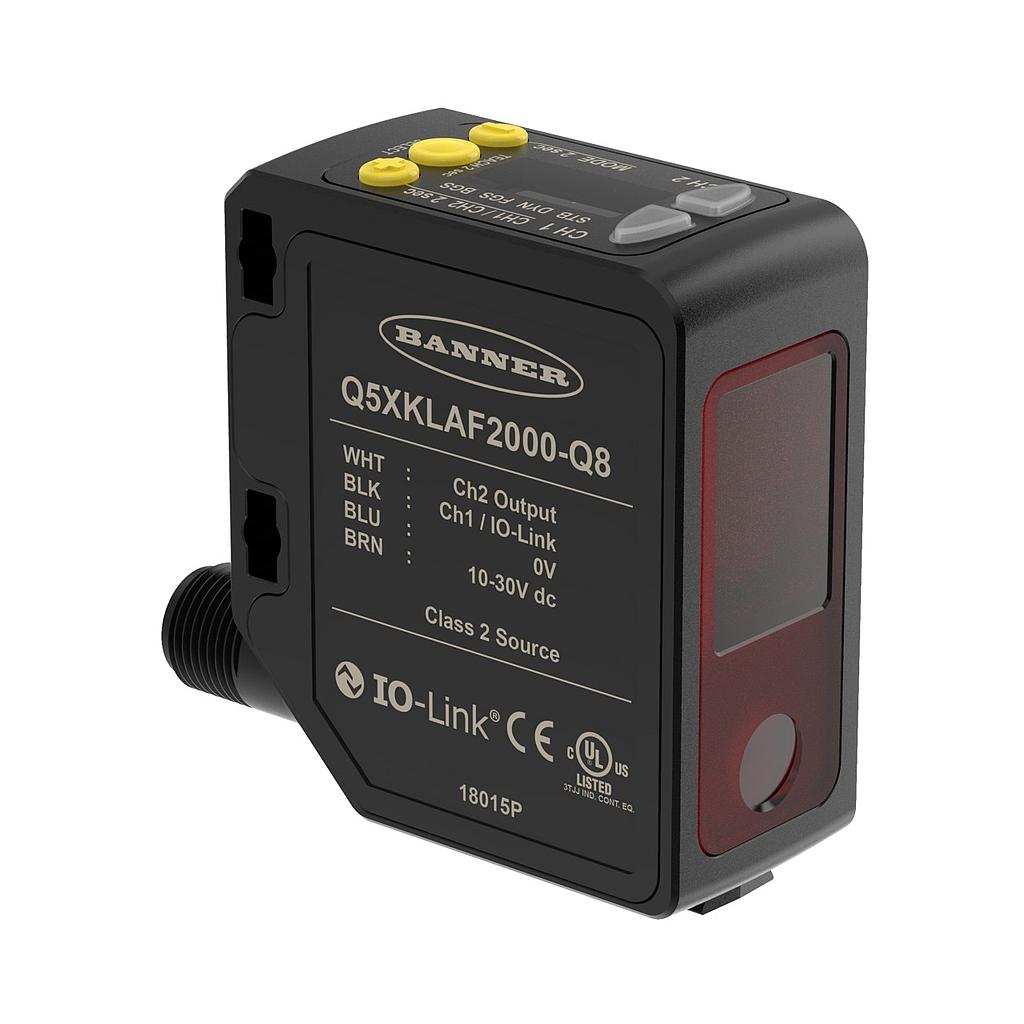

Q5X Series: Laser Adjustable Field (Q5XKLAF2000-Q8)

https://www.branom.com/web/image/product.template/46033/image_1920?unique=c26756c
(0 review)

Features:

  • Q5X Series: Laser Adjustable Field
  • Range: 95 to 2000 mm
  • Input 10-30 V dc
  • Output: 1 PNP/NPN with IO-Link
  • 1 PNP/NPN Multi-Function I/O
  • Connection: Euro M12 4-pin Rotatable Connector
    • Power: DC
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background/Foreground Suppression
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS
  • Laser Classification: Class 2
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 3 ms
  • Min Sensing Distance: 95 mm
  • Feature: Clear Object Detection: Yes
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Integral QD
  • Feature: Pump-In/Pump-Out: Yes
  • Feature: Laser Control: Yes
  • Feature: PFM Output: Yes
  • Max Ambient Light: ≤ 5000 lux @ 1000 mm / ≤ 2000 lux @ 2000 mm

$ 440.00 440.0 USD $ 440.00

$ 440.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Q5X Series: Laser Adjustable Field
    • Range: 95 to 2000 mm
    • Input 10-30 V dc
    • Output: 1 PNP/NPN with IO-Link
    • 1 PNP/NPN Multi-Function I/O
    • Connection: Euro M12 4-pin Rotatable Connector
      • Power: DC
    • Min Operating Temperature: -10 °C
    • Max Operating Temperature: 50 °C
    • Power Supply: 10-30 VDC
    • Ingress Protection: IP67
    • Sensing Beam: Visible Red Laser
    • Housing Style: Rectangular
    • Max Sensing Distance: 2000 mm
    • Sensing Mode (Detailed): Background/Foreground Suppression
    • Sensing Mode (General): Proximity
    • Device Type: Sensor
    • Housing Material_: ABS
    • Laser Classification: Class 2
    • Feature: IO Link: Yes
    • Feature: Quick Disconnect: Yes
    • Quick Disconnect Type: M12
    • Number of Pins: 4
    • Adjustments: Push Button; Remote Teach
    • Feature: Timing (Hold/Delay): Yes
    • Input/Output: Discrete
    • Min Response Time: 3 ms
    • Min Sensing Distance: 95 mm
    • Feature: Clear Object Detection: Yes
    • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
    • Feature: Remote Teach: Yes
    • Connection Type: Integral QD
    • Feature: Pump-In/Pump-Out: Yes
    • Feature: Laser Control: Yes
    • Feature: PFM Output: Yes
    • Max Ambient Light: ≤ 5000 lux @ 1000 mm / ≤ 2000 lux @ 2000 mm
