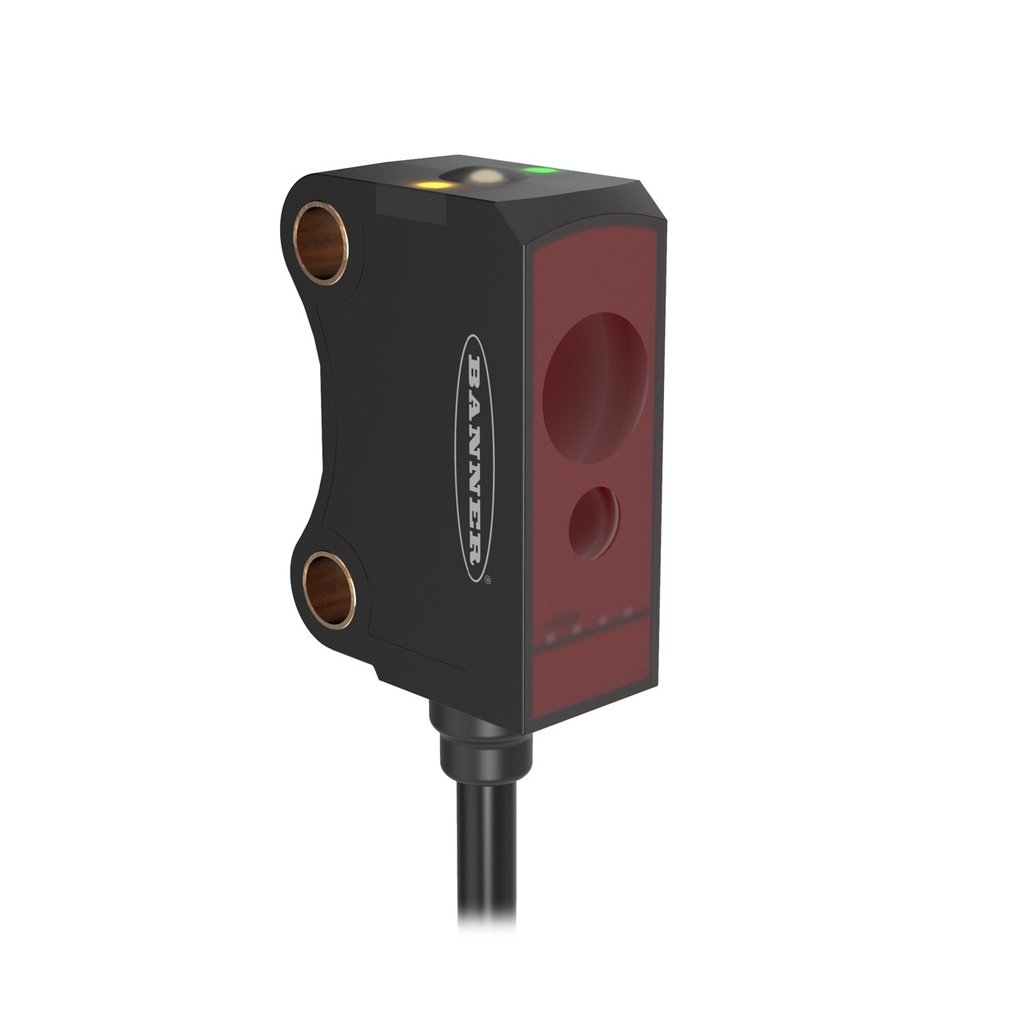

VS8 Series: Laser Receiver (VS8EAPR)

https://www.branom.com/web/image/product.template/45924/image_1920?unique=c26756c
(0 review)

Features:

  • VS8 Series: Laser Receiver
  • Range: 3 m
  • Input: 10-30 V dc
  • Output: PNP
  • 4-conductor 2 m Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Housing Material_: PUR
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
