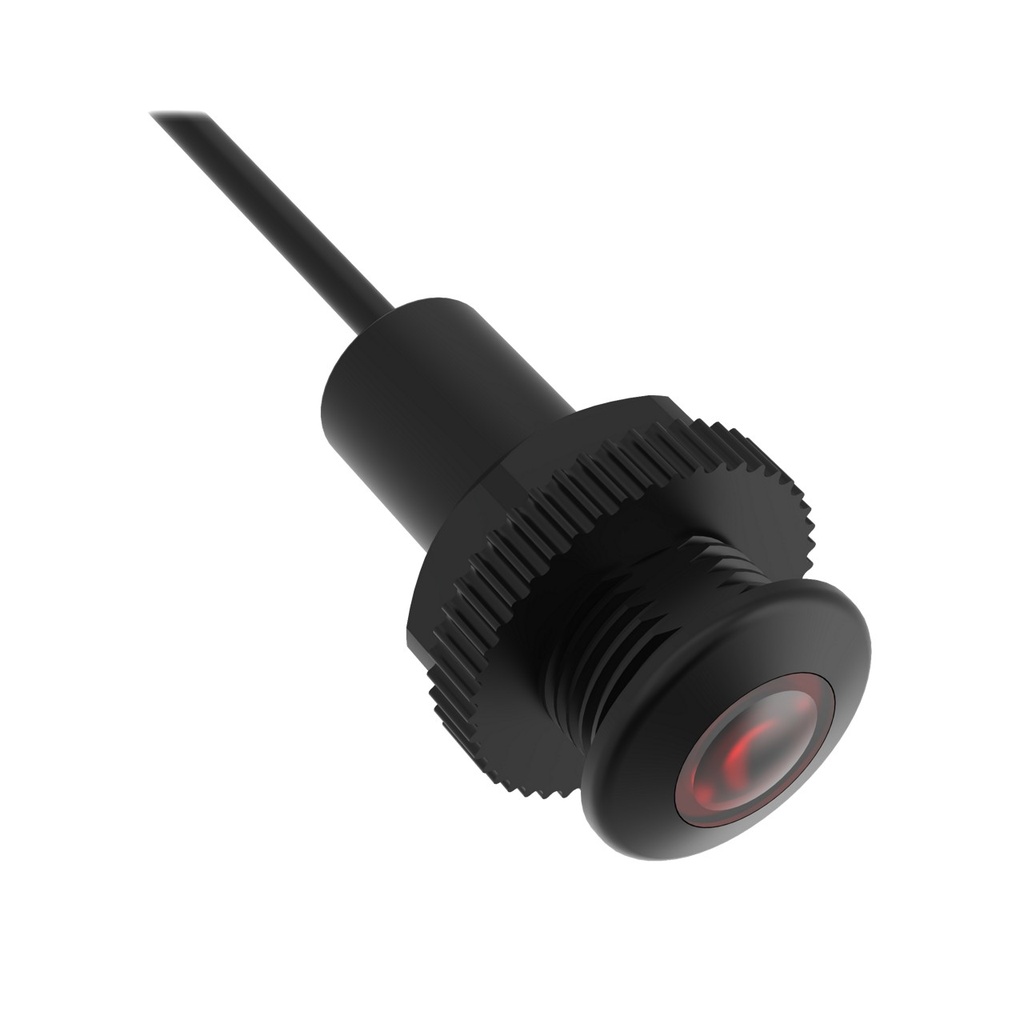

SB12 Threaded Series Receiver (SB12TRPRQ7)

https://www.branom.com/web/image/product.template/45907/image_1920?unique=c26756c
(0 review)

Features:

  • SB12 Threaded Series Receiver
  • Range: 1.5 m
  • Input Voltage: 10-30 V dc
  • Outputs: D.O. PNP
  • 6 in pigtail 4 pin Pico connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 350
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 1500 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8 (Pico)
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2.5 ms ON/1.75 ms OFF
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 12
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • Indicator Type: LED
