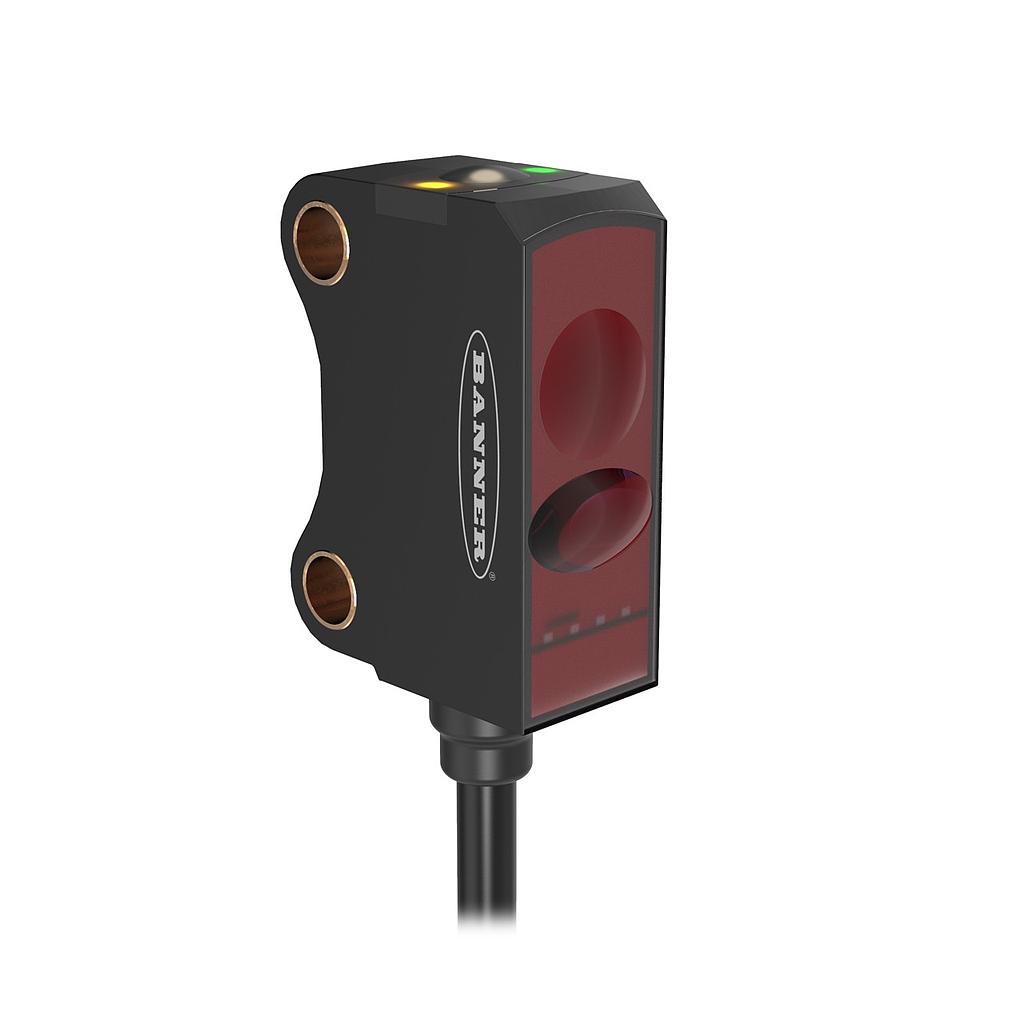

VS8 Series: Fixed Field (VS8ANFF15Q3)

https://www.branom.com/web/image/product.template/45901/image_1920?unique=c26756c
(0 review)

Features:

  • VS8 Series: Fixed Field
  • Range: 2 mm to 15 mm
  • Input: 10-30 V dc
  • Output: NPN
  • Pico M8 3-pin 200 mm Pigtail
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular
  • Max Sensing Distance: 15 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Housing Material_: PUR
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 0.5 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • Indicator Type: LED

$ 194.00 194.0 USD $ 194.00
