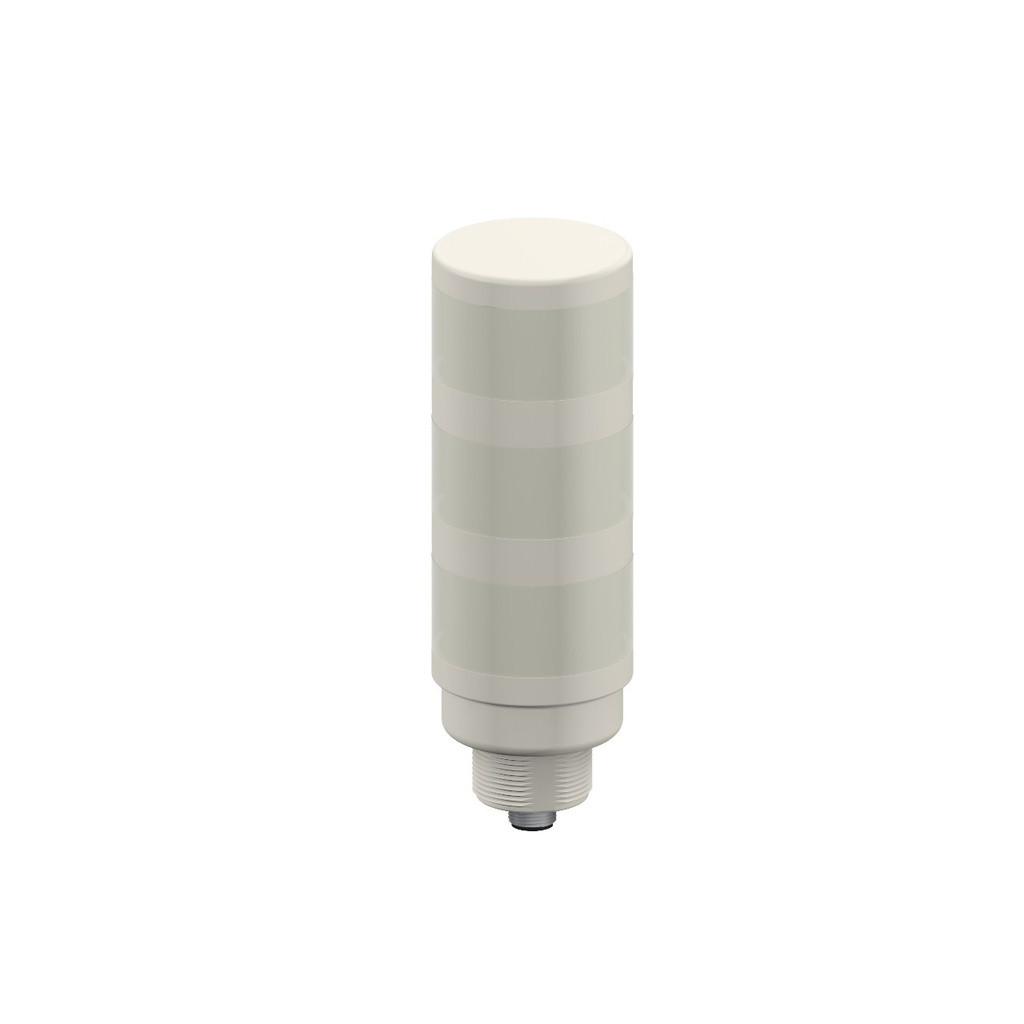

Tower Light (TL50ROGCQ)

https://www.branom.com/web/image/product.template/45852/image_1920?unique=c26756c
(0 review)

Features:

  • Tower Light
  • Gray Housing: 3-Color Indicator
  • Voltage: 18-30 V dc or 24 V ac
  • Environmental Rating: IP67
  • Input: Bimodal
  • Colors: Red Orange Green
  • Euro 4-pin Integral Connector
    • Power: AC or DC
  • Feature: Display: No
  • Max Current Color: 45 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Color Option 3: Green
  • Supply Voltage: 18-30 VDC/24 VAC
  • Color Option 2: Orange
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 7.5
  • Animation Option 3: Solid On
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Animation Option 2: Solid On
  • Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
  • Housing Color: Gray
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 528 nm
  • Lumens Color 2: 15.5
  • Lumens Color 3: 23
  • Color 2 - Wavelength/Color Temp/Coordinates: 608 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: Bimodal (PNP/NPN)
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 10 ms
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 3
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13
