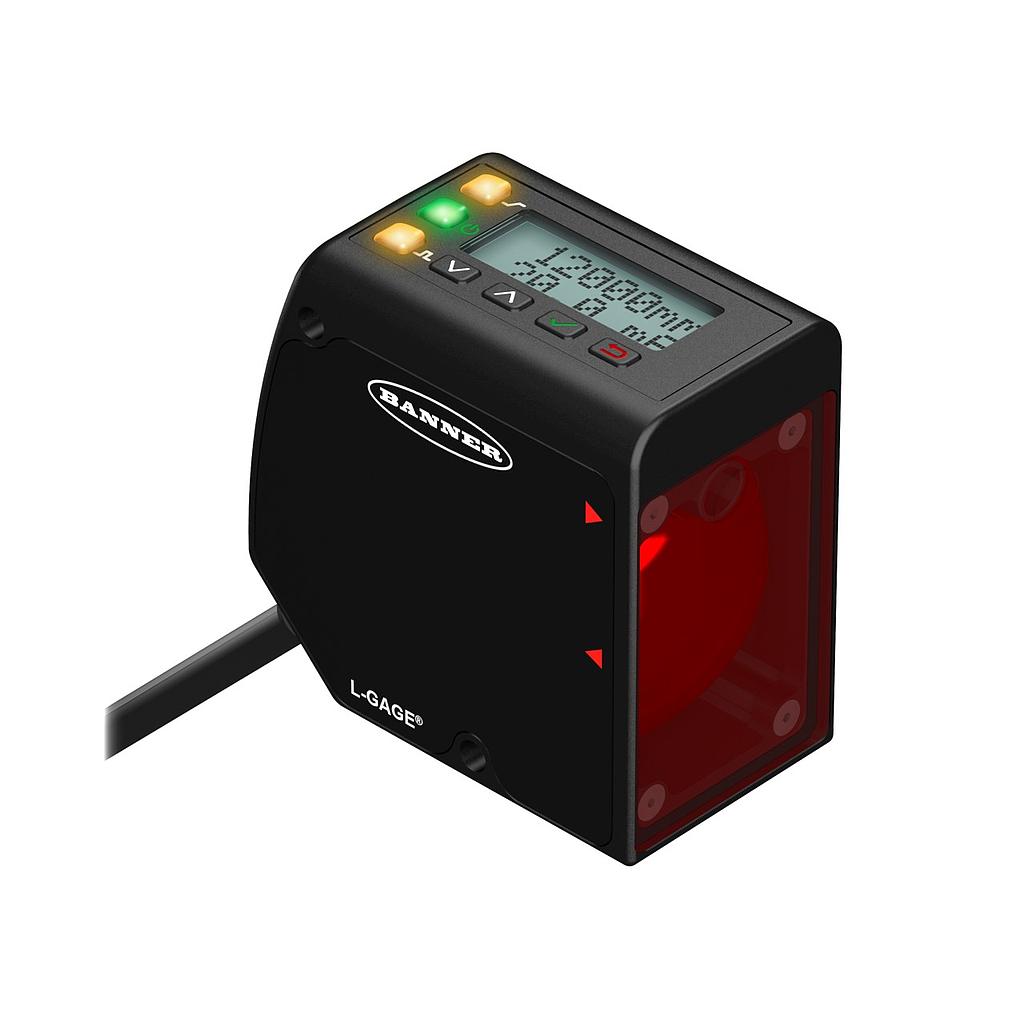

Laser Diffuse Time-of-Flight Sensor (LTF24KC2LDQP)

https://www.branom.com/web/image/product.template/45782/image_1920?unique=c26756c
(0 review)

Features:

  • Laser Diffuse Time-of-Flight Sensor
  • Range: 50-24000 mm
  • Input:12-30 V dc
  • Output 1: NPN/PNP configurable
  • IO-Link
  • Output 2: NPN/PNP configurable
  • Class 2 Laser
  • Pigtail Quick-Disconnect
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 24000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Zinc Alloy Die-Cast
  • Laser Classification: Class 2
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 1.5 ms
  • Min Sensing Distance: 50 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Feature: Pump-In/Pump-Out: Yes
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Feature: PFM Output: Yes
  • Max Ambient Light: 40000 lux
