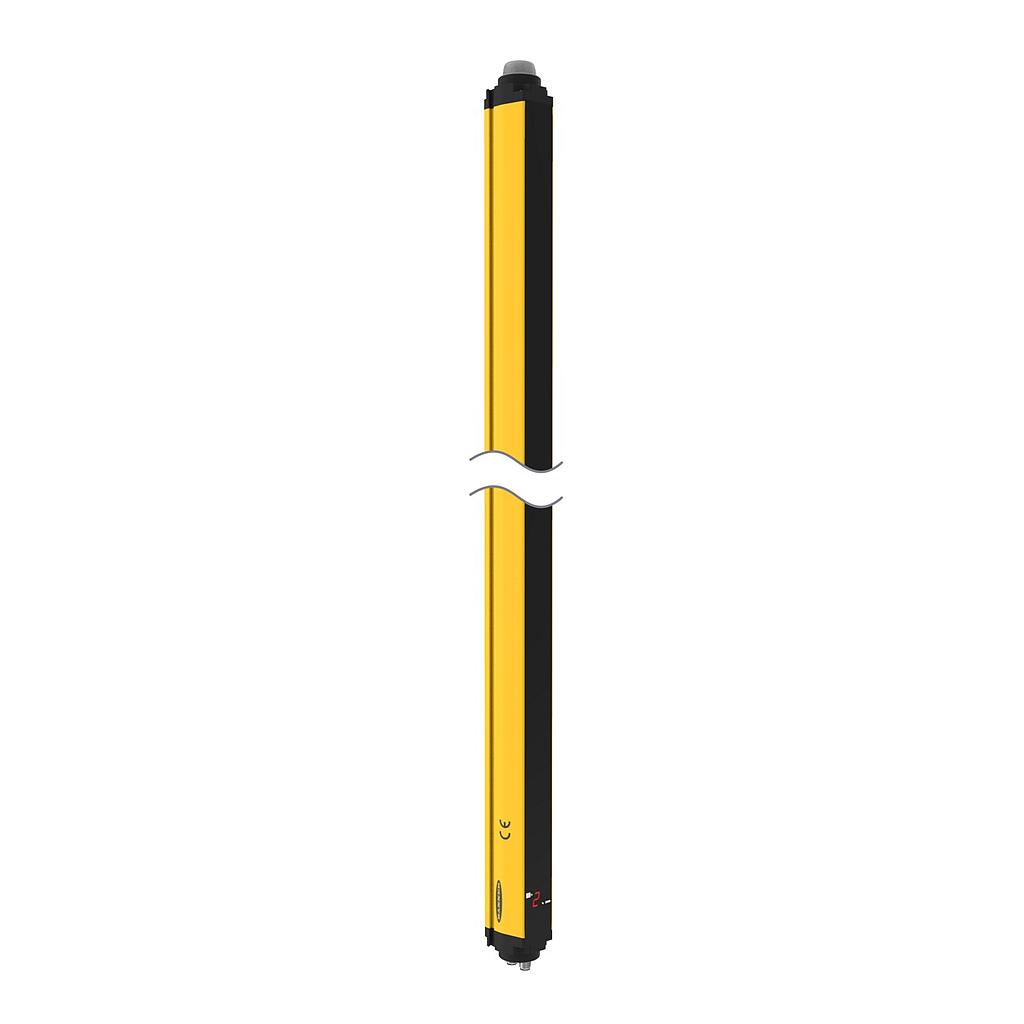

Representative photo. Please check item description for details.

SGS Safety Grid System, Active Tranceiver (SGSMA4-300Q12)

https://www.branom.com/web/image/product.template/45760/image_1920?unique=c26756c
(0 review)

Features:

  • SGS Safety Grid System, Active Tranceiver
  • Beams: 4
  • Resolution: 300 mm
  • Range: 0.5 to 6.5 m
  • Connection: M12 12-pin QD
  • M12 5-pin QD
  • Auto/Manual Start/Restart, EDM, Integral Muting
  • Mounting Hardware Ordered Separately
  • Supply Current: 500 mA
  • Min Operating Temperature: 0 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Material_: Aluminum/Acrylic
  • Operating Voltage: 24 VDC +/- 20%
  • Physical Dimensions: 52 x 56.9 mm
  • PL Rating: Ple
  • Vibration: 10-55 Hz at 0.35 mm
  • Recovery Time: N/A
  • Feature: ESD Safe: No
  • OSSD Rating: 24 VDC @ 0.5 A/ea.
  • Overall Length: 1006.35 mm
  • System Type: Transceiver - Active
  • Operating Distance: 0.5 - 6.5 m
  • Effective Aperture Angle: Type 4
  • Feature: Reduced Resolution: No
  • Feature: End-to-End Sensing: Yes
  • Number of Pins (Receiver/Emitter): 12
  • Defined Area Height: 900 mm
  • Electrical Safety Class: III
  • Feature: Short Protection: Yes
  • External Monitoring Device: 1 Channel
  • Feature: Fixed Blanking: No
  • Scan Code: None
  • Trip/Latch Output: Selectable
  • Finish Material: Yellow Polyester
  • Short Protection: Yes

$ 1,333.00 1333.0 USD $ 1,333.00

$ 1,333.00

Not Available For Sale
