Description
Features:

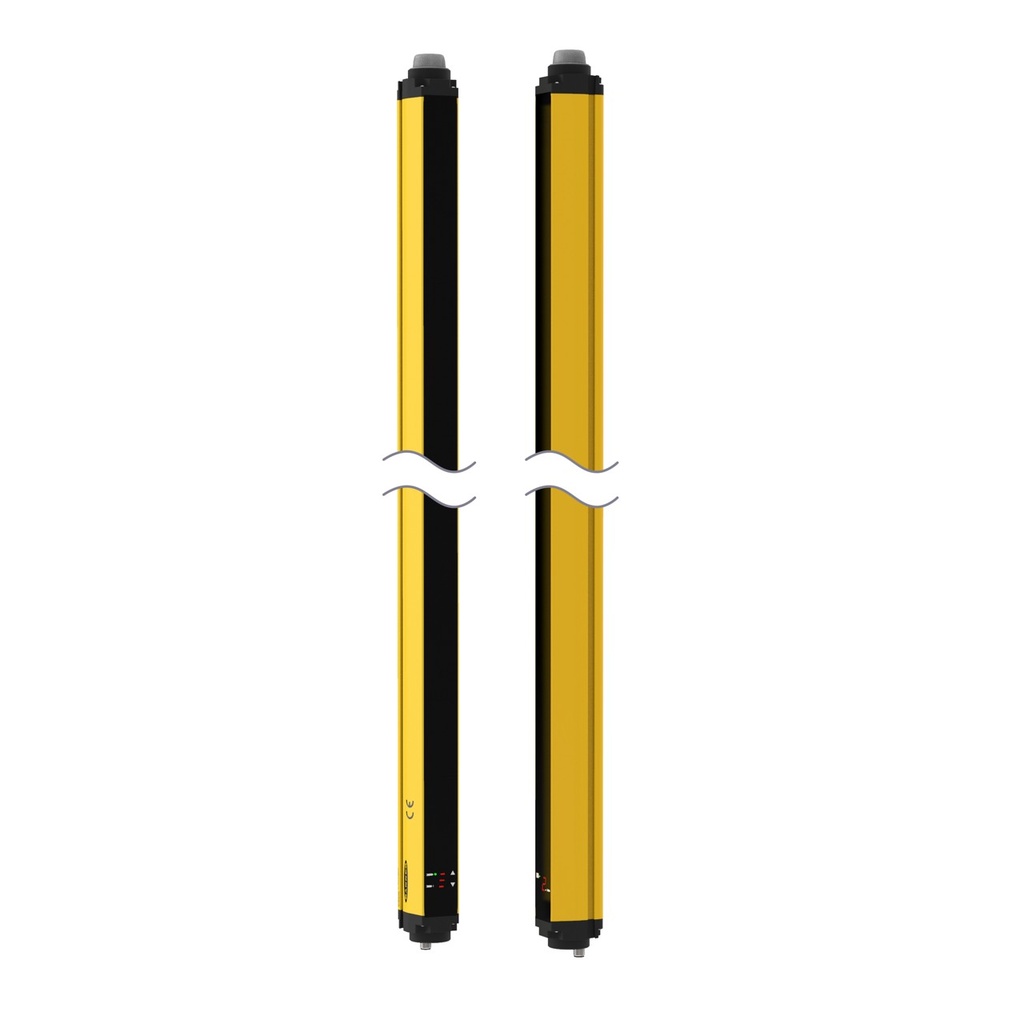

- SGS Safety Grid System, Emitter/Receiver Pair
- Beams: 3
- Resolution: 400 mm
- Range: 0.5 to 30 m
- Connection: M12 8-pin QD
- Scan Codes, Auto/Manual Start/Restart, EDM
- Mounting Hardware Ordered Separately
- Supply Current: 500 mA
- Min Operating Temperature: 0 °C
- Max Operating Temperature: 55 °C
- Ingress Protection: IP65
- Housing Material_: Aluminum/Acrylic
- Operating Voltage: 24 VDC +/- 20%
- Physical Dimensions: 52 x 56.9 mm
- PL Rating: Ple
- Vibration: 10-55 Hz at 0.35 mm
- Recovery Time: N/A
- Feature: ESD Safe: No
- OSSD Rating: 24 VDC @ 0.5 A/ea.
- Overall Length: 906.35 mm
- System Type: Emitter/Receiver Pair
- Operating Distance: 0.5 - 30 m
- Effective Aperture Angle: Type 4
- Feature: Reduced Resolution: No
- Feature: End-to-End Sensing: Yes
- Number of Pins (Receiver/Emitter): 8,8
- Defined Area Height: 800 mm
- Electrical Safety Class: III
- Feature: Short Protection: Yes
- External Monitoring Device: 1 Channel
- Feature: Fixed Blanking: No
- Scan Code: Selectable
- Trip/Latch Output: Selectable
- Finish Material: Yellow Polyester
- Short Protection: Yes
