World-Beam Qs18 Series: 6 Beam Sensor Array Diffuse (QS18D-803056)

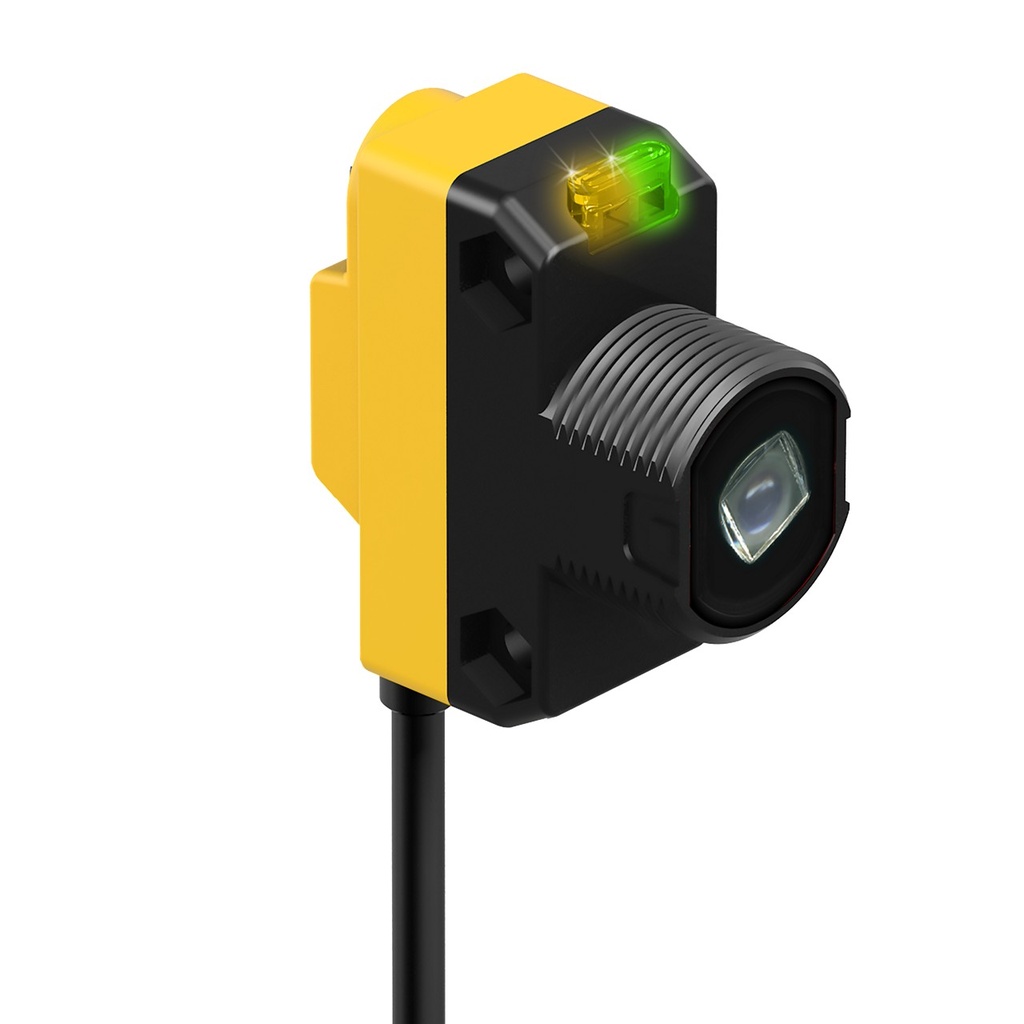

Representative photo. Please check item description for details.

World-Beam Qs18 Series: 6 Beam Sensor Array Diffuse (QS18D-803056)

https://www.branom.com/web/image/product.template/204469/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: 6 Beam Sensor Array Diffuse; Range: 200mm; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Light Operate; 6 in Pigtail EURO-Style Quick-Disconnect Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP50
  • Sensing Beam: Infrared LED
  • Housing Style: Sensing Array Bar
  • Max Sensing Distance: 200 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Beam Spacing: 82.5 mm
  • Max Relative Humidity: 95% @ 50 °C
  • Number of Beams: 6
  • Housing Material_: Black Anodized Aluminum
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Distance to First Beam: 38.1 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.2 m
  • Indicator Type: Indicator LED
  • Slot Depth/Array Length (mm): 475 mm
  • Slot Overall Depth (mm): 38 mm

$ 641.00 641.0 USD $ 641.00

$ 641.00

Not Available For Sale

    This combination does not exist.

    Contact Us
