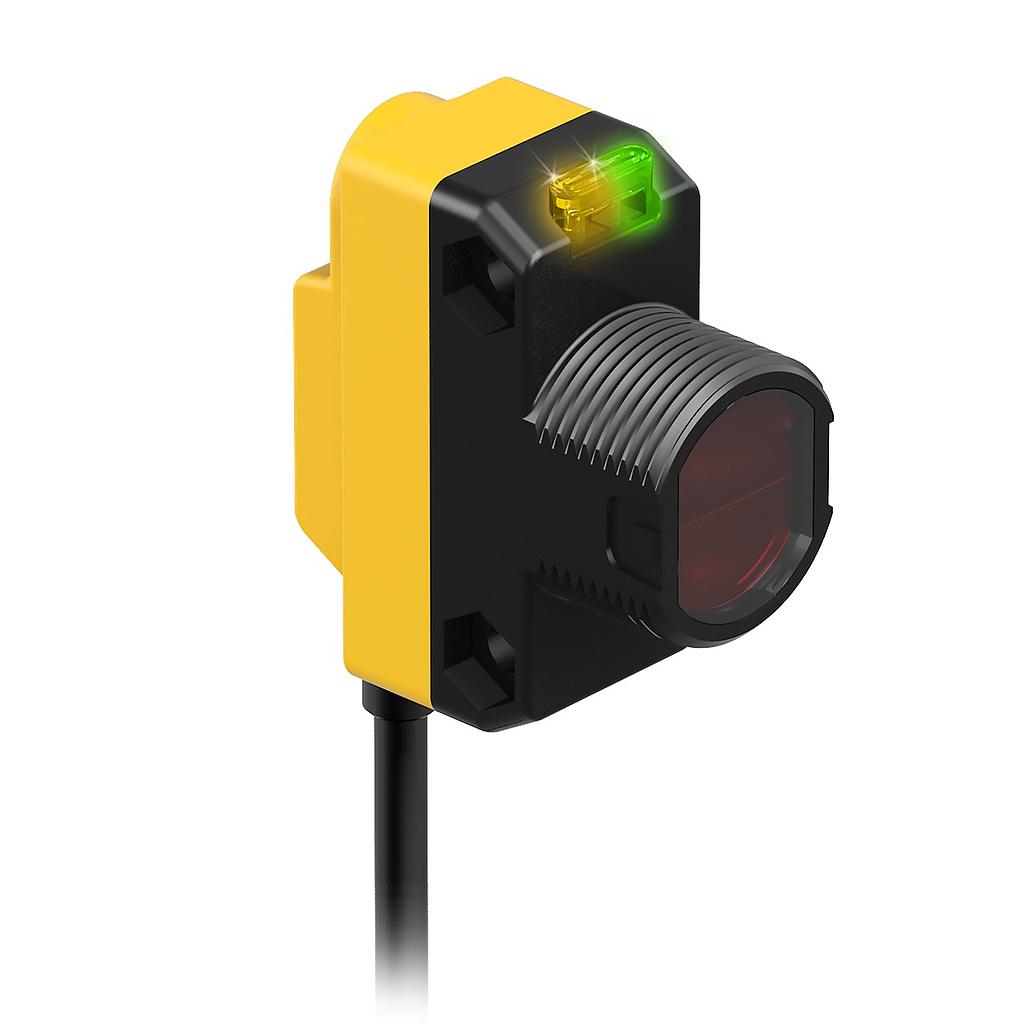

WORLD-BEAM QS18 Expert Series: Polar Retro (QS18EK6LPQ)

https://www.branom.com/web/image/product.template/45505/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Expert Series: Polar Retro
  • Range: 3.5 m
  • Input: 10 to 30 V dc
  • Output 1: Push/Pull with IO-Link
  • Output 2: Configurable PNP/NPN
  • 6 inch Pigtail M8 Pico-Style Quick-Disconnect
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 640
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3500 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.6 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete & Serial
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED
