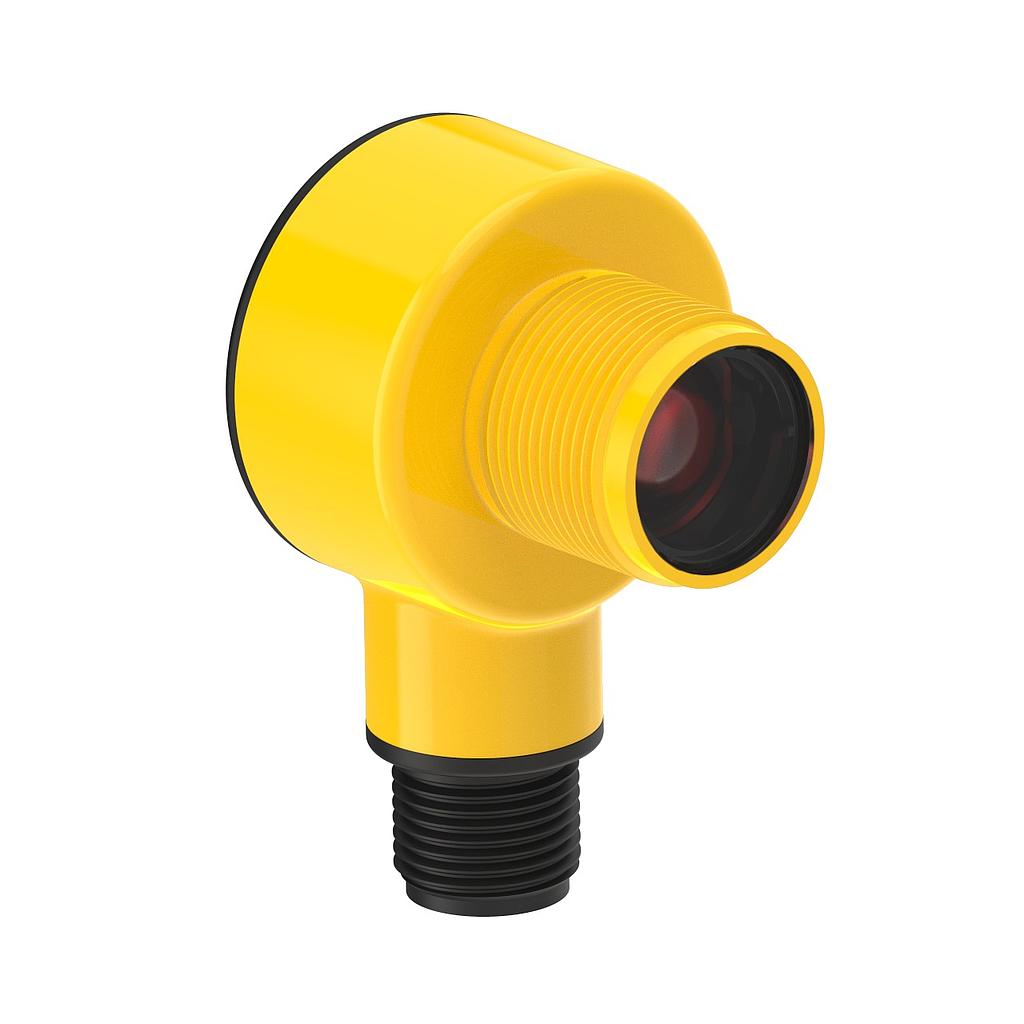

T18-2 Series: IR Fixed Field (T18-2VPFF100IR-Q8)

https://www.branom.com/web/image/product.template/45429/image_1920?unique=c26756c
(0 review)

Features:

  • T18-2 Series: IR Fixed Field
  • Range: 100 mm
  • Input: 10-30 V dc
  • Outputs: Complementary PNP
  • Connection: Euro M12 4-pin Integral Connector
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Ingress Protection: IP67/68/69
  • Repeatability (µs): 100
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 870
  • Housing Style: Barrel
  • Max Sensing Distance: 100 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: Yes
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: Indicator LED

$ 125.00 125.0 USD $ 125.00

$ 125.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • T18-2 Series: IR Fixed Field
    • Range: 100 mm
    • Input: 10-30 V dc
    • Outputs: Complementary PNP
    • Connection: Euro M12 4-pin Integral Connector
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 500 ms
    • Ingress Protection: IP67/68/69
    • Repeatability (µs): 100
    • Sensing Beam: Infrared LED
    • Sensing Beam Wavelength: 870
    • Housing Style: Barrel
    • Max Sensing Distance: 100 mm
    • Sensing Mode (Detailed): Background Suppression (Fixed)
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Washdown Rated: Yes
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: Yes
    • Feature: Ecolab Certified: Yes
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 1.5 ms
    • Operation: Light/Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Small Visible Spot: LED
    • Feature: Encapsulated: Yes
    • Input/Output: Discrete
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6P
    • Indicator Type: Indicator LED
