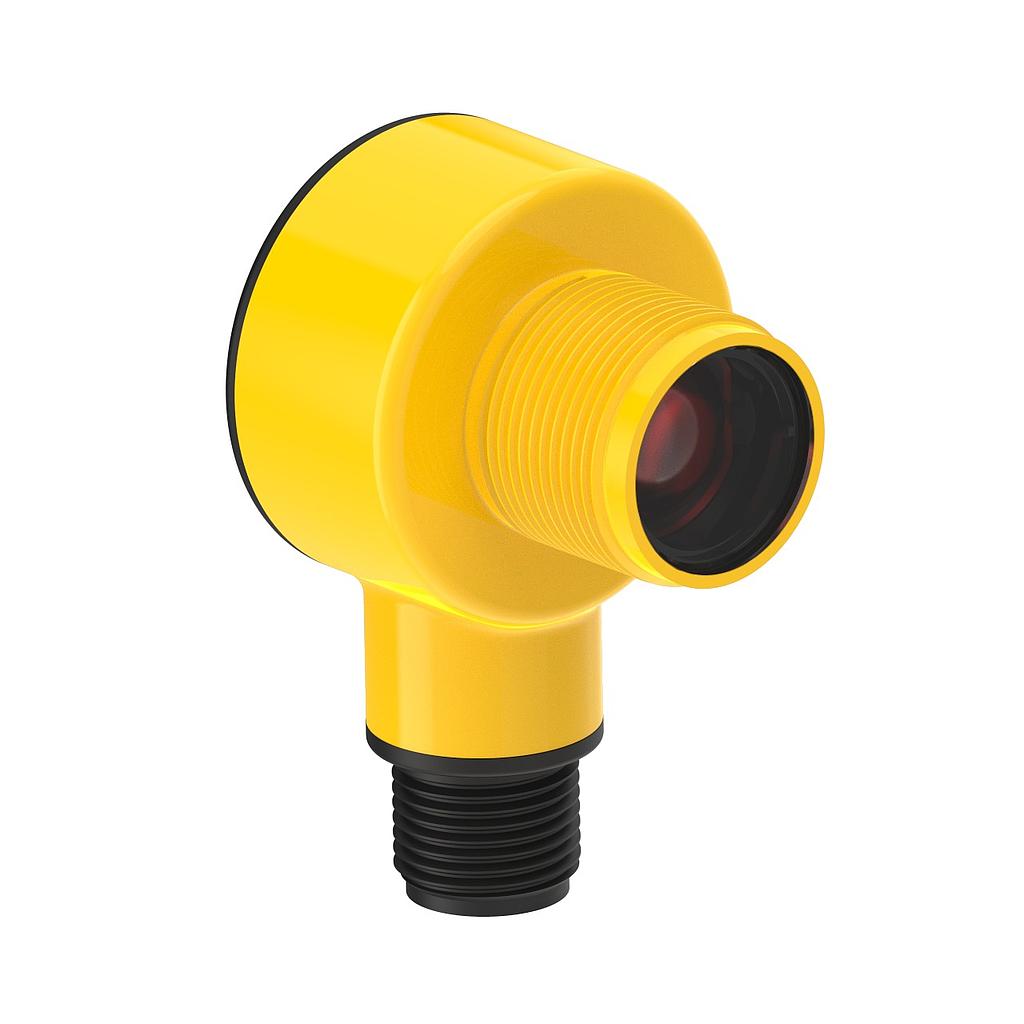

T18-2 Series: Receiver (T18-2VPRL-Q8)

https://www.branom.com/web/image/product.template/45330/image_1920?unique=c26756c
(0 review)

Features:

  • T18-2 Series: Receiver
  • Range: 25 m
  • Input: 10-30 V dc
  • Outputs: Complementary PNP
  • Connection: Euro M12 4-pin Integral Connector
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Ingress Protection: IP67/68/69
  • Repeatability (µs): 170
  • Sensing Beam: Visible Red or IR
  • Sensing Beam Wavelength: 624
  • Housing Style: Barrel
  • Max Sensing Distance: 25000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: Yes
  • Feature: Ecolab Certified: Yes
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: Indicator LED

$ 79.00 79.0 USD $ 79.00

$ 79.00

Not Available For Sale

    This combination does not exist.
